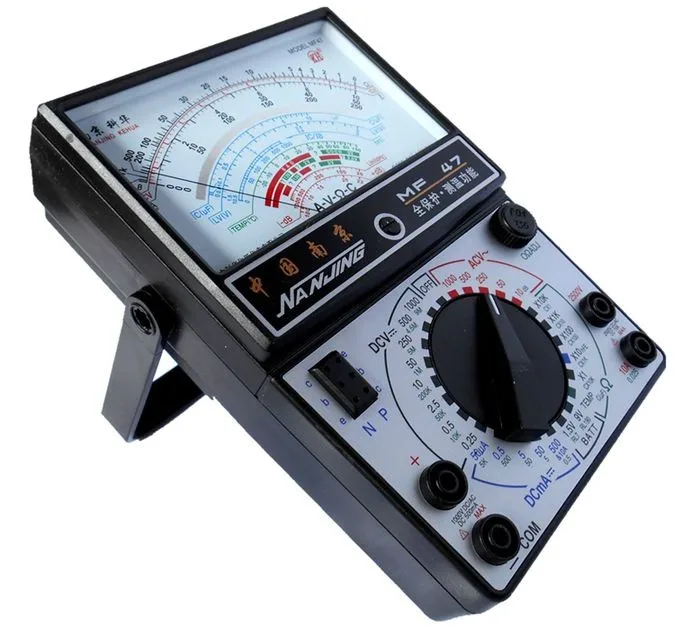

Analog Multimeter MF47A
Analog Multimeter MF47A
₨2,125
Availability: Out of stock
Analog Multimeter MF47A
Function range precision
Dca 0.05ma – 0.5ma – 5ma – 50ma – 500ma ± 2.5%
5a ± 5%
Dcv 0.25v – 1v – 2.5v – 10v – 50v – 250v – 500v
– 1000v – 2500v ± 2.5%
Acv 10v – 50v – 250v – 500v – 1000v – 2500v ± 5%
Resistance x1ω x10ω x100ω x1kω x10kω ± 10%
Transistor check
Sensitivity
Acv 9kω/ v dcv 20kω/ v 250vup 9kω/ v
Dimension 165x112x49mm
Weight ≤800g(without battery )
Dca 0.05ma – 0.5ma – 5ma – 50ma – 500ma ± 2.5%
5a ± 5%
Dcv 0.25v – 1v – 2.5v – 10v – 50v – 250v – 500v
– 1000v – 2500v ± 2.5%
Acv 10v – 50v – 250v – 500v – 1000v – 2500v ± 5%
Resistance x1ω x10ω x100ω x1kω x10kω ± 10%
Transistor check
Sensitivity
Acv 9kω/ v dcv 20kω/ v 250vup 9kω/ v
Dimension 165x112x49mm
Weight ≤800g(without battery )
| Weight | 0.3 kg |
|---|
Specifications
Function range precision
Dca 0.05ma – 0.5ma – 5ma – 50ma – 500ma ± 2.5%
5a ± 5%
Dcv 0.25v – 1v – 2.5v – 10v – 50v – 250v – 500v
– 1000v – 2500v ± 2.5%
Acv 10v – 50v – 250v – 500v – 1000v – 2500v ± 5%
Resistance x1ω x10ω x100ω x1kω x10kω ± 10%
Transistor check
Sensitivity
Acv 9kω/ v dcv 20kω/ v 250vup 9kω/ v
Dimension 165x112x49mm
Weight ≤800g(without battery )
Dca 0.05ma – 0.5ma – 5ma – 50ma – 500ma ± 2.5%
5a ± 5%
Dcv 0.25v – 1v – 2.5v – 10v – 50v – 250v – 500v
– 1000v – 2500v ± 2.5%
Acv 10v – 50v – 250v – 500v – 1000v – 2500v ± 5%
Resistance x1ω x10ω x100ω x1kω x10kω ± 10%
Transistor check
Sensitivity
Acv 9kω/ v dcv 20kω/ v 250vup 9kω/ v
Dimension 165x112x49mm
Weight ≤800g(without battery )
Features
MF-47 type multimeter day, fully functional for appliance repair technicians dedicated. TFB ultra-stable accurate header.
DC Current: 0.05mA /0.5mA / 5mA / 50mA / 500mA /10A
DC voltage: 0.25V /0.5V/2.5V/ 10V / 50V / 250V / 500V / 1000V ± 2.5%
AC voltage: 10V / 50V / 250V / 500V / 1000V ± 5%
DC Resistance: × 1Ω × 10Ω × 100Ω × 1kΩ × 10kΩ
Beep path: test circuit resistance ≤10Ω, buzzer.
Battery power: 0 ~ 3.6V battery, green bar position indicates full charge.
Infrared remote control data detection

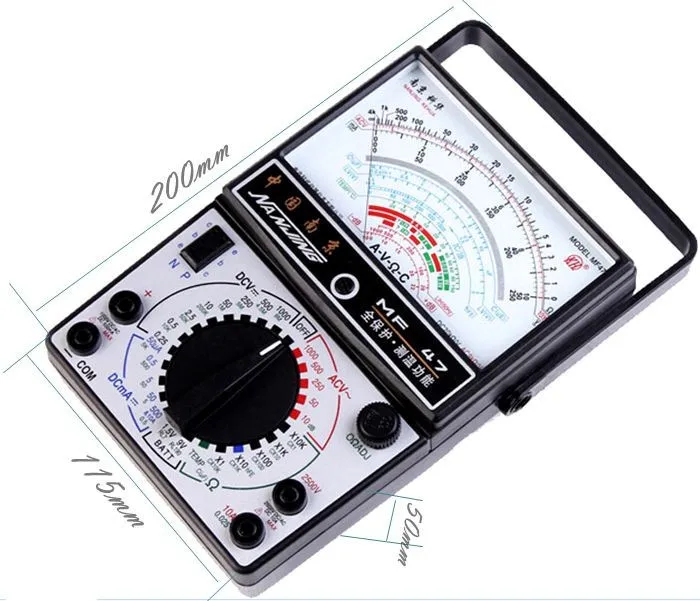

Size: 200 × 115 × 50mm
