Name: DMC-100 DC AC Current Voltage Clamp Meter Digital - Variety House
Brand: DC AC Current Voltage Clamp

Highlights

High-Precision and Wide-Range Measurement: Offers 10,000-count True RMS with support for up to 750V voltage and 600A current, making it suitable for various applications.

Advanced Display and Interface: Equipped with a 2.0-inch 240 × 320 full-color TFT screen featuring an intuitive UI, adjustable brightness, and data curve visualization for clear and convenient readings.

Versatile Functionality: Supports three measurement modes (routine, waveform, and power), along with NCV non-contact voltage detection and zero/fire line identification for enhanced usability.

Reliable Power and Efficiency: Powered by a long-lasting 3.7V 1500mAh battery with intelligent auto power-off to extend battery life.

User-Friendly Features: Includes a flashlight, screen backlight, and data-saving options, making it a practical and reliable tool for various scenarios.

81 / 100

Description

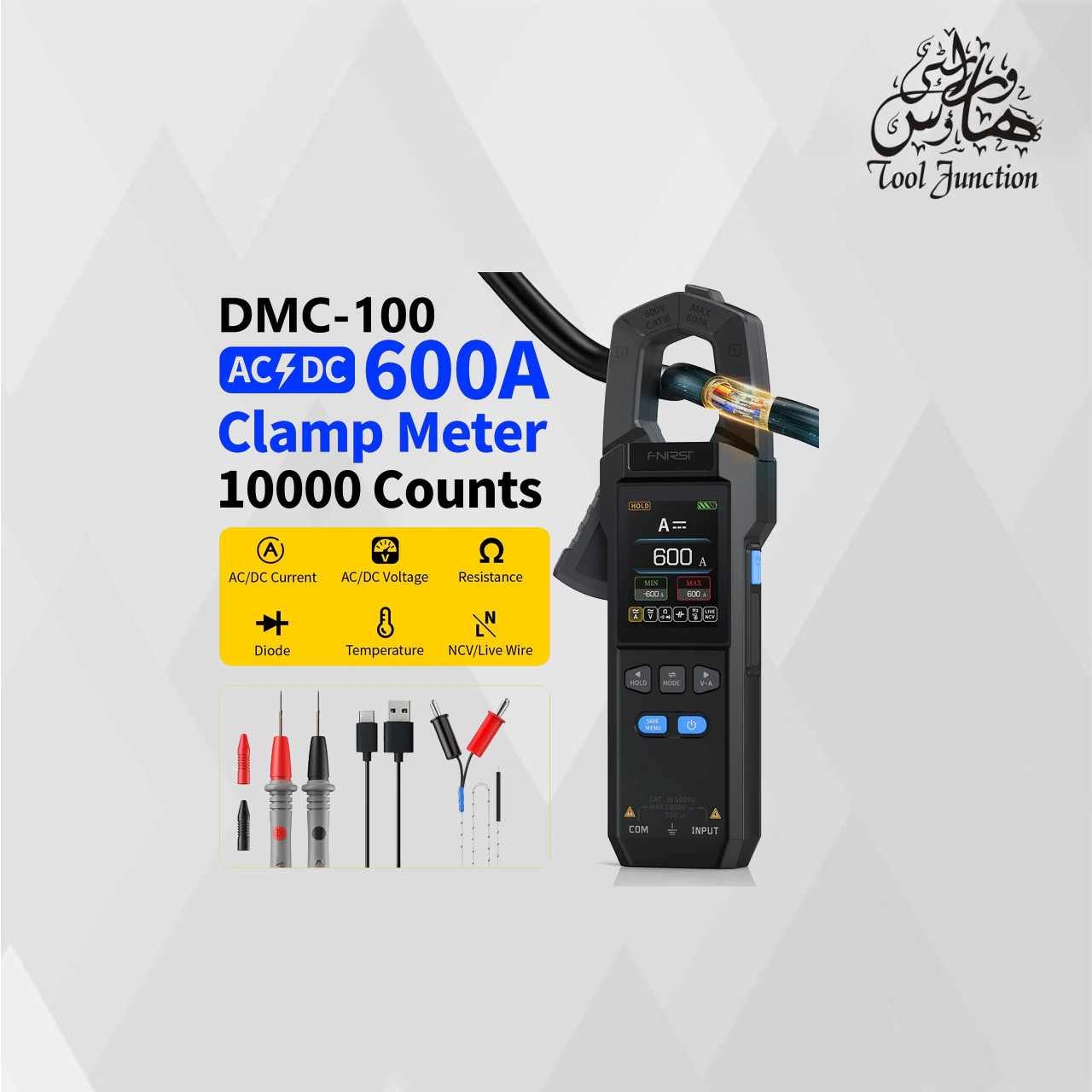

FNIRSI DMC-100 is a 10,000-count high-precision intelligent clamp meter, covering 750V voltage and 600A current ultra-wide range, whether it is engineering maintenance, laboratory research, or vehicle overhaul, home electrical diagnostics, can be easy to handle.

Features

High-Precision Measurement: 10,000-count True RMS intelligent clamp meter for accurate readings.
Wide Measurement Range: Supports up to 750V voltage and 600A current.
High-Quality Display: 2.0-inch 240 × 320 full-color TFT screen for clear visuals.
Intuitive Interface: New UI with data curve display for easy reading at a glance.

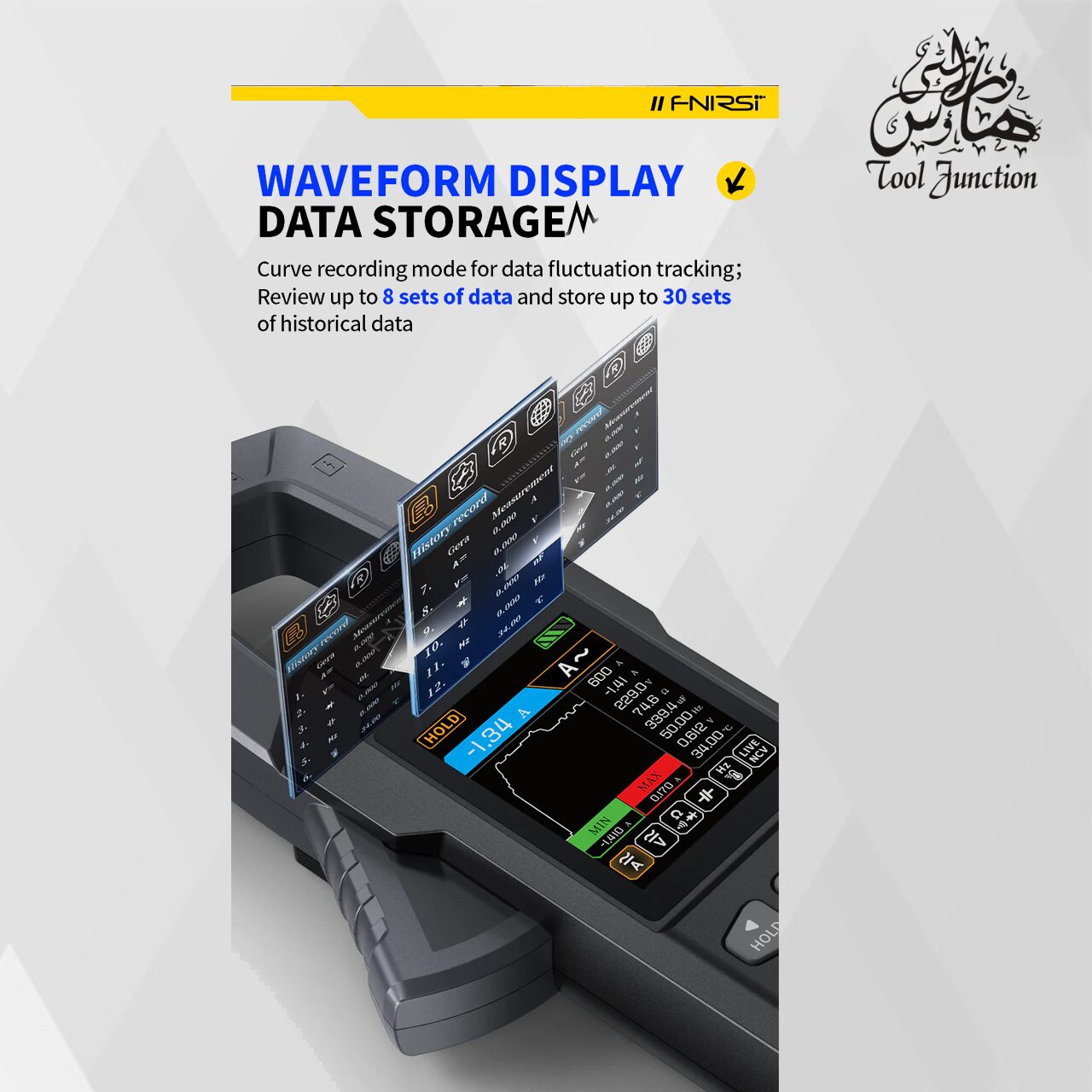

Three Measurement Modes: Switch freely between general measurement, waveform display, and power measurement modes.
NCV Function: Non-contact voltage measurement and zero/fire line identification.
Wide Temperature Range: Measures temperatures from -55°C to 1300°C.
Long-Lasting Battery: Built-in 3.7V 1500mAh battery for extended usage.
Type-C Interface: Convenient charging and data transmission via Type-C port (only for firmware transmission).
Additional Functions: Includes a flashlight, screen backlight, and data-saving capabilities.
Auto Power-Off: Intelligent automatic shutdown to conserve battery life.
Temperature Unit Switching: Easily switch between temperature units (℃/℉).
Adjustable Brightness: Screen brightness is adjustable for various environments.
Firmware Upgradeable: Supports firmware updates to enhance functionality.

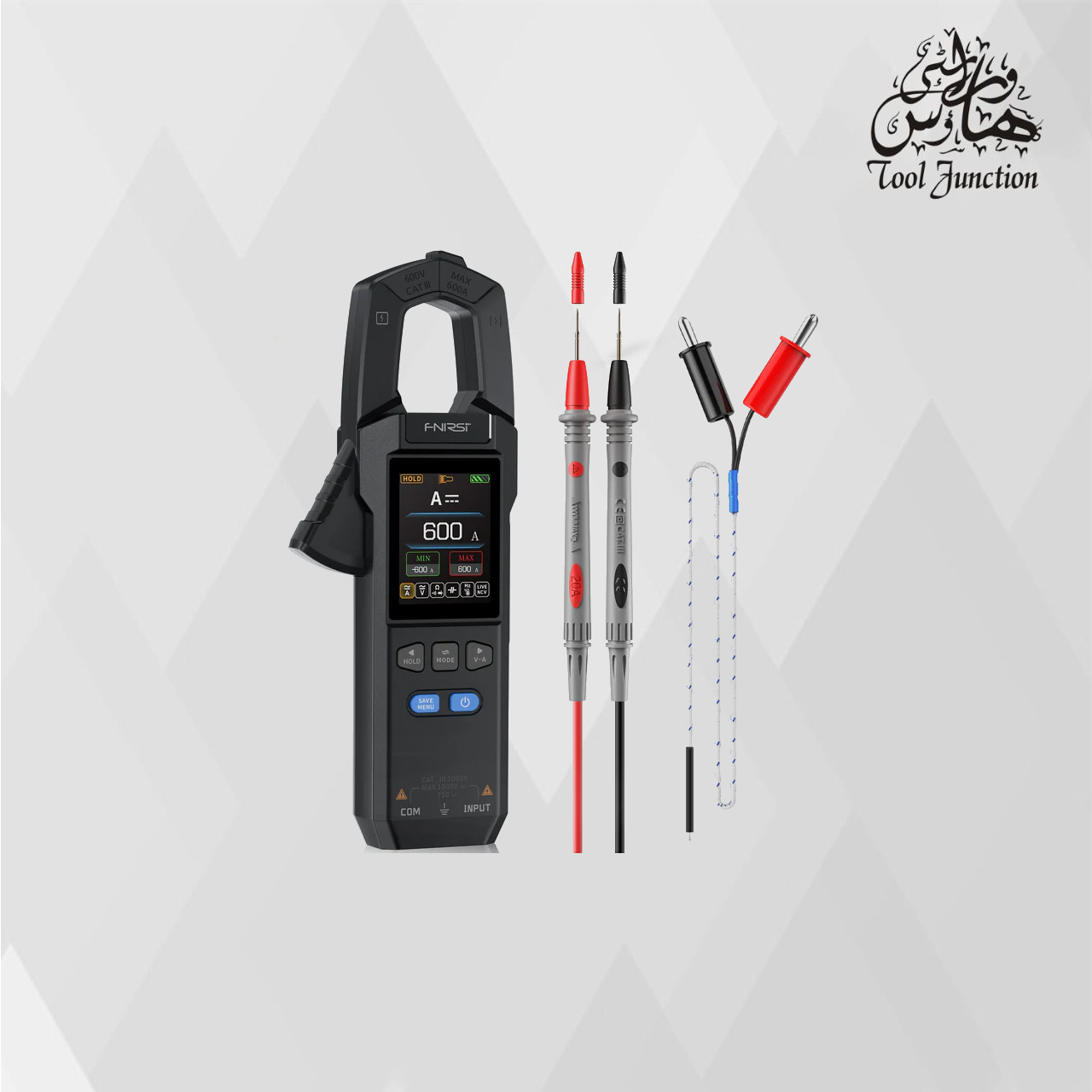

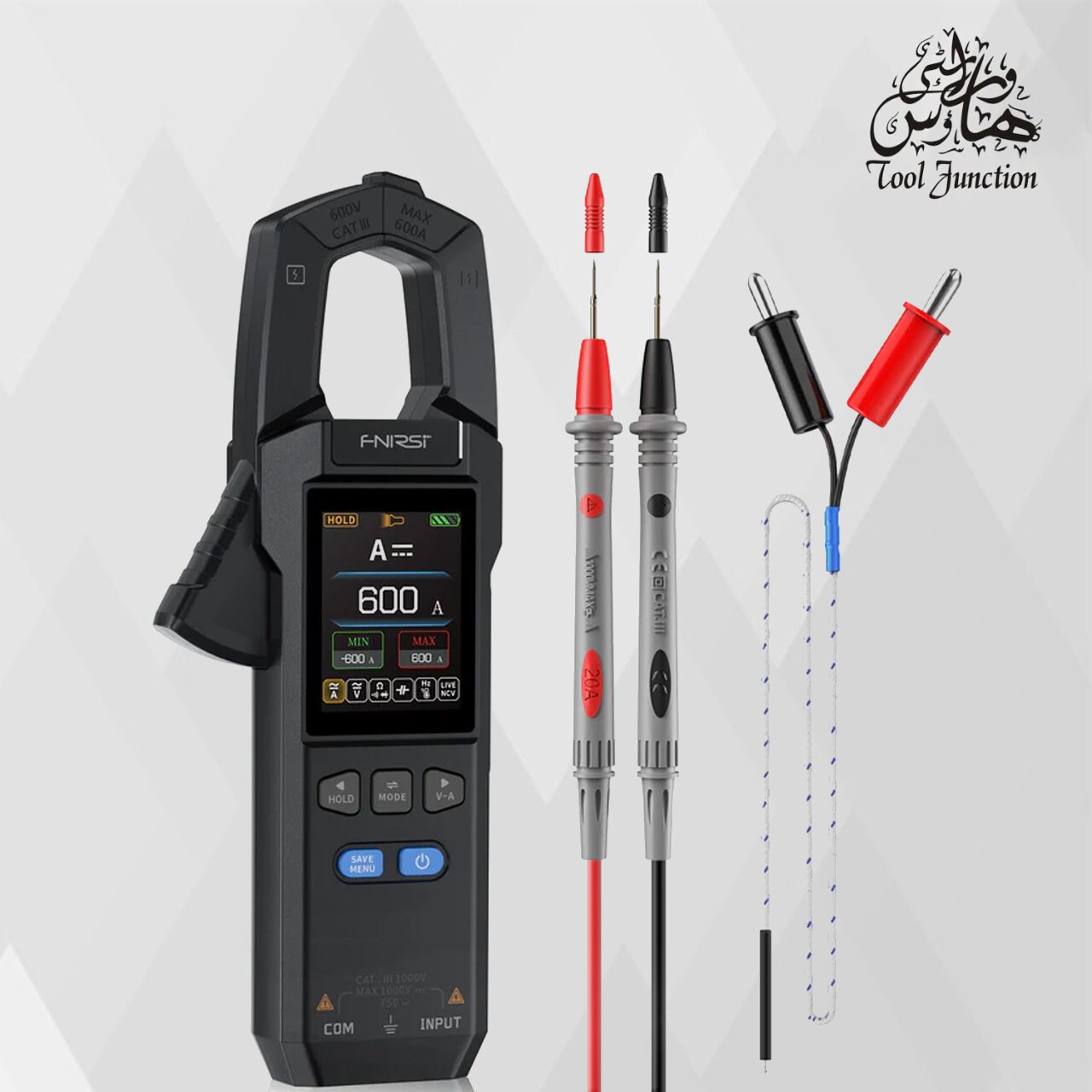

Package List:

◉ DMC-100 Host *1
◉ Type-C Charging Cable *1
◉ Multimeter Pen *1
◉ Temperture Probe *1
◉ Storage Case *1 (New)
◉ User Manual *1
◉ Packaging Box *1

⚠ Precautions

Before using the product, check if the insulation near the casing and interfaces is damaged.
Hold the probes by the protective grips.
Do not touch any of the input ports when measuring a circuit.
Disconnect the test probes from the circuit before changing the measurement range.
When measuring DC voltages above 36V or AC voltages above 25V, exercise caution to avoid electric shock.
Select the correct range for measurement to avoid damaging the instrument. The screen will display “OL” when the measurement exceeds the range.
When the battery level is critically low, a popup will alert you. Charge the battery promptly to avoid affecting measurement performance. Do not use the device while it is charging.
