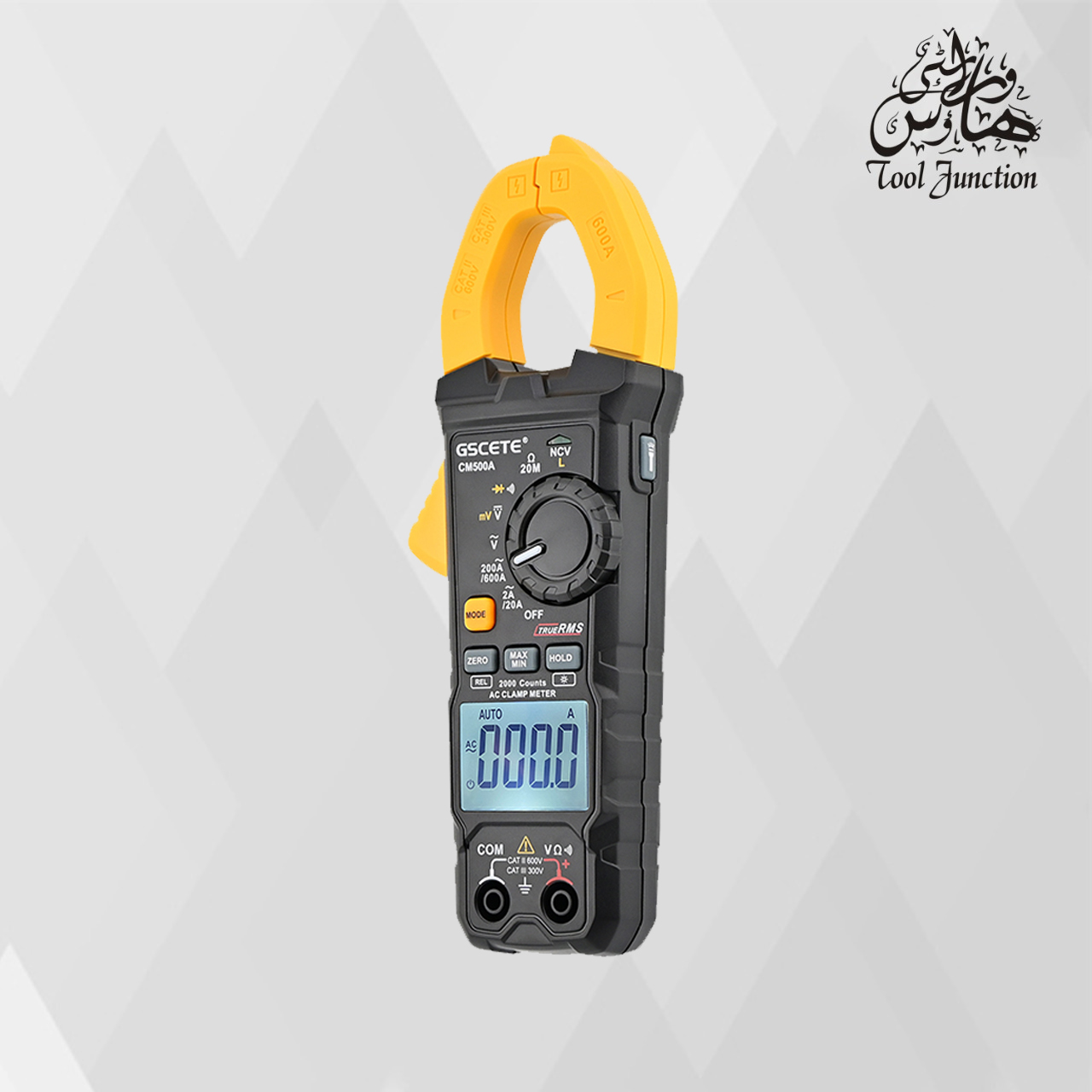

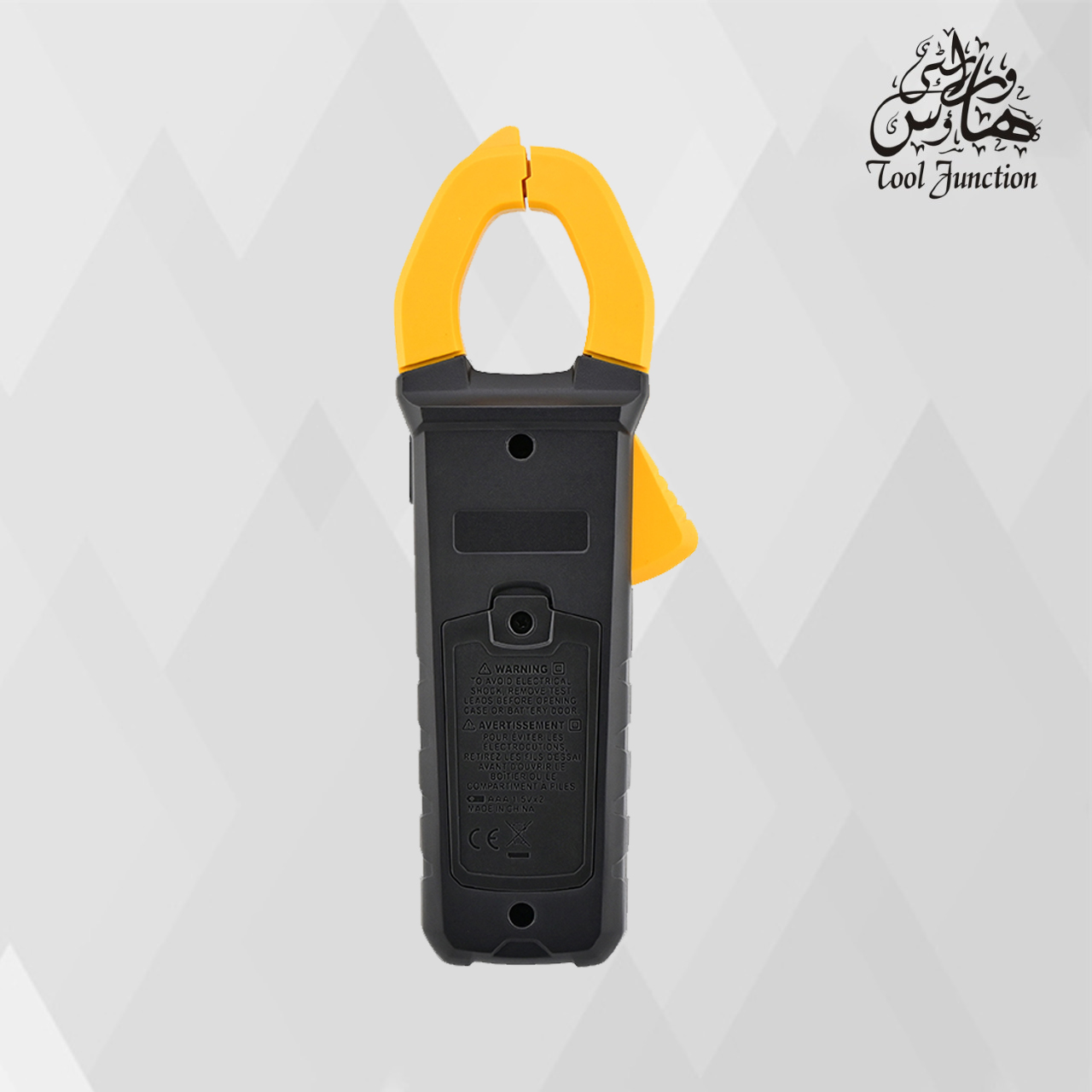

GSCETE CM500A Digital Clamp Meter
14% off
GSCETE CM500A Digital Clamp Meter
Original price was: ₨3,500.₨3,000Current price is: ₨3,000.
Buy Now
Add to cart
GSCETE CM500A Digital Clamp Meter
| Specifications/Model | CM500A |
| AC Current (A) | 500A |
| DC Current (A) | – |
| DC Voltage (V) | 600V |
| AC Voltage (V) | 600V |
| AC voltage frequency response ACV/ (Hz) | 400Hz |
| AC current frequency response ACA/ (Hz) | 400Hz |
| Frequency (Hz) | – |
| Resistance (Ω) | 20MΩ |
| Capacitance(F) | – |
| Temperature (°C) | – |
General Characteristics
| Product Size | 195H x 73W x 36D mm |
| Product Weight | 218 |
| Battery | LR03 · AAA7 1.5V x 2 |
| Category Ratings | CAT III 300V CAT II 600V |
| Safety Certifications | CE EN61010-1-2/032; EN61010-2/033; EMC EN61326-1-2 |
Features
| | |
| Display Counts | 2000 |
| Jaw Opening | Φ30mm |
| Auto Range | ● |
| True RMS | ● |
| AC Low Z | – |
| AC variable frequency ACV VFD | – |
| Connuity/Diode | ● |
| Non-contact sensing red LED alarm NCV (Red LED Flashing) | ● |
| AC Live | ● |
| Auto power off | ● |
| Max/Min | ● |
| Zero/Rel | ● |
| Backlight/Torch | ● |
| Input Protection | ● |
