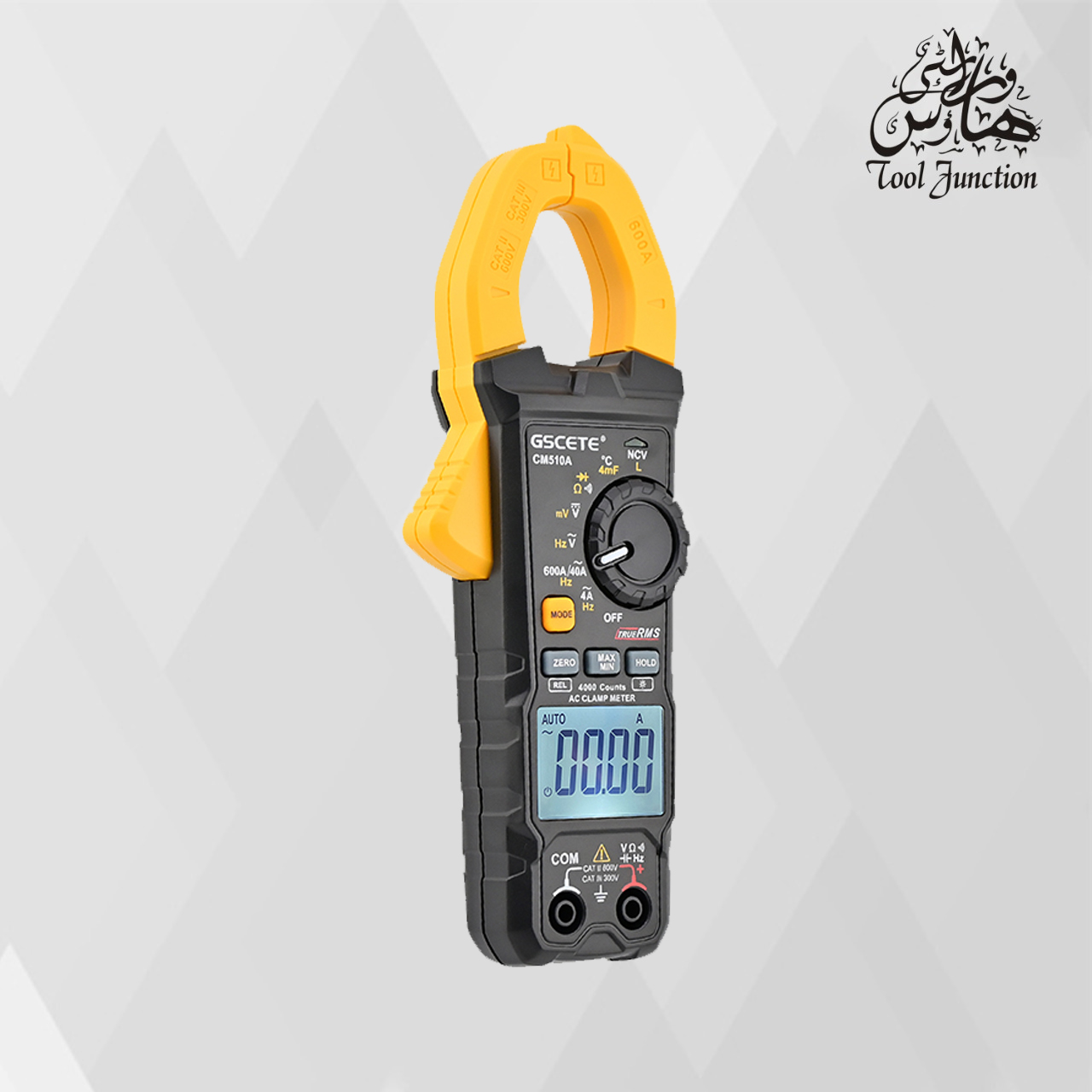

GSCETE CM510A Digital Clamp Meter
13% off
GSCETE CM510A Digital Clamp Meter
Original price was: ₨4,000.₨3,500Current price is: ₨3,500.
Buy Now
Add to cart
GSCETE CM510A Digital Clamp Meter
Features
1、ACA maximum measurements 600A
2、True/rms for AC measurement Accurate measurement of low voltage AC voltage, prevents false readings caused by other
3、Lamp design, easy to measure environment
4、NCV sensing AC live line measurements, LED flashing buzzer buzzer alarm shutdown and sleep standby, energy saving
Notes:
Batteries are not included, because they are dangerous goods and cannot be passed through customs inspections.
If you have any questions, please feel free to contact us, we will do our best to help you!
| Specifications/Model | CM510A |
| AC Current (A) | 600A |
| DC Current (A) | – |
| DC Voltage (V) | 600V |
| AC Voltage (V) | 600V |
| AC voltage frequency response ACV/ (Hz) | 400Hz |
| AC current frequency response ACA/ (Hz) | 100Hz |
| Frequency (Hz) | 40KHz |
| Resistance (Ω) | 40MΩ |
| Capacitance(F) | 4000uF |
| Temperature (°C) | 1000°C |
General Characteristics
| Product Size | 195H x 73W x 36D mm |
| Product Weight | 218 |
| Battery | LR03 · AAA7 1.5V x 2 |
| Category Ratings | CAT III 300V CAT II 600V |
| Safety Certifications | CE EN61010-1-2/032; EN61010-2/033; EMC EN61326-1-2 |
Features
| | |
| Display Counts | 4000 |
| Jaw Opening | Φ30mm |
| Auto Range | ● |
| True RMS | ● |
| AC Low Z | – |
| AC variable frequency ACV VFD | – |
| Connuity/Diode | ● |
| Non-contact sensing red LED alarm NCV (Red LED Flashing) | ● |
| AC Live | ● |
| Auto power off | ● |
| Max/Min | ● |
| Zero/Rel | ● |
| Backlight/Torch | ● |
| Input Protection | ● |
