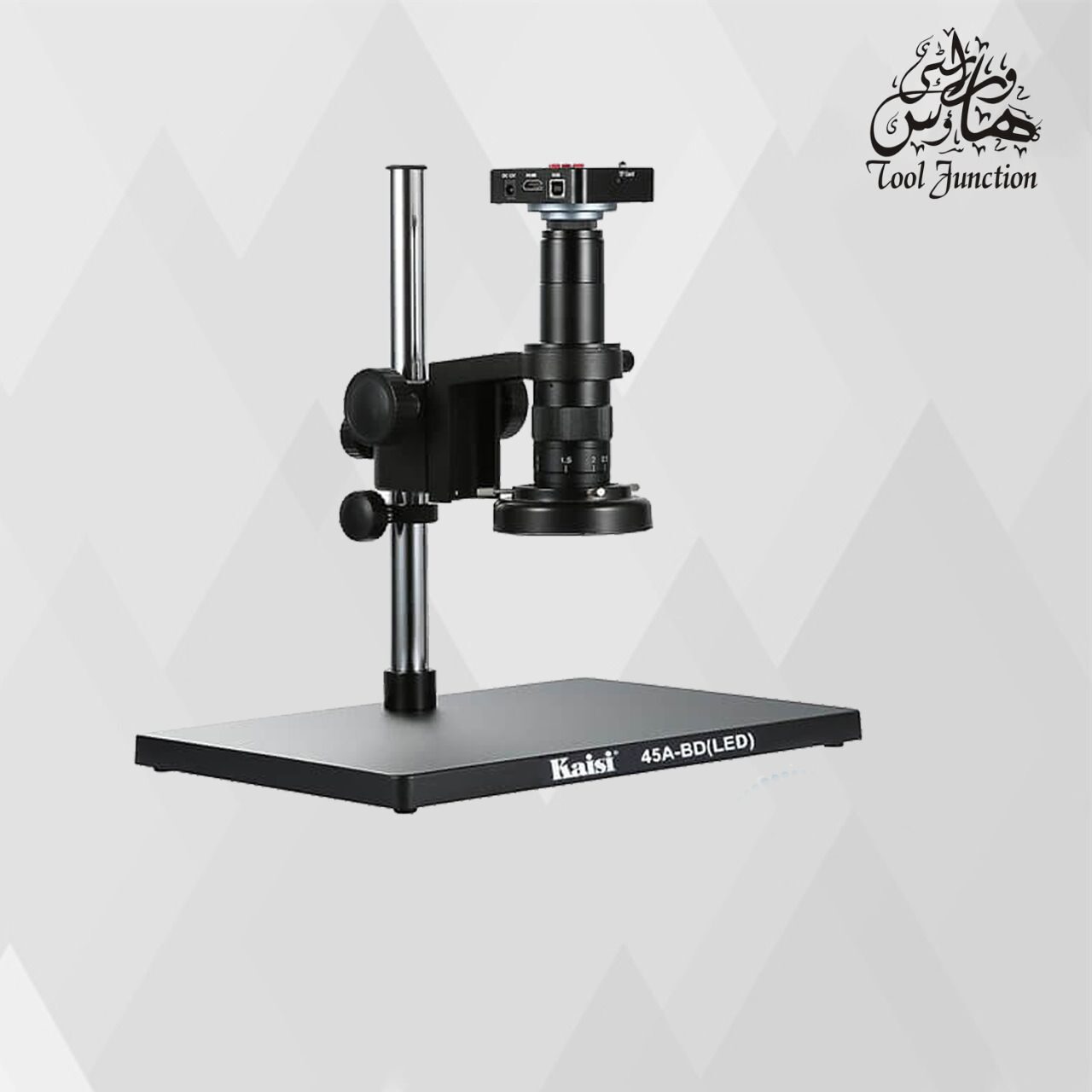

KS 45A BD LED DIGITAL MICROSCOPE

1. PC supports for multiple system; support for Windows XP/7/8/10 system
2. Comes with a 180X C-mount zoom lens for industrial microscope camera
3. This 48MP industrial microscope camera is suitable for repairing industry
4. Adopting high quality metal housing, it is sturdy and durable, featuring long service life
5. High resolution and dual output make it more convenient to use

Camera:
– Item Type: Microscope Camera
– Module: Kaisi 45A-BD(LED)
– Sensor: 48 MP for CMOS
– Optical Format: 1/2.3 inch
– Pixel Size: 1.335μmx1.335μm
– Interface: HDMI (Type A); USB (Type B). Small memory card
– HDMI Image Resolution: 48MP
– Video Resolution: 2.7K at 30FPS; 1080p at 60FPS
– HDMI Resolution: 1920 x 1080p 60FPS
– HDMI Scale: Support 4:3, 16:9, 16:10 screens
– USB2.0 (Drive Free):  1080 at 30FPS; 1080 x 720 at 30FPS; and 640 x 510 at 30FPS
– Small Memory Card: Up to 128GB (not included)
– AWB: AWB color correction/automatic/manual
– R.G.B value setting independent
– Exposure: Automatic/manual. AE value can be set
– Cross Line: 8 lines, color, width, position can be set
– Scale Line: 2 lines.
– Dotted Line: 2 lines, color, width, position can be set
– Sharpness Contrast Color Gain: Support
– Mono Negative Film: Support
– Mirror: Horizontal and vertical mirror
– Language: English/Simplified Chinese/French/Spanish/Japanese/German and other languages
– Digital Zoom: Support
– Infrared Remote Control: Support
– Voltage Input: DC 12V
– Power Supply Voltage: Input: AC100-240V
– Output: DC12V
– Power Consumption: Maximum 0.15W 12V, 0.12A
– Lens Interface: C/CS port
– 10-inch HD IPS Monitor Resolution: 1920x1080P

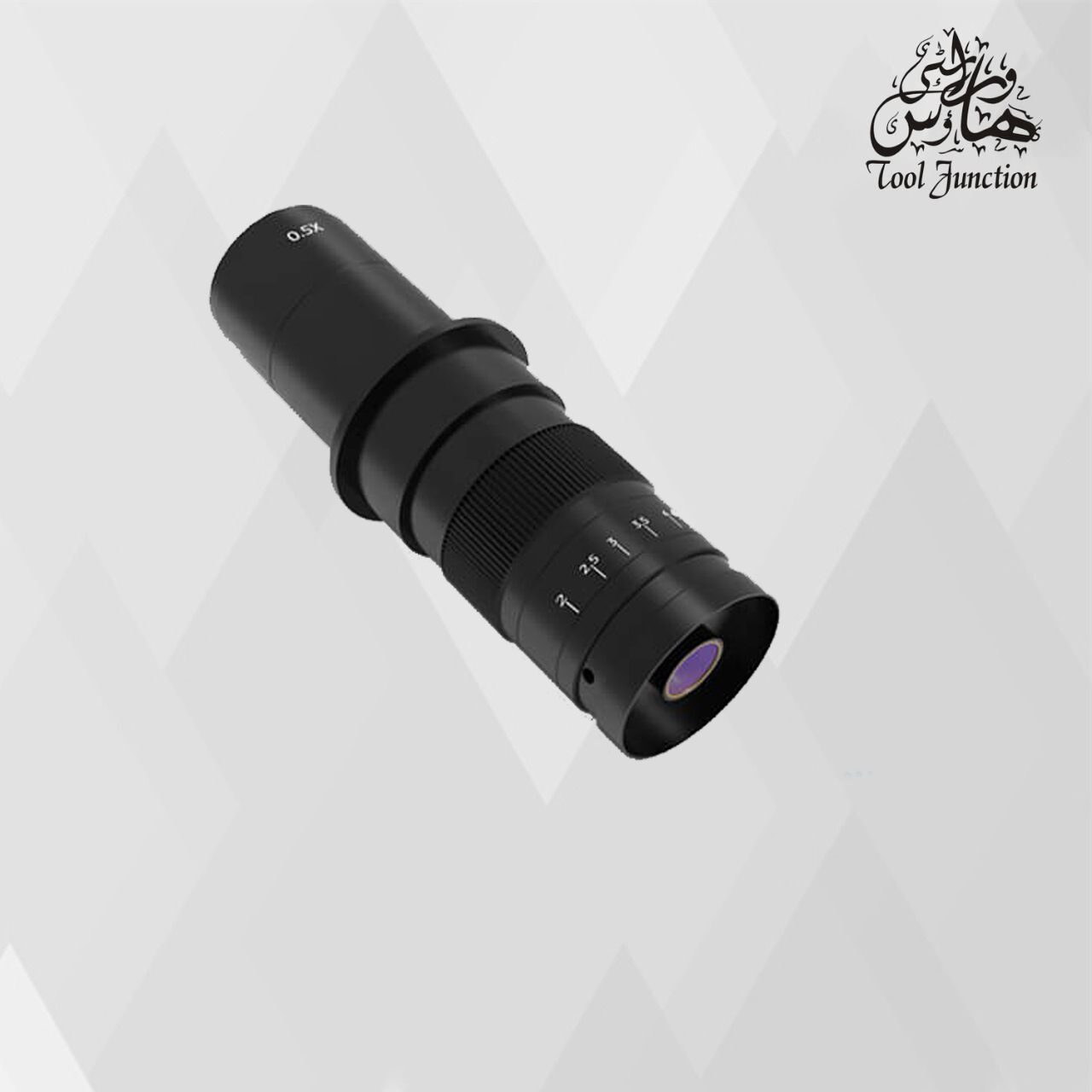

180X C-Mount Lens:
– Zoom C-Mount Lens
– 0.5X C-mount adapter
– Objective Magnification Power by 0.7X-4.5X
– Working distance: 100mm/3.9″
– Maximum field of view: 18.5 x 10.5mm
– Minimum field of view: 2.8 x 1.6mm

56 LED Ring Light:
– 56 LED Adjustable Compact Microscope Ring Light
– Provides intense and focused shadow-free illumination
– 56 bright white LED bulbs
– Lighting direction changeable
– Variable intensity control
– Intense and focused shadow-free illumination
– Power input: 100-240V, 50-60HZ, auto switching
– Inside diameter of the ring light: 27mm/1.1″
– Overall outside diameter: 45mm/1.8″
– Working Distance: 27mm-45mm/1.1-1.8″
