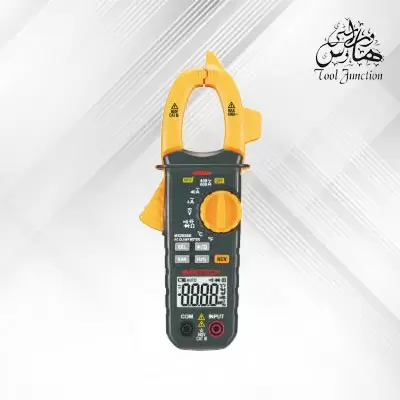

MS2030B – Digital AC Clamp Meter
MS2030B – Digital AC Clamp Meter
● Power Supply : 3×1.5V AAA Batteries
● Product Size : 198mm×79mm×38mm/7.8″×3.1″×1.5″
● Product Weight : 195g/0.43lb
● Certificate : CE / ETL / RoHS
● Safety Rating : CAT III 600V
Description
● Display 4000 counts
● Jaw Opening Ф28mm/1.1″
● Auto and Manual ranging
● Auto Power Off
● Diode Open Voltage 1.5V
● Continuity Buzzer less then 50±20Ω
● Data Hold
● Backlight
● Work Light
● Non-Contact Voltage Detector
● Low Battery Display
Specification
| 1 | Specifications | Range | Resolution | Accuracy |
| 2 | DC Voltage | 400mV/4V/40V/400V/600V | 0.1mV/1mV/10mV/0.1V/1V | ±(0.8%+3) |
| 3 | AC Voltage | 400mV/4V/40V/400V/600V | 0.1mV/1mV/10mV/0.1V/1V | ±(1.0%+5) |
| 4 | AC Current | 4A/40A/400A/600A | 1mA/10mA/0.1A/1A | ±(2.5%+5) |
| 5 | Resistance | 400Ω/4kΩ/40kΩ/400kΩ/4MΩ | 0.1Ω/1Ω/10Ω/0.1kΩ/1kΩ | ±(1.0%+5) |
| 6 | 40MΩ | 10kΩ | ±(2.0%+5) | |
| 7 | Capacitance | 5nF | 1pF | ±(4.0%+5) |
| 8 | 50nF/500nF/5µF/50µF/100µF | 10pF/0.1nF/1nF/10nF/0.1µF | ±(3.0%+3) | |
| 9 | Frequency | 50Hz/500Hz/5kHz/10kHz | 0.01Hz/0.1Hz/1Hz/10Hz | ±(1.0%+5) |
| 10 | Duty Cycle | 0.1%~99.9% | 0.1% | ±(2.0%) |
| 11 | Temperature | -20℃~1000℃ | 1℃ | ±(3.0%+3) |
| 12 | -4℉~1832℉ | 1℉ | ±(3.0%+3) |
