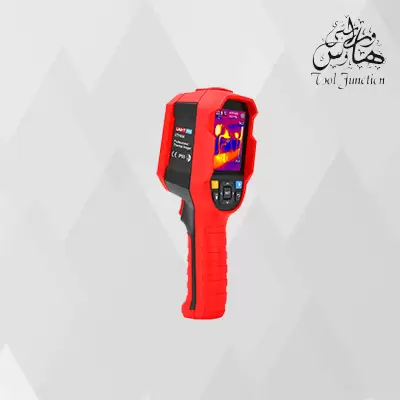

UNI-T UTi120P Pocket-sized Thermal Camera
UNI-T UTi120P Pocket-sized Thermal Camera
₨60,950
UTi120P thermal camera is mini and portable in size, users can put it into pocket to go anywhere to identify and troubleshoot problems, it can automatically track the objective’s temperature from -20°C to 400°C, which can be widely used in many applications.
Buy Now
Add to cart
UNI-T UTi120P Pocket-sized Thermal Camera
Pocket-sized Thermal Camera
UTi120P thermal camera is mini and portable in size, users can put it into pocket to go anywhere to identify and troubleshoot problems, it can automatically track the objective’s temperature from -20°C to 400°C, which can be widely used in many applications.
| Weight | 1.5 kg |
|---|
Features
- Mini and portable
- 2.4” TFT display screen (320×240 Pixels)
- IR resolution: 120×90
- Temperature measurement range:-20℃ to 400℃ / -4℉ to 752 ℉
- Auto alarm for high/low temperature
- Auto tracking for hot spot/cold spot
- Image capture
- Color palettes: 3(Iron, Rainbow, Grey)
- PC software analysis
- Rechargeable Li-ion battery
- 1/4” tripod mounting hole
- 1m drop proof
Specifications
| Functions | |
| ☑ Color palettes: 3 (Ironbow, Grey, Rainbow) ☑ Auto tracking and alarm for high/low temperature ☑ PC software analysis ☑ Auto power off: 5/10/30mins(default)/off | |
| Technical Data | |
| IR resolution (Pixels) | 120×90 |
| Display | 2.4” TFT LCD (320×240) |
| Field of view(FOV) | 50°×38° |
| Thermal sensitivity(NETD) | ≤60mK |
| Spatial resolution(IFOV) | 7.3mrad |
| Frame rate | ≤25Hz |
| Spectral range | 8~14µm |
| Focus | Focus Free |
| Temperature measurement range | -20℃~400℃ |
| Accuracy | ±2℃ or ±2% whichever is greater |
| Emissivity | 0.01~1.00 adjustable (0.95 default) |
| General Characteristics | |
| Battery | Fixed Li-ion battery (3.7V 1350mAh) |
| Battery operation time | ≥3.5 hours |
| USB | Micro USB |
| Drop proof | 1m |
| Storage | Up to 32GB Micro SD card |
| Image/Video storage format | BMP |
| Certificates | CE,RoHS |
| Product net weight | 125g |
| Product size | 76mm×76mm×24mm |
| Packing Details | |
| Standard accessories | Hand strap, Carrying bag, Micro SD card, Micro USB cable, English manual,Documents download operation guide card |
| Standard individual packing | Gift box |
| Standard Qty per carton | 5 |
| Standard carton size | 455mm×145mm×150mm |
| Standard carton G.W. | 2.8kg |
Applications
Applications of UTi120P
PCBA inspection:
The thermal camera can quickly locate the components where temperature is abnormally higher.
Power Distribution Cabinet Inspection
The thermal camera can quickly find the problems on switcher, contactor, transformer etc, which maybe caused by oxidation, corrosion, poor contact.
Motor inspection:
The thermal camera can detect the imbalance loading, overloading, wiring error and parts malfunction etc. Heat insulation protection is the key action for avoid fire risk, users can also use the thermal camera check the protection situation regularly to ensure the safety production.
