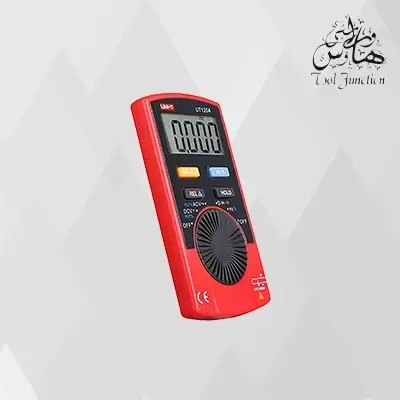

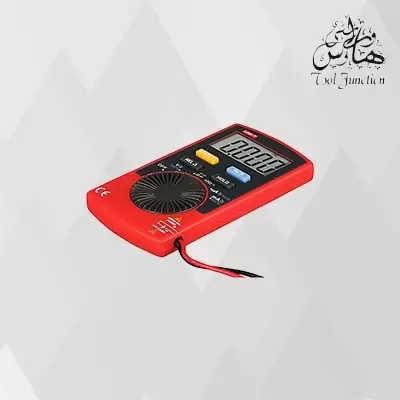

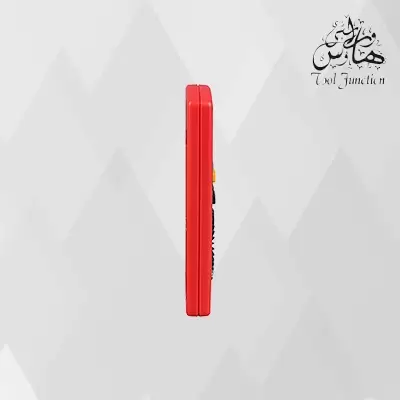

UNI-T Ut120A Pocket Size Digital Multimeter
UNI-T Ut120A Pocket Size Digital Multimeter
₨3,795
UNI T pocket-size digital multimeter UT120A is an ideal device for all-around electrical testing. This pocket digital multimeter has a very simple user interface. This mini multi-meter has a data HOLD function and a relative mode. This small multi-meter device also has a continuity buzzer, which sounds when consistency is detected. UT120 series multi meters are designed for DIYers and electronics engineers to troubleshoot electronics systems development and electronics circuits. UT120A multimeter is a simple and portable multi meter for every electronics engineer.
UT120A Pocket Size Digital Multimeter
UNI T pocket-size digital multi-meter UT120A is an ideal device for all-around electrical testing. This pocket digital multi-meter has a very simple user interface. This mini multi-meter has a data HOLD function and a relative mode. This small multi-meter device also has a continuity buzzer, which sounds when consistency is detected. UT120 series multi meters are designed for DIYers and electronics engineers to troubleshoot electronics systems development and electronics circuits. UT 120A multi meter is a simple and portable multi meter for every electronics engineer.
Features:
- Display Count 4000
- Auto Range
- Duty Cycle 0.1%-99.9%
- Diode
- Auto Power Off
- Continuity Buzzer
- Low Battery Indication
- Data Hold
- Relative Mode
- Input Impedance for DCV 10M
| Weight | 1 kg |
|---|
Basic Features
1. Auto power off
2. Auto range
3. 4000 display count
4. Data hold and relative mode1
Tech. Spec
Specifications |
Range |
UT120A |
| DC voltage (V) | 600V | ±(0.8%+1) |
| AC voltage (V) | 600V | ±(1.2%+3) |
| Resistance (Ω) | 40MΩ | ±(1%+2) |
| Frequency (Hz) | 10MHz | ±(0.5%+3) |
Features |
||
| Display count | 4000 | |
| Auto range | √ | |
| Duty cycle | 0.1%~99.9% | √ |
| Diode | √ | |
| Auto power off | Around 30 minutes | √ |
| Continuity buzzer | √ | |
| Low battery indication | ≤2.4V | √ |
| Data hold | √ | |
| Relative mode | √ | |
| Input impedance for DCV | Around 10MΩ | √ |
General Characteristics |
||
| Power | 3V battery (CR2032) | |
| Display | 43mm x 22mm | |
| Product color | Red and grey | |
| Product net weight | 76g | |
| Product size | 110mm x 58.2mm x 10.8mm | |
| Standard accessories | Battery, carrying case | |
| Standard individual packing | Blister, English manual | |
| Standard quantity per carton | 100pcs | |
| Standard carton measurement | 750mm x 275mm x 490mm (0.1CBM per export carton) | |
| Standard carton gross weight | 20kg | |
| Standard carton gross weight | 19.4kg |
Models & Comparison
Specifications |
Range |
UT120A |
UT120B |
UT120C |
| DC voltage (V) | 600V | ±(0.8%+1) | ±(0.8%+1) | ±(0.8%+1) |
| AC voltage (V) | 600V | ±(1.2%+3) | ±(1.2%+3) | ±(1.2%+3) |
| DC current (A) | 400mA | ±(1%+3) | ||
| AC current (A) | 400mA | ±(1.5%+5) | ||
| Resistance (Ω) | 40MΩ | ±(1%+2) | ±(1%+2) | ±(1%+2) |
| Capacitance (F) | 100μF | ±(4%+3) | ±(4%+3) | |
| Frequency (Hz) | 10MHz | ±(0.5%+3) | ±(0.5%+3) | ±(0.5%+3) |
Features |
||||
| Display count | 4000 | 4000 | 4000 | |
| Auto range | √ | √ | √ | |
| Duty cycle | 0.1%~99.9% | √ | √ | √ |
| Diode | √ | √ | √ | |
| Auto power off | Around 30 minutes | √ | √ | √ |
| Continuity buzzer | √ | √ | √ | |
| Low battery indication | ≤2.4V | √ | √ | √ |
| Data hold | √ | √ | √ | |
| Relative mode | √ | √ | √ | |
| Input impedance for DCV | Around 10MΩ | √ | √ | √ |
General Characteristics |
||||
| Power | 3V battery (CR2032) | |||
| Display | 43mm x 22mm | |||
| Product color | Red and grey | |||
| Product net weight | 76g | |||
| Product size | 110mm x 58.2mm x 10.8mm | |||
| Standard accessories | Battery, carrying case | |||
| Standard individual packing | Blister, English manual | |||
| Standard quantity per carton | 100pcs | |||
| Standard carton measurement | 750mm x 275mm x 490mm (0.1CBM per export carton) | |||
| Standard carton gross weight | 20kg |
