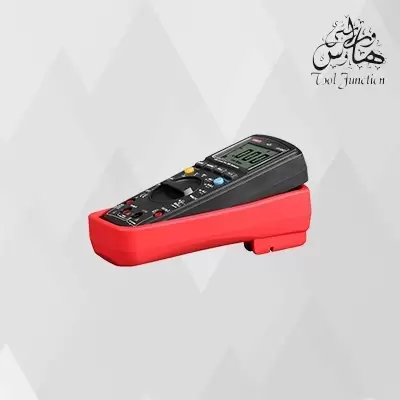

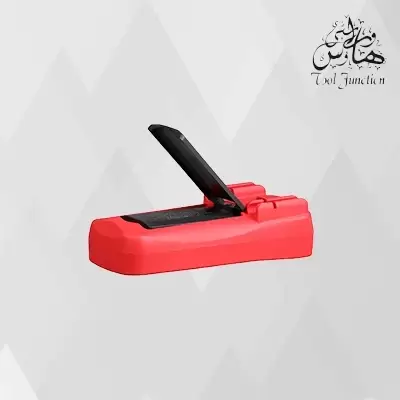

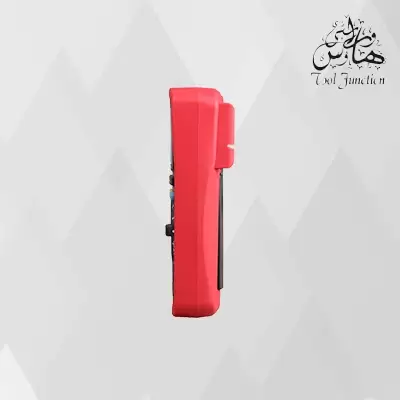

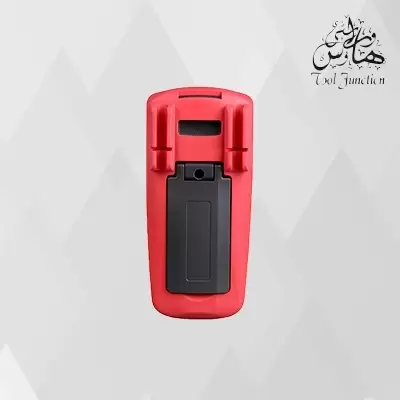

UNI-T Ut139C True Rms Digital Multimeter
UNI-T Ut139C True Rms Digital Multimeter
₨12,075
UT139 series are CAT III 600V digital multimeters designed for electricians. Its NCV feature can effectively check electrical status through measuring EM field intensity. The new UT139E/S models include special features such as LoZ (ACV) for measuring‘ghost’ voltage. Its built-in 31-segment analog bar also gives electricians a better visual representation of measurement results. UT139S is built with black EBTN display and it is a perfect meter for working in dark environments.
Buy Now
Add to cart
UT139C True RMS Digital Multimeter
UT139 series are CAT III 600V digital multimeters designed for electricians. Its NCV feature can effectively check electrical status through measuring EM field intensity. The new UT139E/S models include special features such as LoZ (ACV) for measuring‘ghost’ voltage. Its built-in 31-segment analog bar also gives electricians a better visual representation of measurement results. UT139S is built with black EBTN display and it is a perfect meter for working in dark environments.
Features:
1. MAX/MIN/REL modes2. Data hold, LED backlight, auto power off
3. Full range protection (600V)
4. True RMS
5. NCV
6. Auto/manual ranges selectable
| Weight | 1 kg |
|---|
Features
1. MAX/MIN/REL modes
2. Data hold, LED backlight, auto power off
3. Full range protection (600V)
4. True RMS
5. NCV
6. Auto/manual ranges selectable
Tech. Spec
| Specifications | Range | UT139C |
| DC voltage (V) | 600V | ±(0.5%+2) |
| AC voltage (V) | 600V | ±(0.8%+3) |
| DC current (A) | 10A | ±(0.7%+2) |
| AC current (A) | 10A | ±(1%+3) |
| Resistance (Ω) | 60MΩ | ±(0.8%+2) |
| Capacitance (F) | 99.99mF | ±(4%+5) |
| Frequency (Hz) | 10Hz~10MHz | ±(0.1%+4) |
| Temperature (°C) | -40°C~1000°C | ±(1%+3) |
| Temperature (°F) | -40°F~1832°F | ±(1.5%+5) |
| Features | ||
| Display count | 6000 | |
| Auto range/Manual range /True RMS | √ | |
| Bandwidth (Hz) | 45Hz~1kHz | |
| NCV/Continuity buzzer | √ | |
| Duty cycle | 0.1%~99.9% | √ |
| Diode | Around 3V | |
| General Characteristics | ||
| Power | 1.5V battery (R6) x 2 | |
| Display | 58mm x 36mm | |
| Product color | Red and grey | |
| Product net weight | 354g | |
| Product size | 170mm x 80mm x 48mm | |
| Standard accessories | Batteries, test leads, temperature probe | |
| Standard individual packing | Gift box, English manual | |
| Standard quantity per carton | 20pcs | |
| Standard carton measurement | 450mm x 330mm x 340mm | |
| Standard carton gross weight | 12.2kg | |
| Optional accessory | Current sensor AC/DC 40A | |
