UNI-T Ut181A True Rms Datalogging Multimeter
UNI-T Ut181A True Rms Datalogging Multimeter
₨89,125

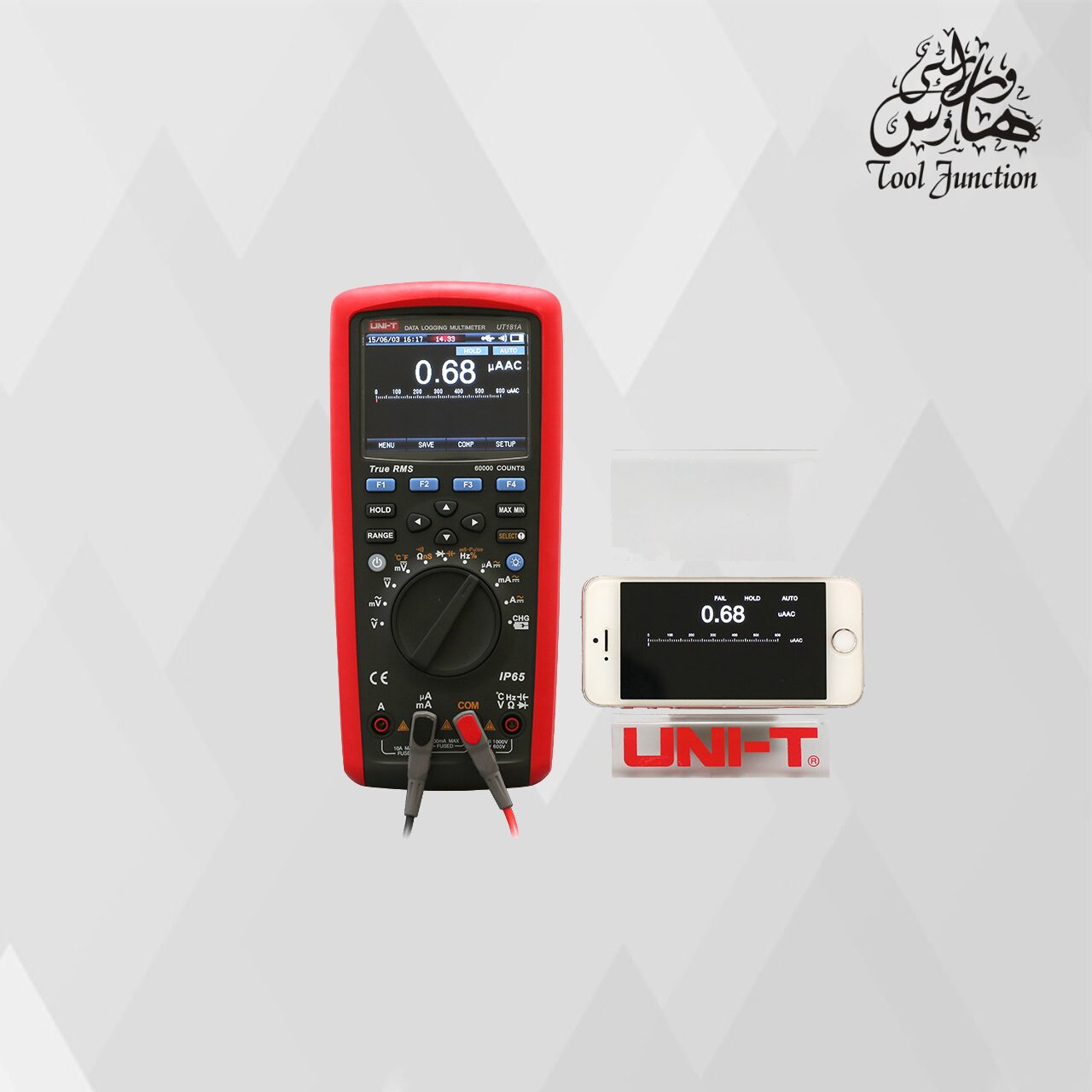

UT181A is a digital multimeter with trend capture, true RMS, low pass filter, nS conductance, dual temperature measurement, and more. With the help of the datalogging feature, users can store up to 20000 sets of measurement data and display them on a trend graph for long term monitoring.
Buy Now
Add to cart
| Weight | 3.5 kg |
|---|
Basic Features
- 1. Trend capture
- 2. Data logging: 20000
- 3. Data comparison
- 4. 3.5-inch 64k color TFT LCD
- 5. Dual temperature measurement
- 6. Low pass filter
- 7. 2200mAh Li-ion battery
- 8. Real time and date
- 9. Peak hold
- 10. Bluetooth/APP
- 11.USB interface cable /PC software CD
- 12. IP65
Tech. Spec
Specifications | Range | UT181 |
| DC voltage (V) | 1000V | ±(0.025%+5) |
| AC voltage | 1000V | ±(0.3%+30) |
| DC current (A) | 10A | ±(0.08%+10) |
| AC current (A) | 10A | ±(0.6%+20) |
| Resistance (Ω) | 60MΩ | ±(0.05%+2) |
| Admittance (nS) | 60nS | ±(2%+10) |
| Capacitance | 60mF | ±(2%+5) |
| FrequencyHz | 10Hz~60MHz | ±(0.01%+5) |
| Temperatue | –40℃～1000℃ | ±(1%+30) |
| Temperatue | -40°F~1832°F | ±(1.5%+50) |
Features | ||
| Display Count | 6000 | |
| Manual Range | √ | |
| Bandwidth (Hz) | 100kHz | √ |
| AC+DC/Continuity buzzer | √ | |
| Low pass filter | 1kHz | √ |
| dBV/dBm | √ | |
| Diode | Around 3V | √ |
| Duty cycle | 10%~90% | √ |
| Dual temperature measurement | T1, T2, T1-T2, T2-T1 | √ |
| Data hold/Peak hold | √ | |
| Relative mode | √ | |
| Data logging | 2000 | √ |
| Trend capture | √ | |
| MAX/MIN/AVG | √ | |
| Data time display/Data comparison | √ | |
| Backlight adjustment | √ | |
| Analog bar graph/USB interface | √ | |
| Mis-plug alarm | √ | |
| Battery indication/Auto power off | √ | |
| Rechargeable battery | √ | |
| Input protection | √ | |
| Input impedance for DCV | ≥10MΩ | √ |
General Characteristics | ||
| Power | Li-ion battery: 7.4V 2200mAh | |
| Display | 3.5-inch 64K color TFT LCD (320 x 240) | |
| Productht clor | Red and Gray | |
| Product net weig | 638.6g | |
| Product size | 225mm x 103mm x 59mm | |

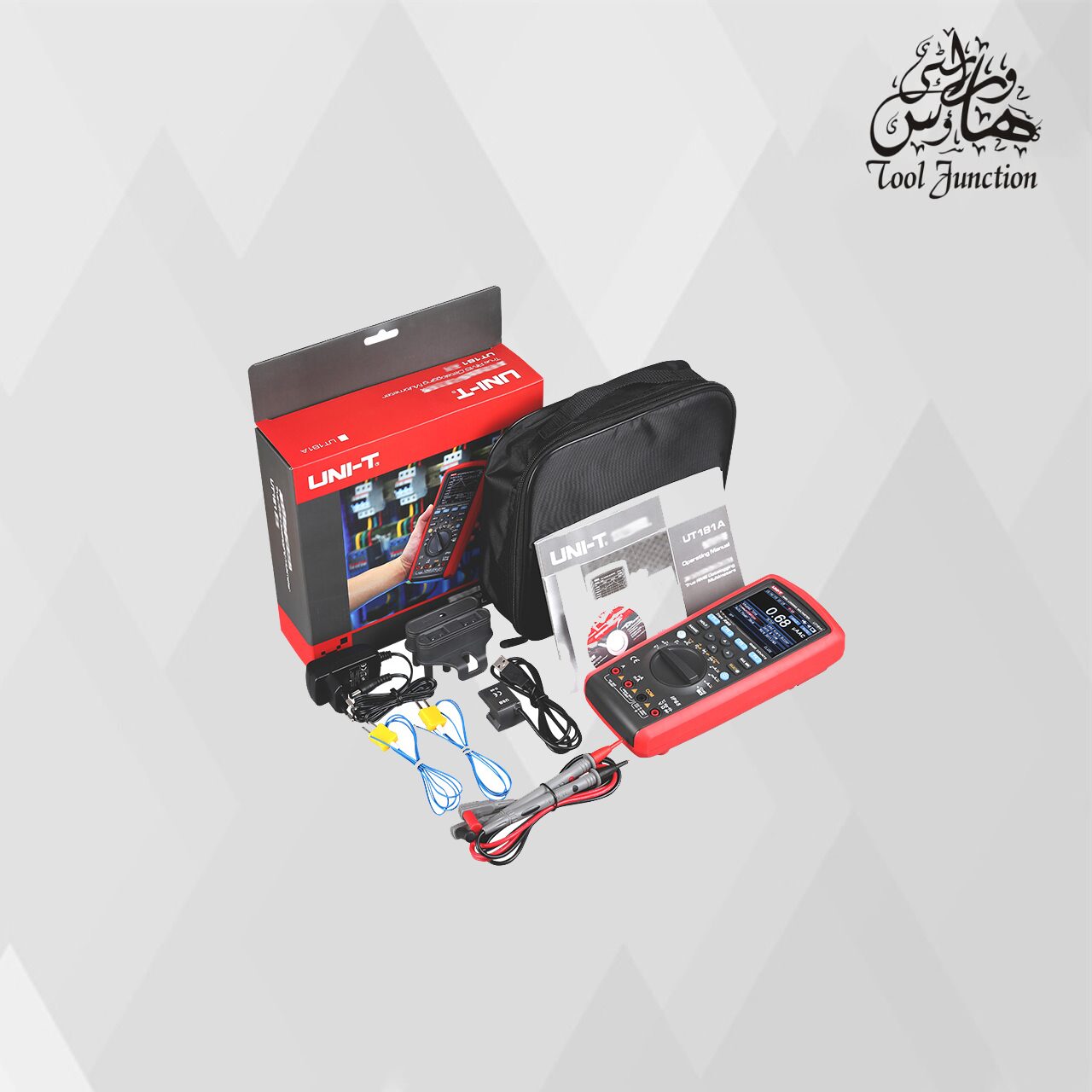

| Standard accessories | Battery, test leads, temperature adaptor socket, point contact temperature probes, power adaptor socket, power adaptor, PC software CD, USB interface cable | |
| Standard Individual Packing | Gift box, carrying bag, English manual | |
| Standard Quantity Per Carton | 20pcs | |
| Standard carton measurement | 480mm x 385 mm x 505mm | |
| Standard carton gross weight | 25.3kg | |
| Optional accessory | Bluetooth adaptor (UT-D07) |
Models & Comparison
Specifications | Range | UT181A |
| DC voltage (V) | 1000V | ±(0.025%+5) |
| AC voltage | 1000V | ±(0.3%+30) |
| DC current (A) | 10A | ±(0.08%+10) |
| AC current (A) | 10A | ±(0.6%+20) |
| Resistance (Ω) | 60MΩ | ±(0.05%+2) |
| Admittance (nS) | 60nS | ±(2%+10) |
| Capacitance | 60mF | ±(2%+5) |
| FrequencyHz | 10Hz~60MHz | ±(0.01%+5) |
| Temperatue | –40℃～1000℃ | ±(1%+30) |
| Temperatue | -40°F~1832°F | ±(1.5%+50) |
Features | ||
| Display Count | 6000 | |
| Manual Range | √ | |
| Bandwidth (Hz) | 100kHz | √ |
| AC+DC/Continuity buzzer | √ | |
| Low pass filter | 1kHz | √ |
| dBV/dBm | √ | |
| Diode | Around 3V | √ |
| Duty cycle | 10%~90% | √ |
| Dual temperature measurement | T1, T2, T1-T2, T2-T1 | √ |
| Data hold/Peak hold | √ | |
| Relative mode | √ | |
| Data logging | 2000 | √ |
| Trend capture | √ | |
| MAX/MIN/AVG | √ | |
| Data time display/Data comparison | √ | |
| Backlight adjustment | √ | |
| Analog bar graph/USB interface | √ | |
| Mis-plug alarm | √ | |
| Battery indication/Auto power off | √ | |
| Rechargeable battery | √ | |
| Input protection | √ | |
| Input impedance for DCV | ≥10MΩ | √ |
General Characteristics | ||
| Power | Li-ion battery: 7.4V 2200mAh | |
| Display | 3.5-inch 64K color TFT LCD (320 x 240) | |
| Productht clor | Red and Gray | |
| Product net weig | 638.6g | |
| Product size | 225mm x 103mm x 59mm | |
| Standard accessories | Battery, test leads, temperature adaptor socket, point contact temperature probes, power adaptor socket, power adaptor, PC software CD, USB interface cable | |
| Standard Individual Packing | Gift box, carrying bag, English manual | |
| Standard Quantity Per Carton | 20pcs | |
| Standard carton measurement | 480mm x 385 mm x 505mm | |
| Standard carton gross weight | 25.3kg | |
| Optional accessory | Bluetooth adaptor (UT-D07) |
