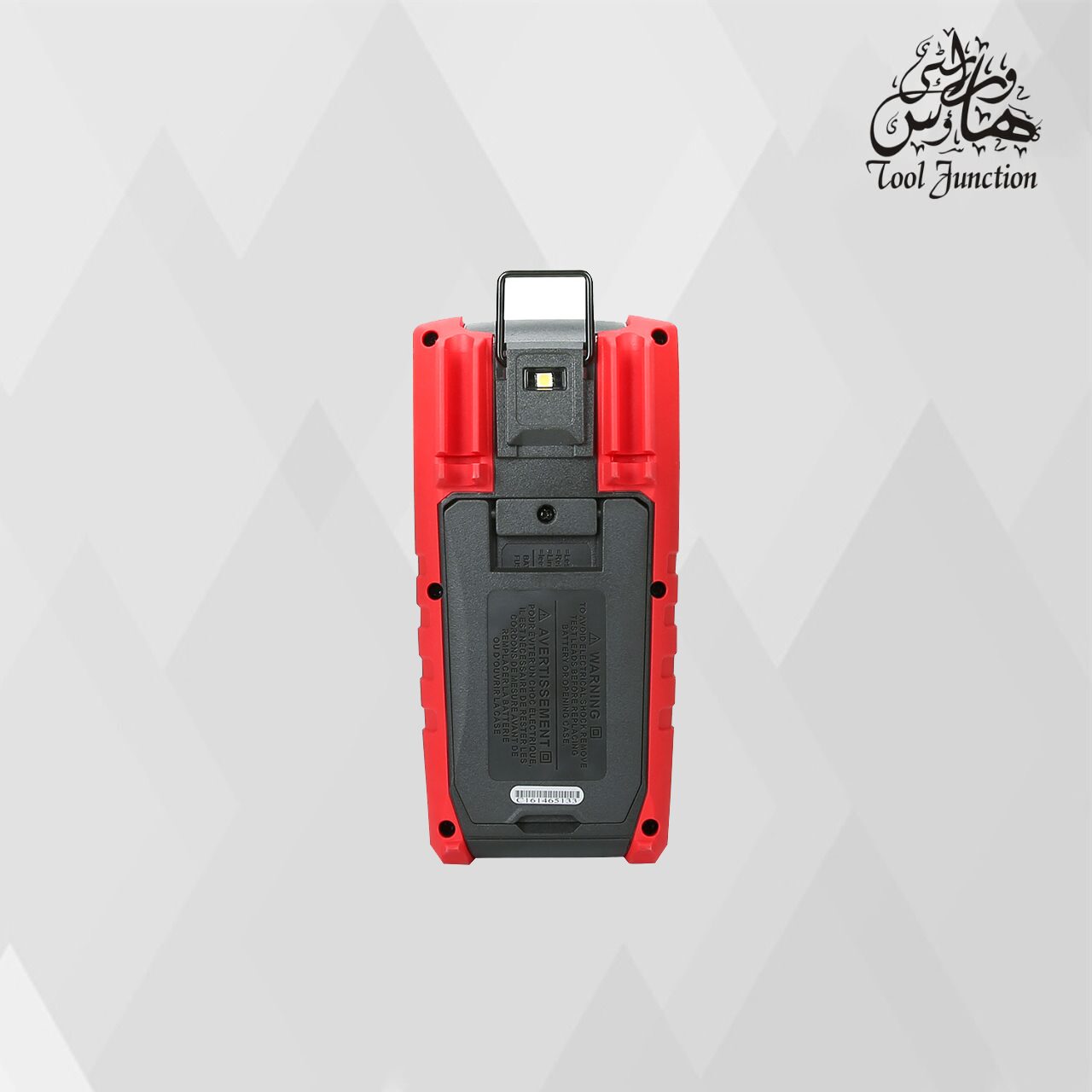

UNI-T Ut195M Professional Multimeter
UNI-T Ut195M Professional Multimeter
₨30,000
UT195 series are handheld industrial digital multimeters with IP65 and 2m drop proof. Compare with traditional multimeters, UT195’s troubleshooting capability, resolution, and precision are improved to find issues related to motor drive, factory equipment maintenance, electrical distribution, and repair etc. It is exquisitely designed and easy to operate.
Buy Now
Add to cart
Features
IP65 rating, 2m drop proof, CAT III 1000V, CAT IV 600V
● Large 6000-count LCD screen
● True RMS
● ACV 750V 5kHz bandwidth
● Flashlight
● Auto LCD backlight controlled by light sensor (can be turned off)
● LoZ voltage test, for ghost voltage measurement
● 20A current measurement (max 30 seconds)
● 31 analog bar
| Weight | 0.9 kg |
|---|
Specifications
Specifications
| Specifications | Range | UT195E | UT195M | UT195DS |
| DC voltage (V) | 1000V | ±(0.5%+3) | ±(0.5%+3) | ±(0.5%+3) |
| AC+DC | 750V | ±(0.7%+3) | ±(0.7%+3) | ±(0.7%+3) |
| AC voltage (V) | 600V | ±(1.5%+4) | ||
| LoZ ACV | 600V | ±(2%+3) | ±(2%+3) | ±(2%+3) |
| DC current (A) | 20A | ±(0.8%+3) | ±(0.8%+3) | ±(0.8%+3) |
| AC current (A) | 20A | ±(1%+3) | ±(1%+3) | ±(1%+3) |
| Resistance (Ω) | 60MΩ | ±(0.8%+2) | ±(0.8%+2) | ±(0.8%+2) |
| Capacitance | 60mF | ±(3%+5) | ±(3%+5) | ±(3%+5) |
| Frequency | 60Hz~10MHz | ±(0.1%+4) | ||
| 60Hz~40MHz | ±(0.1%+4) | ±(0.1%+4) | ||
| Duty cycle | 0.1%~99.9% | ±(2%+5) | N/A | ±(2%+5) |
| Temperature (°C) | -40°C~1000°C | ±(1.5%+4) | ||
| Temperature (°F) | -40°F~1832°F | ±(2%+5) | ||
| Features | ||||
| Display count | 6000 | 6000 | 6000 | |
| Display interface (LCD) | Single | Single | Dual | |
| Measurement sampling rate | times/s | 3 | 3 | 5 |
| Analog bar sampling rate | times/s | 10 | 20 | |
| Analog bar | 31 sections | √ | √ | |
| True RMS | √ | √ | √ | |
| AC voltage frequency response | 45~400Hz | 45~1kHz | 45~5kHz | |
| AC current frequency response | 45~400Hz | 45~1kHz | 45~5kHz | |
| 3-phase motor sequence test | 600V | √ | √ | |
| Low pass filter | 1kHz 3dB attenuation | √ | ||
| Diode/Continuity test | 3.5V | 3V | 3V | |
| Peak hold | 250μs | √ | ||
| Auto/Manual range | √ | |||
| Continuity buzzer | √ | |||
| Low battery indication | √ | |||
| Data hold/Auto power off | √ | |||
| MAX/MIN | √ | |||
| Function selection | √ | |||
| Flashlight/Auto backlight | √ | |||
| General Characteristics | ||||
| Power | 9V battery | |||
| LCD size | 66mm x 51mm | |||
| Product color | Red and grey | |||
| Product net weight | 437g | |||
| Product size | 195mm x 95 mm x 58mm | |||
| Standard accessories | Test probes, battery, carrying bag, point contact temperature probe (UT195M) | |||
| Standard individual packing | Gift box, English manual | |||
| Standard quantity per carton | 6pcs | |||
| Standard carton measurement | 580mm x 375mm x 215mm | |||
| Standard carton gross weight | 7.2kg | |||
Tech. Spec
Specifications | Range | Best Accuracy |
| DC voltage (V) | 1000V | ±(0.5%+3) |
| AC voltage | 750V | ±(0.7%+3) |
| LoZ ACV | 600V | ±(2%+3) |
| DC current (A) | 20A | ±(0.8%+3) |
| AC current (A) | 20A | ±(1%+3) |
| Resistance (Ω) | 60MΩ | ±(0.8%+2) |
| Capacitance | 60mF | ±(3%+5) |
| Frequency | 60Hz~40MHz | ±(0.1%+4) |
| Duty ratio | 0.1% ~ 99.9% | N/A |
| Temperature (°C) | -40°C~1000°C | ±(1.5%+4) |
| Temperature (°F) | -40°F~1832°F | ±(2%+5) |
Features | ||
| Display count | 6000 | |
| Display interface (HTN) | Single display | |
| Measurement sampling rate | times/s | 3 |
| Analog bar sampling rate | times/s | 10 |
| True RMS | √ | |
| AC voltage frequency response | 45 ~ 1kHz | |
| AC current frequency response | 45 ~ 1kHz | |
| 3-phase motor sequence test | 600V | √ |
| Diode/Continuity test | 3V | |
| Auto/Manual range | √ | |
| Continuity buzzer | √ | |
| Low battery indication | √ | |
| Data hold | √ | |
| MAX/MIN | √ | |
| Function selection | √ | |
| Flashlight | √ | |
| /FlshightAuto backlight | √ | |
General Characteristics | ||
| Power | 9V battery | |
| LCD size | 66mm x 51mm | |
| Product color | Red and grey | |
| Product net weight | 437g | |
| Product size | 195mm x 95 mm x 58mm | |
| Standard accessories | Test probes, battery, carrying bag, point contact temperature probe | |
| Standard individual packing | Gift box, English manual | |
| Standard quantity per carton | 6pcs | |
| Standard carton measurement | 580mm x 375mm x 215mm | |
| Standard carton gross weight | 7.2kg |
Models & Comparison
Specifications | Range | UT195E | UT195M | UT195DS |
| DC voltageV | 1000V | ±(0.5%+3) | ±(0.5%+3) | ±(0.5%+3) |
| AC voltage (V) | 750V | ±(0.7%+3) | ±(0.7%+3) | ±(0.7%+3) |
| AC+DC | 60V | ±(1.5%+4) | ||
| LoZ ACV | 600V | ±(2%+3) | ±(2%+3) | ±(2%+3) |
| DC current (A) | 20A | ±(0.8%+3) | ±(0.8%+3) | ±(0.8%+3) |
| AC current (A) | 20A | ±(1%+3) | ±(1%+3) | ±(1%+3) |
| Resistance (Ω) | 60MΩ | ±(0.8%+2) | ±(0.8%+2) | ±(0.8%+2) |
| Capacitance | 60mF | ±(3%+5) | ±(3%+5) | ±(3%+5) |
| Frequency | 600Hz ~ 10MHz 60Hz ~ 40MHz | +(0.1%+4 | +(0.1%+4 | +(0.1%+4 |
| Duty ratio | 0.1% ~ 99.9% | ±(2%+5) | N/A | ±(2%+5) |
| Temperature (°C) | -40 ~ 1000°C | ±(1.5%+4 | ||
| Temperature (°F) | -40°F~1832°F | ±(2.0%+5) | ||
Features | ||||
| Display count | 6000 | 6000 | 6000 | |
| Display interface (LCD) | Single | Single | Single | |
| Measurement sampling rate | times/s | 3 | 3 | 5 |
| Analog bar sampling rate | times/s | 10 | 20 | |
| Analog bar | √ | √ | √ | |
| AC voltage frequency response | 45 ~400Hz | 45 ~ 1kHz | 45 ~ 5kHz | |
| AC current frequency response | 45 ~400Hz | 45 ~ 1kHz | 45 ~ 5kHz | |
| 3-phase motor sequence test | 600.0V | √ | √ | |
| Low pass filter test | 1kHz 3dB attenuation | √ | ||
| Diode/Continuity test | 3.5V | 3V | 3V | |
| Peak hold | 250μs | √ | ||
| Auto Manual range | √ | |||
| Continuity buzzer | √ | |||
| Low battery indication | √ | |||
| Data hold/Auto power off | √ | |||
| MAX/MIN | √ | |||
| Function selection | √ | |||
| Flashlight /Auto backlight | √ | |||
General Characteristics | ||||
| Power | 9V battery | |||
| LCD size | 66mm x 51mm | </td | </td | |
| Product color color | Red and grey | |||
| Product net weight | 437g | |||
| Product size | 195mm x 95 mm x 58mm | |||
| Standard accessories | Test probes, battery, carrying bag, temperature probe (UT195M) | |||
| Standard individual packing | Gift box, English manual | |||
| Standard quantity per carton | 6pcs | |||
| Standard carton measurement | 580mm x 375mm x 215mm | |||
| Standard carton gross weight | 7.2kg |
