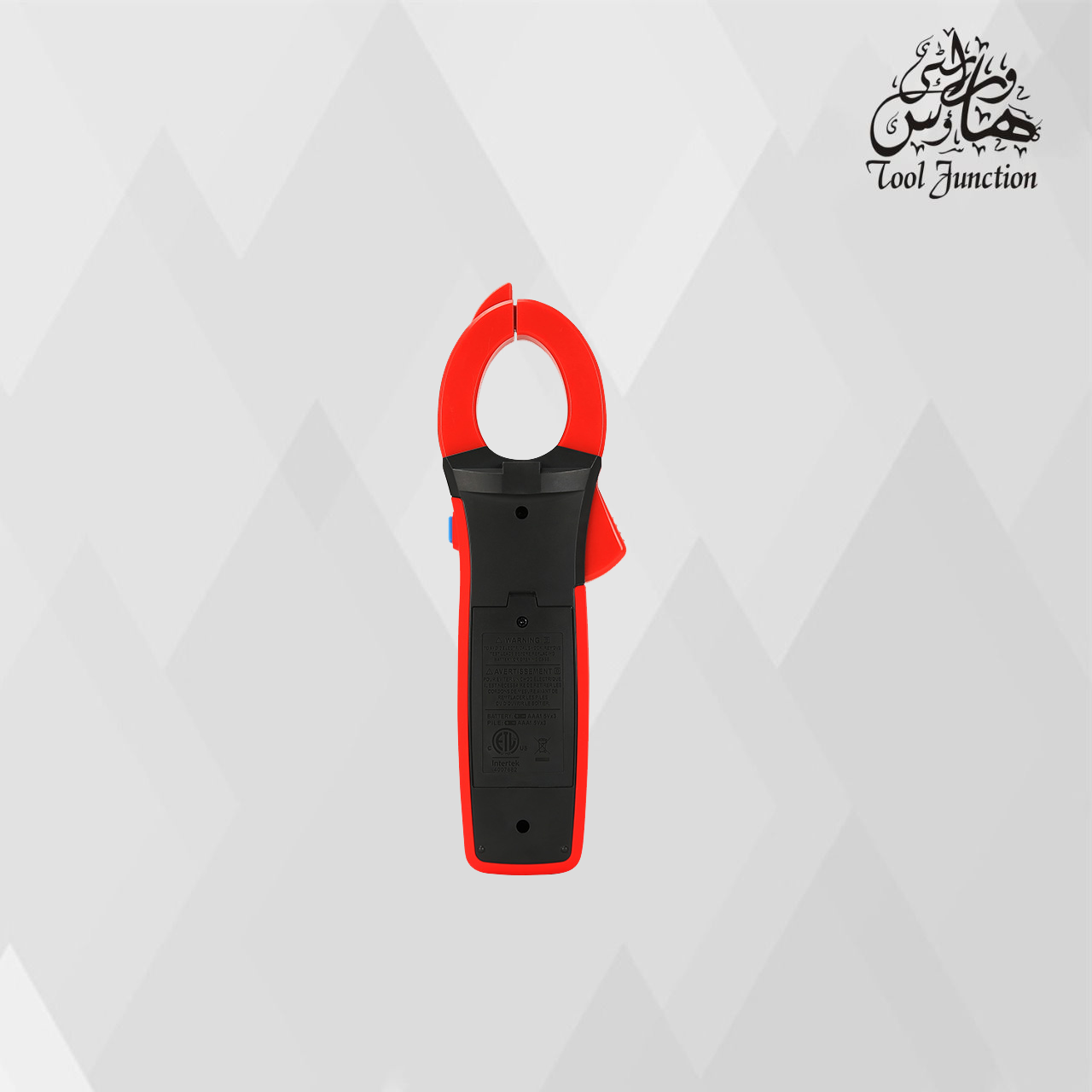

UNI-T Ut208 1000A Digital Clamp Meter
UNI-T Ut208 1000A Digital Clamp Meter
₨21,275
These 1000A AC/DC digial clamp meters are stable, safe and reliable with low power consumption. Its full range overload protection and unique appearance design make these clamp meters the ideal tool for maintenance and repair of electrical and power lines up to 1000A AC.
Buy Now
Add to cart
Features
● Flashlight button: Short press this button to turn on/off the flashlight
● NCV Multi-Segment Display and audio/visual alarm
● True RMS/Auto backlight
● NCV/Function retention
| Weight | 0.85 kg |
|---|
Specifications
Specifications
| Specifications | Range | UT205E | UT206B | UT207B | UT208B |
| AC current (A) | 1000A | ±(2%+5) | ±(2%+5) | ±(2%+5) | ±(2%+5) |
| DC current (A) | 1000A | ±(2%+5) | ±(2%+5) | ||
| AC current frequency response | 50Hz~60Hz | 50Hz~60Hz | 40Hz~400Hz | 40Hz~400Hz | |
| Inrush current (A) | 1000A | ±(10%+10) | ±(10%+10) | ±(10%+10) | |
| AC voltage (V) | 1000V | ±(1.2%+3) | ±(1.2%+3) | ±(1.2%+3) | ±(1.2%+3) |
| DC voltage (V) | 1000V | ±(0.5%+5) | ±(0.5%+5) | ±(0.5%+5) | ±(0.5%+5) |
| Low pas filter (LPF ACV) | 1000V | ±(2%+5) | ±(2%+5) | ±(2%+5) | |
| AC voltage frequency response | 40Hz~400Hz | 40Hz~400Hz | 40Hz~400Hz | 40Hz~400Hz | |
| LoZ ACV | 1000V | ±(2%+5) | ±(2%+5) | ±(2%+5) | |
| Resistance (Ω) | 60MΩ | ±(1%+2) | ±(1%+2) | ±(1%+2) | ±(1%+2) |
| Capacitance (F) | 60mF | ±(4%+5) | ±(4%+5) | ±(4%+5) | ±(4%+5) |
| Temperature | -40℃~1000℃ | ±(1%+2) | ±(1%+2) | ||
| -40℉~1832℉ | ±(1%+4) | ±(1%+4) | |||
| Low voltage frequency (Hz) | 10Hz~1MHz | ±(0.1%+3) | ±(0.1%+3) | ±(0.1%+3) | ±(0.1%+3) |
| Duty cycle (%) | 10%~90% | ±(2.6%+7) | ±(2.6%+7) | ±(2.6%+7) | ±(2.6%+7) |
| Analog bar | 31 | 31 | 31 | ||
| Flexible current probe (optional) | Extends up to 3000A | √ | √ | ||
| Zero mode | √ | √ | |||
| Display count | 6000 | 6000 | 6000 | 6000 | |
| Jaw opening | 42mm | 42mm | 42mm | 42mm | |
| General Characteristics | |||||
| Power | 1.5V battery (R03) x 3 | ||||
| Display | 43mm x 45mm | ||||
| Product net weight | UT205E/UT206B: 465g; UT207B/UT208B: 420g | ||||
| Product size | 272mm x 81mm x 43.5mm | ||||
| Standard accessories | Test leads, batteries, point contact temperature probe (UT206B/UT208B), English manual | ||||
| Standard individual packing | Gift box, carrying bag | ||||
| Standard quantity per carton | UT205E/UT206B/UT207B: 10pcs; UT208B: 5pcs | ||||
| Standard carton measurement | UT205E/UT206B/UT207B: 355mm x 330mm x 315mm; UT208B: 355mm x 330mm x 165mm | ||||
| Standard carton gross weight | UT205E/UT206B/UT207B: About 7.1kg; UT208B: About 4.5kg | ||||
