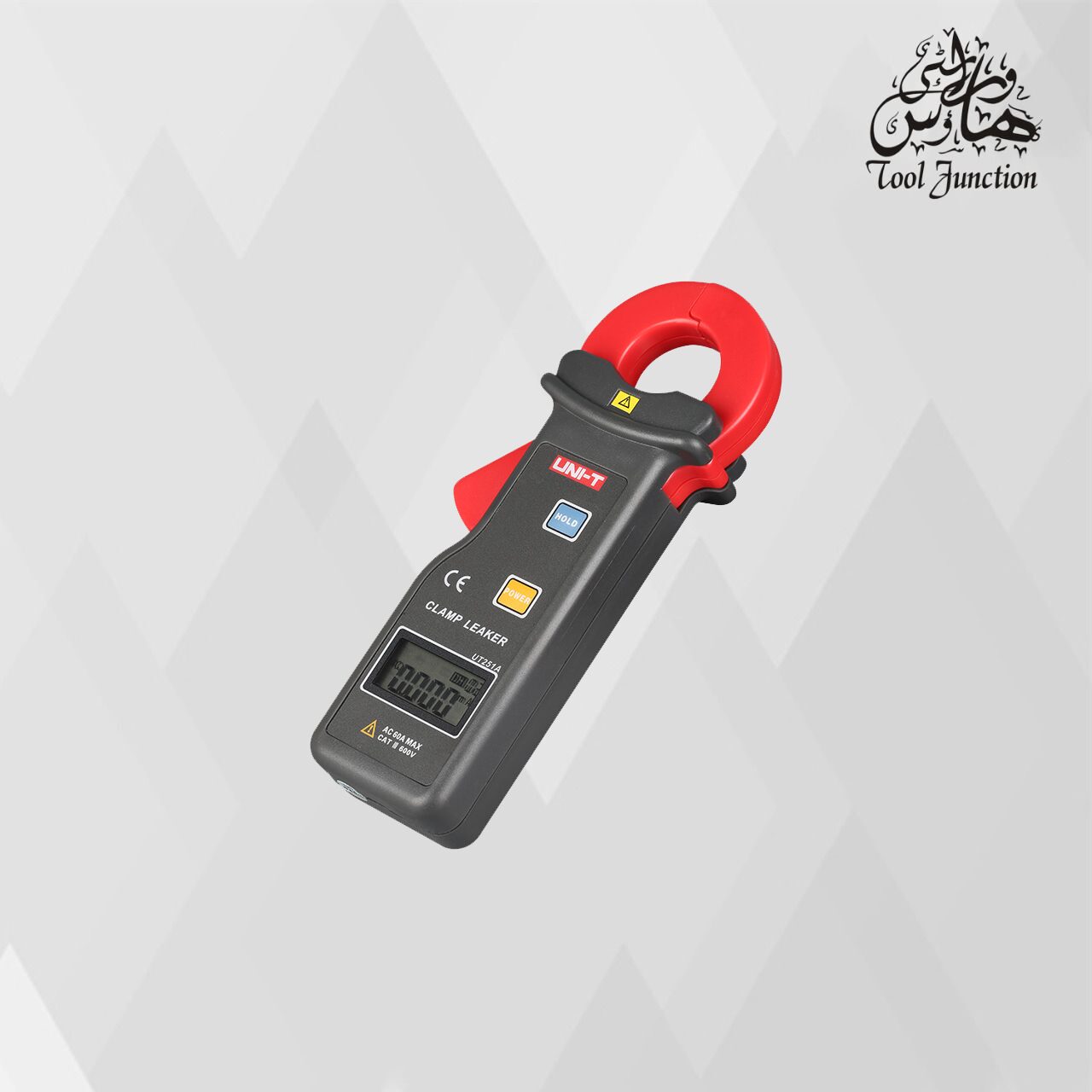

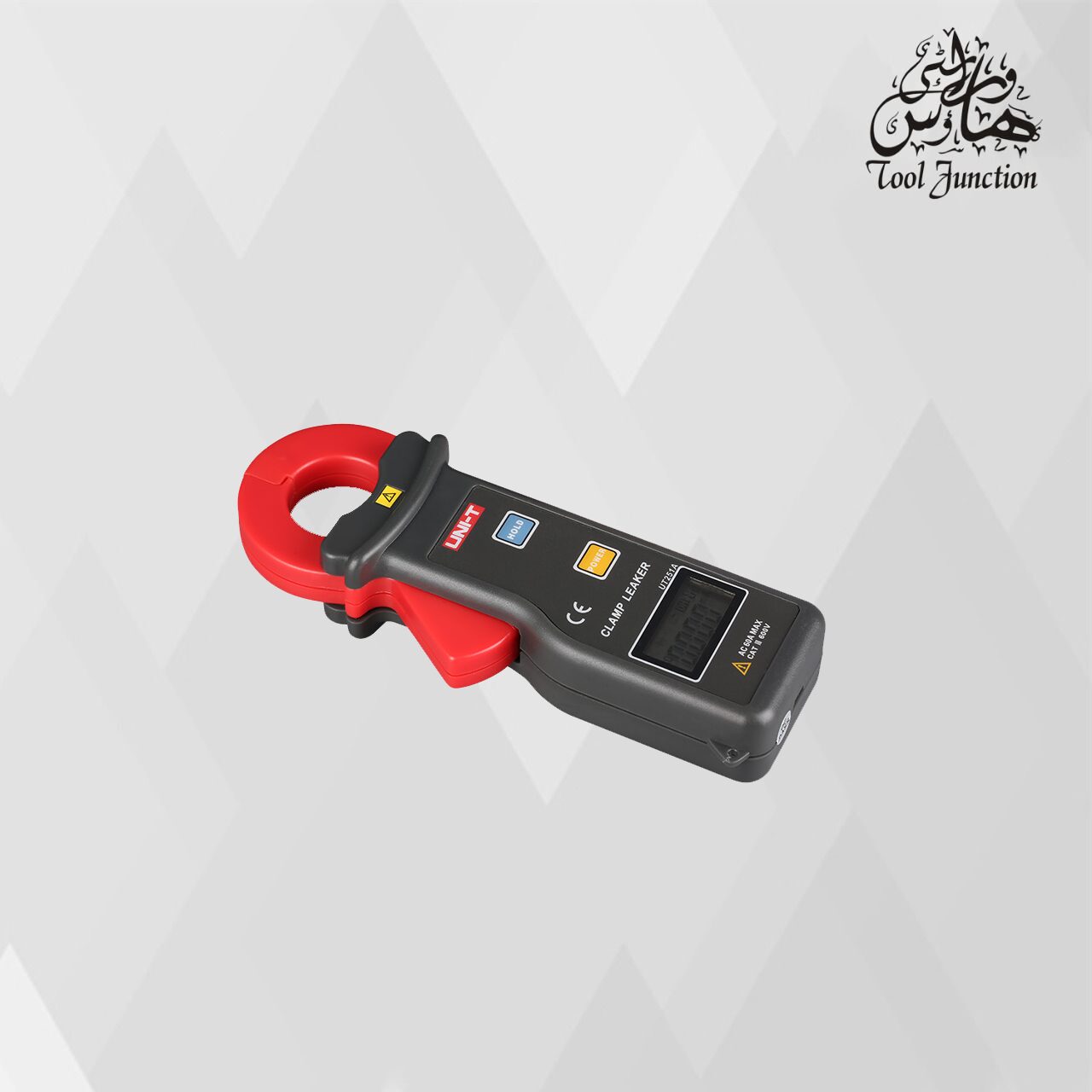

UNI-T Ut251C High Sensitivity Leakage Current Clamp Meter
UNI-T Ut251C High Sensitivity Leakage Current Clamp Meter
₨31,050
UT251C series high-accuracy high sensitivity leakage current clamp meters are designed for testing AC leakage current. These high resolution meters are great for applications such as checking leakage current for motor, home appliances and other electrical equipment up to 600A.
UT251C High Sensitivity Leakage Current Clamp Meter
UT251C series high-accuracy high sensitivity leakage current clamp meters are designed for testing AC leakage current. These high resolution meters are great for applications such as checking leakage current for motor, home appliances and other electrical equipment up to 600A.
Basic Features
1. 4-digit LCD digital display, 10000 display count
2. Auto range, 2/s sampling rate
3. Peaks hold
4. Store 99 sets of data
5. RS-232 interface
6. Data hold
7. Auto power off
8. Overload indication, low battery indication
[/su_tab]
[su_tab title=”Tech. Spec” disabled=”no” anchor=”” url=”” target=”blank” class=””]
Tech. Spec
[su_table responsive=”yes”]
Specifications |
Range |
UT251C |
| Leakage current (A) | 0.001mA～60A | ±(1.5%+5) |
| 60A～199.9A | ±(2%+5) | |
| 200A～300A | ±(3%+5) | |
| 300A～600A | ±(4%+5) | |
| Voltage (Freq.) 0V~600V (50Hz/60Hz) | √ | |
| Resolution | 1mA | |
Features |
||
| Display | 4 digits LCD | √ |
| Clamp size | 35mm x 40mm | |
| Auto range | √ | |
| RS-232 | √ | |
| Data storage | 99 | |
| Peak/Data hold | √ | |
| Overload protection | OL | √ |
| Auto power off | 5 minutes | √ |
| Low battery indication | ≤7.2V | |
| Over-range display | OL | √ |
| Test mode | Clamp CT, integral mode | √ |
General Characterisitics |
||
| Power | 9V battery (6F22) | |
| Display | 32mm x 15mm | |
| Product color | Red and grey | |
| Product net weight | 120g | |
| Product size | 175mm x 70mm x 38mm | |
| Standard accessories | Battery, RS-232 interface cable, PC software CD | |
| Standard individual packing | Gift box, carrying bag, English manual, tool box | |
| Standard quantity per carton | 6pcs | |
| Standard carton measurement | 385mm x 290mm x 115mm | |
| Standard carton gross weight | 3.3kg |
[/su_tab]
[su_tab title=”Models & Comparison” disabled=”no” anchor=”” url=”” target=”blank” class=””]
Models & Comparison
[su_table responsive=”yes”]
Specifications |
Range |
UT251A |
UT251C |
| Leakage current (A) | 0.001mA～60A | ±(1.5%+5) | ±(1.5%+5) |
| 60A～199.9A | ±(2%+5) | ||
| 200A～300A | ±(3%+5) | ||
| 300A～600A | ±(4%+5) | ||
| Voltage (Freq.) 0V~600V (50Hz/60Hz) | √ | √ | |
| Resolution | 1uA | 1mA | |
Features |
|||
| Display | 4 digits LCD | √ | √ |
| Clamp size | 25mm x 30mm | 35mm x 40mm | |
| Auto range | √ | √ | |
| RS-232 | √ | √ | |
| Data storage | 99 | 99 | |
| Peak/Data hold | √ | √ | |
| Overload protection | OL | √ | √ |
| Auto power off | 5 minutes | √ | √ |
| Low battery indication | ≤7.2V | ≤7.2V | |
| Over-range display | OL | √ | √ |
| Test mode | Clamp CT, integral mode | √ | √ |
General Characterisitics |
|||
| Power | 9V battery (6F22) | ||
| Display | 32mm x 15mm | ||
| Product color | Red and grey | ||
| Product net weight | 120g | ||
| Product size | 175mm x 70mm x 38mm | ||
| Standard accessories | Battery, RS-232 interface cable, PC software CD | ||
| Standard individual packing | Gift box, carrying bag, English manual, tool box | ||
| Standard quantity per carton | 6pcs | ||
| Standard carton measurement | 385mm x 290mm x 115mm | ||
| Standard carton gross weight | 3.3kg |
[/su_table]
[/su_tab]
[/su_tabs]
| Weight | 0.39 kg |
|---|
