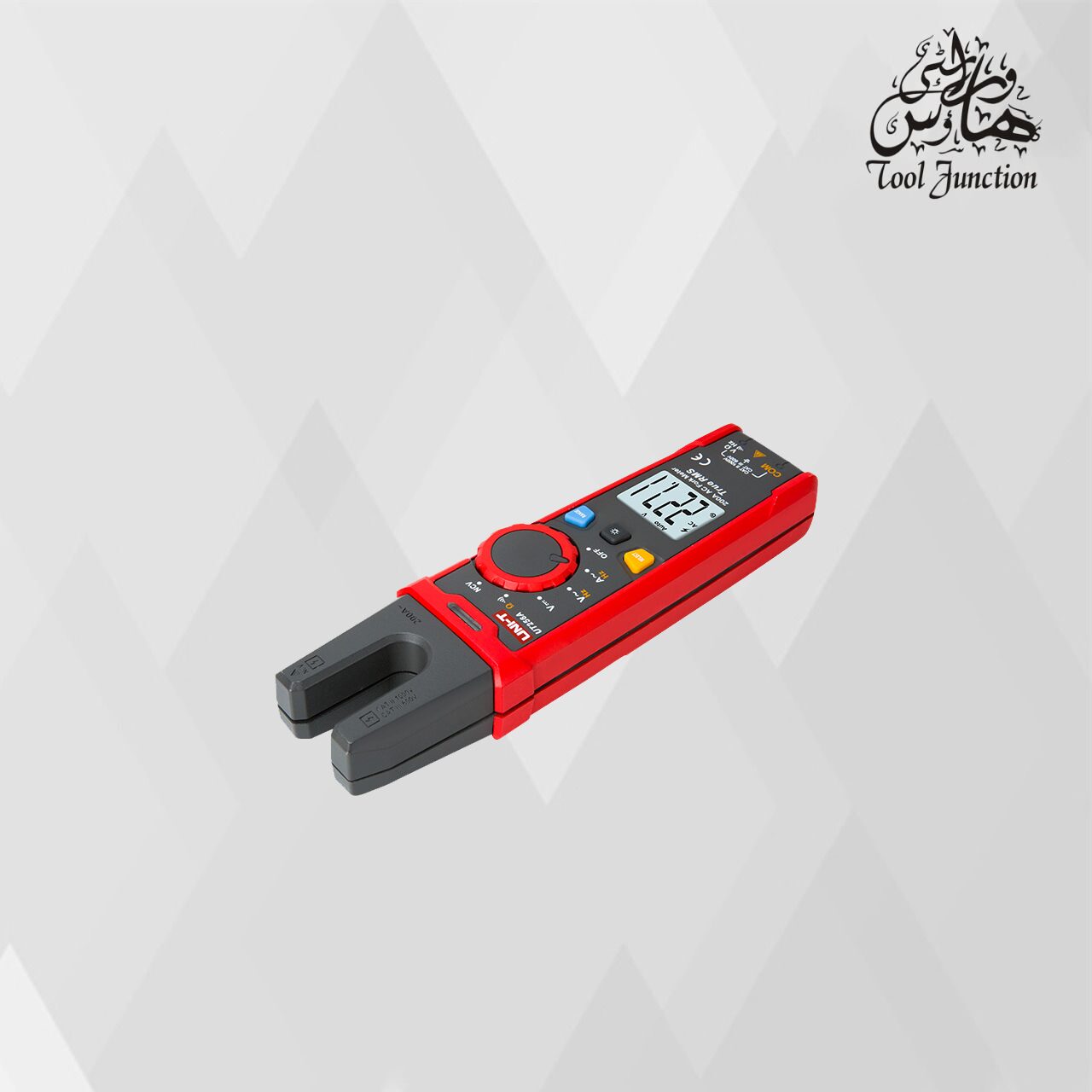

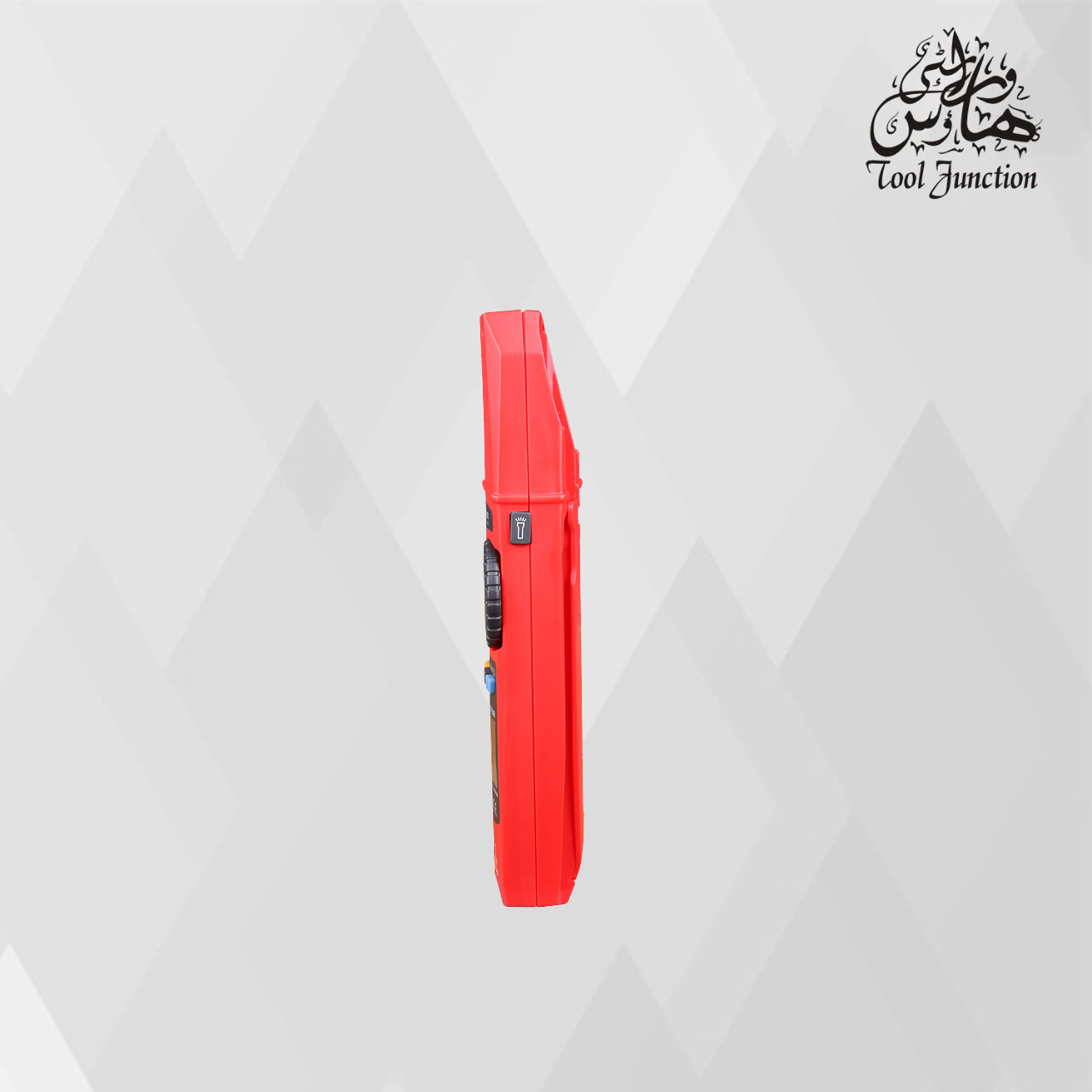

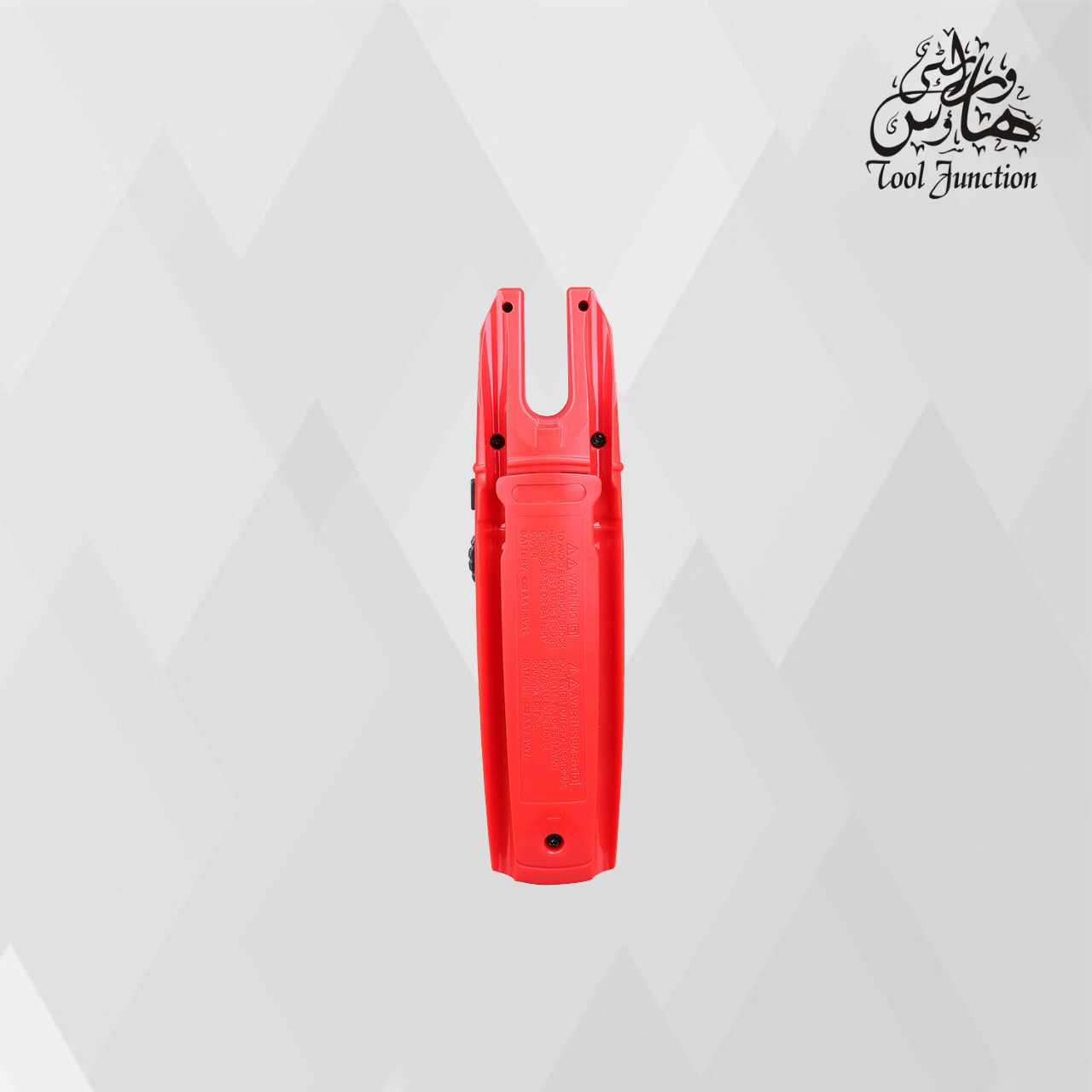

UNI-T Ut256A 200A True Rms Fork Meter
UNI-T Ut256A 200A True Rms Fork Meter
₨12,075
UT256 series are high reliable, true RMS fork meters. Its unique design allows users to measure current by simply moving the wire ofinterest inside the opening of the ‘fork’ past the labeled mark. With no mechanical parts, this meter bares no risk from any type ofmechanical failure.
Buy Now
Add to cart
| Weight | 1 kg |
|---|
Features
UT256 series are high reliable, true RMS fork meters. Its unique design allows users to measure current by simply moving the wire ofinterest inside the opening of the ‘fork’ past the labeled mark. With no mechanical parts, this meter bares no risk from any type ofmechanical failure.
Tech. Specifications
| Specifications | ||
| Model | Range | UT256A |
| AC current (A) | 200A | ±(1.8%+2) |
| AC voltage (V) | 1000V | ±(1.2%+3) |
| DC voltage (V) | 1000V | ±(0.8%+3) |
| Resistance (Ω) | 60MΩ | ±(1%+2) |
| Frequency (Hz) | 10~10kHz | ±(0.1%+5) |
| Features | ||
| Display count | 6000 | |
| Auto range | √ | |
| True RMS | √ | |
| NCV | Tricolor | |
| Data hold | √ | |
| LCD backlight | √ | |
| Auto power off | About 15 minutes | √ |
| Continuity buzzer | √ | |
| Low battery indication | ≤2.4V | √ |
| Input protection | √ | |
| Input impedance | ≥10MΩ | √ |
| General Characteristics | ||
| Power | 1.5V battery (LR6) x 2 | |
| Display | 35mm x 26mm | |
| Product color | Red and grey | |
| Product net weight | 251g; UT256B: 163.7g | |
| Product size | 217mm x 58.8mm x 38.5mm | |
| Standard accessories | Batteries, test leads | |
| Standard individual packing | Gift box, carrying bag, English manual | |
| Standard quantity per carton | 20pcs | |
| Standard carton measurement | 485mm x 310mm x 205mm | |
| Standard carton gross weight | 9.5kg | |
Model & Comparison
| Specifications | |||
| Model | Range | UT256A | UT256B |
| AC current (A) | 200A | ±(1.8%+2) | ±(2.5%+5) |
| DC current (A) | 200A | ±(2.5%+5) | |
| AC voltage (V) | 750V | ±(1.2%+3) | |
| 1000V | ±(1.2%+3) | ||
| DC voltage (V) | 1000V | ±(0.8%+3) | ±(0.8%+3) |
| Resistance (Ω) | 60MΩ | ±(1%+2) | ±(1%+2) |
| Capacitance (F) | 60mF | ±(4%+20) | |
| Frequency (Hz) | 10~10kHz | ±(0.1%+5) | |
| Features | |||
| Display count | 6000 | 6000 | |
| Auto range | √ | √ | |
| True RMS | √ | √ | |
| Diode test | About 3V | √ | |
| NCV | Tricolor | √ | |
| Data hold | √ | √ | |
| Zero mode | √ | ||
| Relative mode | √ | ||
| LCD backlight | √ | √ | |
| Auto power off | About 15 minutes | √ | √ |
| Continuity buzzer | √ | √ | |
| Low battery indication | ≤2.4V | √ | √ |
| Input protection | √ | √ | |
| Input impedance | ≥10MΩ | √ | √ |
| General Characteristics | |||
| Power | 1.5V battery (LR6) x 2 | ||
| Display | UT256A: 35mm x 26mm; UT256B: 36.5mm x 24mm | ||
| Product color | Red and grey | ||
| Product net weight | UT256A: 251g; UT256B: 163.7g | ||
| Product size | UT256A: 217mm x 58.8mm x 38.5mm;UT256B: 210mm x 53mm x 35mm | ||
| Standard accessories | Batteries, test leads | ||
| Standard individual packing | Gift box, carrying bag, English manual | ||
| Standard quantity per carton | 20pcs | ||
| Standard carton measurement | 485mm x 310mm x 205mm | ||
| Standard carton gross weight | 9.5kg | ||
