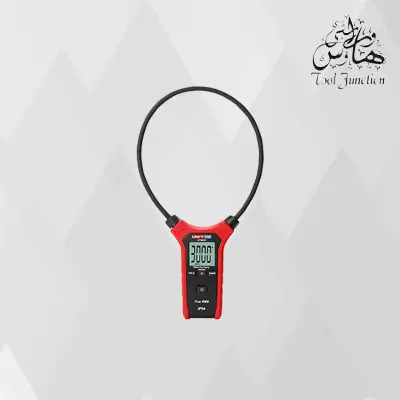

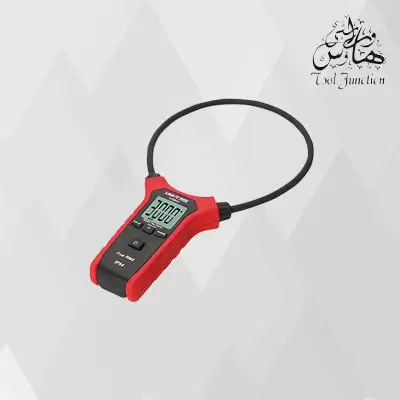

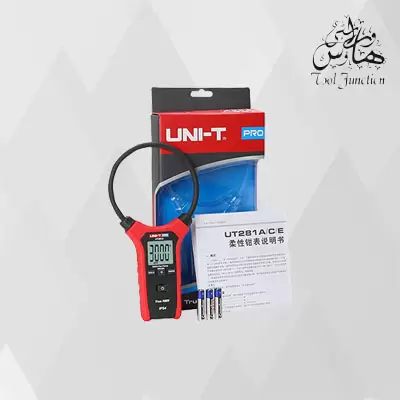

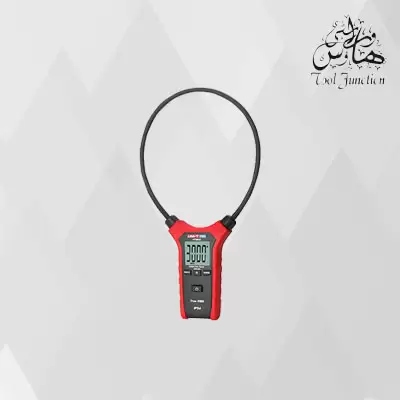

UNI-T Ut281C True Rms Flex Clamp
UNI-T Ut281C True Rms Flex Clamp
₨25,300
UT281 series can measure large currents in various harsh and hard to reach environments. They are designed with Rogowski flex coil and can test up to 3000A AC current. UT281A/C are from UNI-T’s Pro Line series, which meet IP54 and 2m drop proof requirements. Due to the ease in operation, accurate readings, stable performance and reliable quality, these flex clamps are ideal tools for electricians.
Buy Now
Add to cart
| Weight | 0.85 kg |
|---|
Basic Features
1. 2m drop proof, ETL/Intertek certified 3rd edition CE
2. Coil diameter: 0.75cm, bending length: 45.7cm
3. Large LCD display for clear reading
4. True RMS
5. Long press INRUSH key for 2s to measure inrush current
6. Data hold, backlight, auto power off
Tech. Spec
Specifications | Range | UT281C |
| AC current (A) | 30A/300A/3000A | ±(3%+5) |
| Frequency response | 45Hz~500Hz (sine wave) | √ |
| Inrush current | 0.5A~3000A (for reference) | √ |
| Features | ||
| Range selection | Manual | |
| Flex coil size | 18” (45.7cm) radius: 3.1”(8cm) | |
| Display count | 3000 | |
| Refresh rate | 3 times/s | |
| True RMS | √ | |
| Display interface (LCD) | Single | |
| Data hold/Buzzer | √ | |
| Auto power off | √ | |
| Low battery indication | √ | |
| Backlight/Function selection | √ | |
| 2m drop test | √ | |
| IP rating | IP54 | |
General Characterisitics | ||
| Power | 1.5V battery (R03) x 3 | |
| Display | 32 x 34mm (1.8 inches) | |
| Product color | Red and grey | |
| Product net weight | 236g | |
| Product size | 350mm x 190mm x 55mm | |
| Standard accessories | Batteries | |
| Standard individual packing | Gift box, blister, English manual | |
| Standard quantity per carton | 8pcs | |
| Standard carton measurement | 420mm x 355mm x 425mm | |
| Standard carton gross weight | 6.2kg |
Models & Comparison
Specifications | Range | UT281A | UT281C | UT281E |
| AC current (A) | 30A/300A/3000A | ±(3%+5) | ±(3%+5) | ±(3%+5) |
| Frequency response | 45Hz~500Hz (sine wave) | √ | √ | √ |
| Inrush current | 0.5A~3000A (for reference) | √ | √ | √ |
| AC voltage (V) | 600V | ±(1.2%+3) | ||
| Resistance (Ω) | 60MΩ | ±(1.2%+3) | ||
| Frequency (Hz) | 20Hz~30kHz | ±(1%+2) | ||
Features | ||||
| Range selection | Manual | Manual | Auto (manual range available in current measurement) | |
| Flex coil size | 10”(25.4cm) radius: 1.5”(3.8cm) | 18” (45.7cm) radius: 3.1”(8cm) | 18” (45.7cm) radius: 3.1” (8cm) | |
| Display count | 3000 | 3000 | 6000 (3000 in current measurement) | |
| Refresh rate | 3 times/s | 3 times/s | 3 times/s | |
| True RMS | √ | √ | √ | |
| Display interface (LCD) | Single | Single | Dual | |
| Data hold/Buzzer | √ | √ | √ | |
| Auto power off | √ | √ | √ | |
| Low battery indication | √ | √ | √ | |
| Backlight/Function selection | √ | √ | √ | |
| 2m drop test | √ | √ | √ | |
| IP rating | IP54 | IP54 | ||
General Characterisitics | ||||
| Power | 1.5V battery (R03) x 3 | |||
| Display | 32 x 34mm (1.8 inches) | |||
| Product color | Red and grey | |||
| Product net weight | UT281A: 220g; UT281C: 236g; UT281E: 250g | |||
| Product size | UT281A: 300mm x 150mm x 55mm; UT281C: 350mm x 190mm x 55mm; UT281E: 325mm x 180mm x 30mm | |||
| Standard accessories | Batteries, PC software CD (UT281A), test leads (UT281E) | |||
| Standard individual packing | Gift box, blister, English manual | |||
| Standard quantity per carton | UT281A/UT281C: 8pcs; UT281E: 10pcs | |||
| Standard carton measurement | UT281A: 580mm x 380mm x 180mm; UT281C: 420mm x 355mm x 425mm; UT281E: 435mm x 380mm x 245mm | |||
| Standard carton gross weight | UT281A: 4.9kg; UT281C: 6.2kg; UT281E: 6.3kg |
