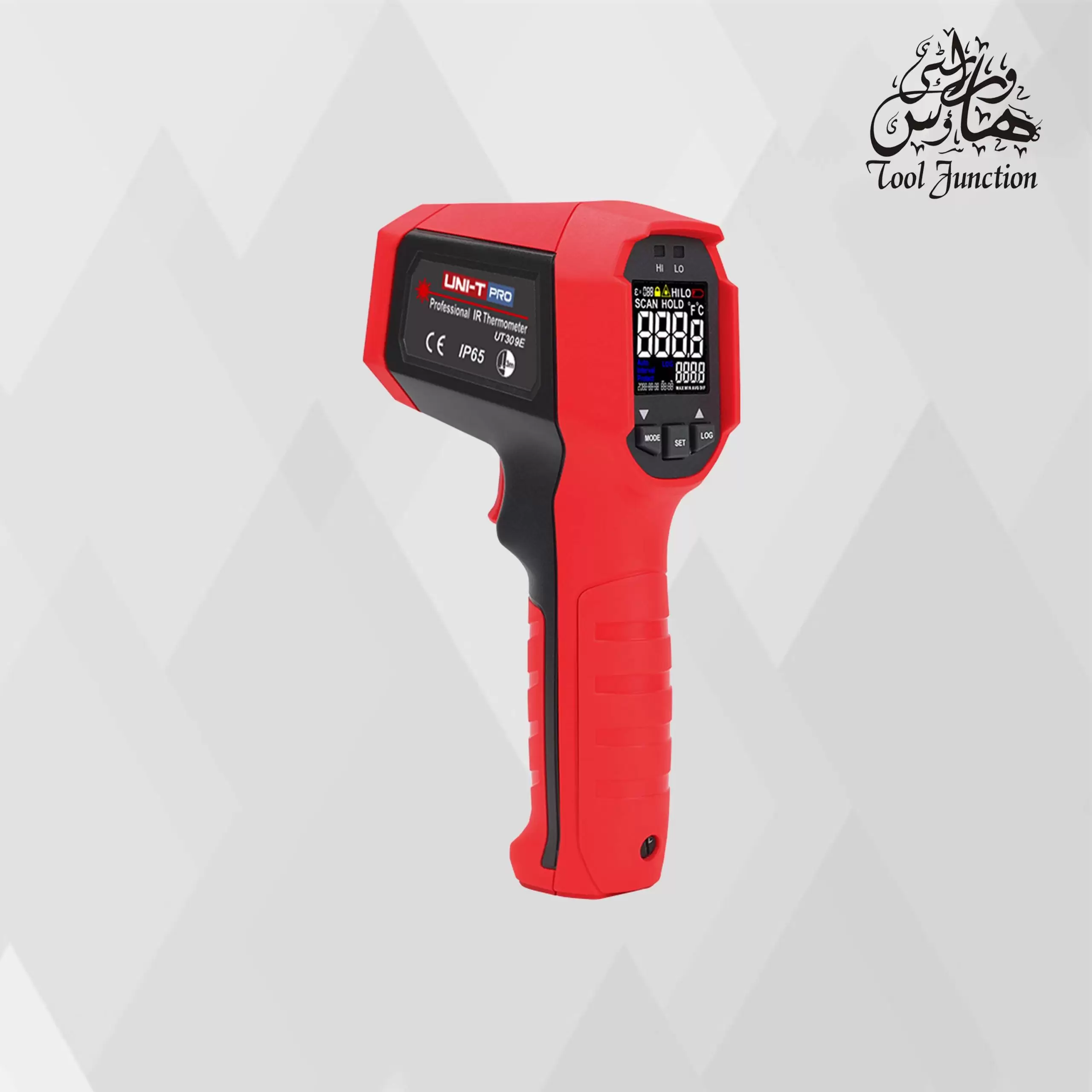

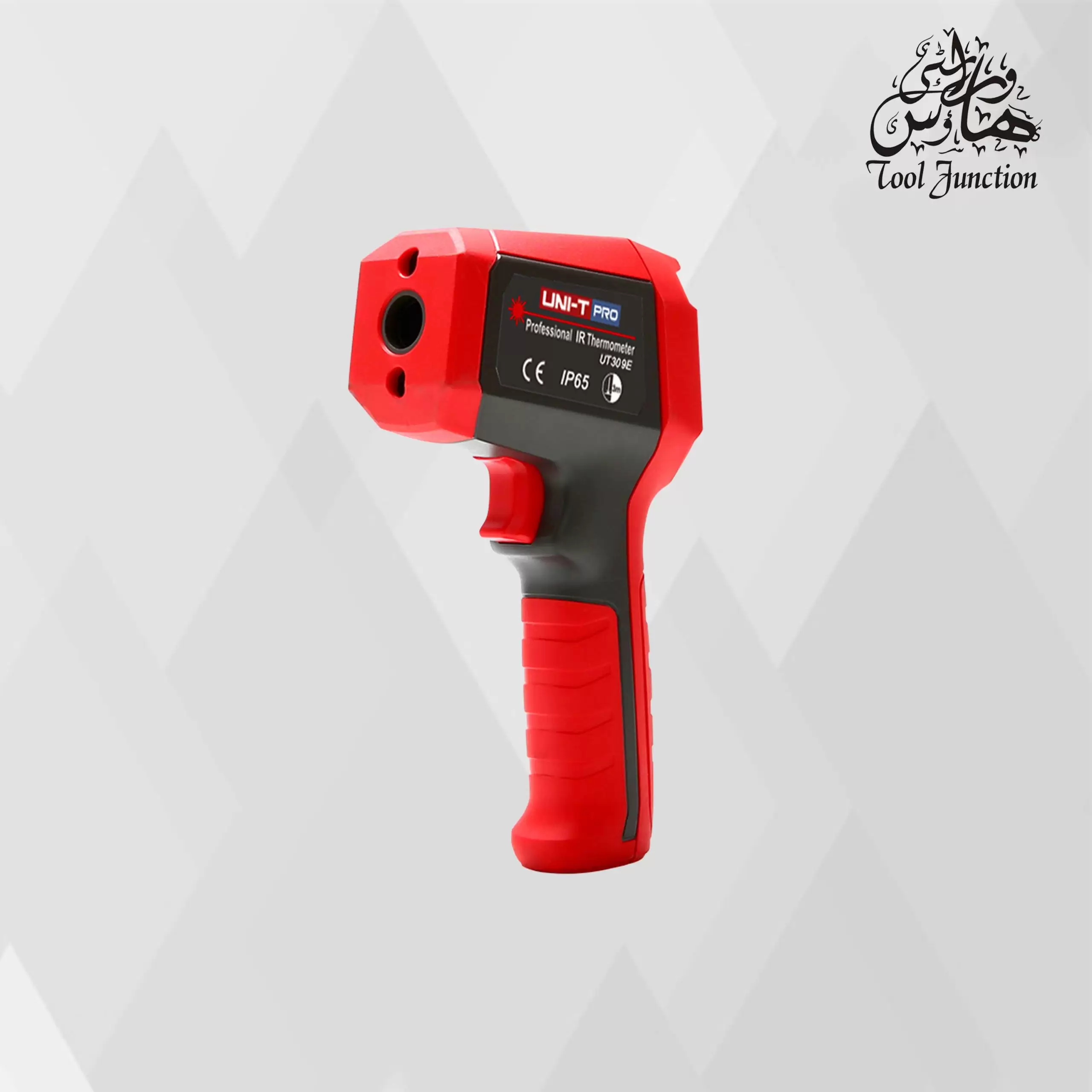

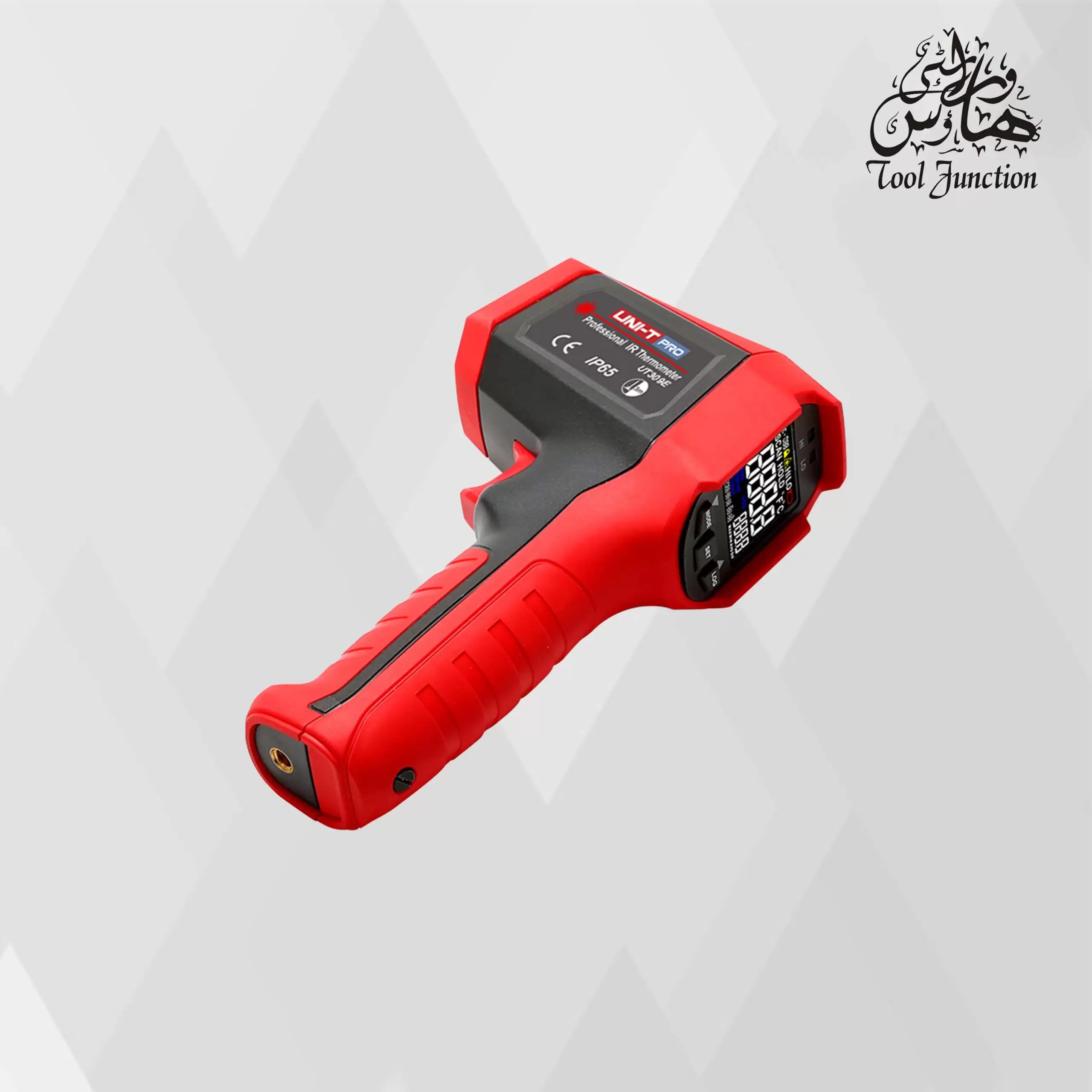

UNI-T Ut309E Professional Infrared Thermometer
UNI-T Ut309E Professional Infrared Thermometer
₨20,700
UT309 series professional infrared thermometer can determine surface temperature through the energy radiated by the target surface. It is designed to meet some of the highest protection ratings in UNI-T’s product line, IP65 and 3m drop proof. With a rapid response rate of 250ms, high measurement accuracy, and multiple scanning modes, UT309 proves to be a necessary tool for engineers and technicians working in a various fields such as electrical distribution inspection, HVACR maintenance, transportation equipment inspection, instrument repair, and many more.
Buy Now
Add to cart
| Weight | 5 kg |
|---|
Features
1. Color EBTN screen, 20:1 D:S ratio, 99 sets of data storage, time scheduled measurement
Tech. Spec
| Specifications | UT309E |
| Temperature range | -35℃~850℃ |
| -31℉~ 1562℉ | |
| Accuracy | ≥0℃: ±1.8℃ or ±1.8% |
| <0℃: ±(1.8℃+0.1℃/℃) | |
| ≥32℉: ±3.6℉ or ±1.8% | |
| <32℉: ±(3.6℉+0.1℉/℉) | |
| D:S ratio | 20:01 |
| Response time | <250ms |
| Emissivity | 0.95 (default); 0.1~1.0 (adjustable) |
| Spectral response | 8um~14um |
| Laser power | < 1mW |
| Features | |
| Auto power off | √ |
| Low battery indication | √ |
| LCD display | Color EBTN |
| High/low LED alarm | √ |
| Data hold | √ |
| ℃/℉ selection | √ |
| MAX/MIN/AVG/DIFF mode | √ |
| Lock measurement | √ |
| Dual lasers | √ |
| Data storage with date and time | 99 |
| Scheduled measurement | √ |
| Monitoring measurement | √ |
| Protective function | √ |
| Operating temperature | 0℃~50℃ (32℉~122℉) |
| Storage temperature | -20℃~60℃ (-4℉~140℉) |
| Operating humidity | <90%RH (non-condensing) |
| Drop test | 3m |
| IP rating | IP65 |
| General Characterisitics | |
| Power | 9V battery |
| Display | 32mm x 32mm |
| Product color | Red and grey |
| Product net weight | 292g |
| Product size | 189mm x 118mm x 55mm |
| Standard accessories | Battery, carrying bag |
| Standard individual packing | Gift box, blister, English manual |
| Standard quantity per carton | 10pcs |
| Standard carton measurement | 475mm x 335mm x 325mm |
| Standard carton gross weight | 5.8kg |
Models & Comparison
| Specifications | UT309E |
| Temperature range | -35℃~850℃ |
| -31℉~ 1562℉ | |
| Accuracy | ≥0℃: ±1.8℃ or ±1.8% |
| <0℃: ±(1.8℃+0.1℃/℃) | |
| ≥32℉: ±3.6℉ or ±1.8% | |
| <32℉: ±(3.6℉+0.1℉/℉) | |
| D:S ratio | 20:01 |
| Response time | <250ms |
| Emissivity | 0.95 (default); 0.1~1.0 (adjustable) |
| Spectral response | 8um~14um |
| Laser power | < 1mW |
| Features | |
| Auto power off | √ |
| Low battery indication | √ |
| LCD display | Color EBTN |
| High/low LED alarm | √ |
| Data hold | √ |
| ℃/℉ selection | √ |
| MAX/MIN/AVG/DIFF mode | √ |
| Lock measurement | √ |
| Dual lasers | √ |
| Data storage with date and time | 99 |
| Scheduled measurement | √ |
| Monitoring measurement | √ |
| Protective function | √ |
| Operating temperature | 0℃~50℃ (32℉~122℉) |
| Storage temperature | -20℃~60℃ (-4℉~140℉) |
| Operating humidity | <90%RH (non-condensing) |
| Drop test | 3m |
| IP rating | IP65 |
| General Characterisitics | |
| Power | 9V battery |
| Display | 32mm x 32mm |
| Product color | Red and grey |
| Product net weight | 292g |
| Product size | 189mm x 118mm x 55mm |
| Standard accessories | Battery, carrying bag |
| Standard individual packing | Gift box, blister, English manual |
| Standard quantity per carton | 10pcs |
| Standard carton measurement | 475mm x 335mm x 325mm |
| Standard carton gross weight | 5.8kg |
