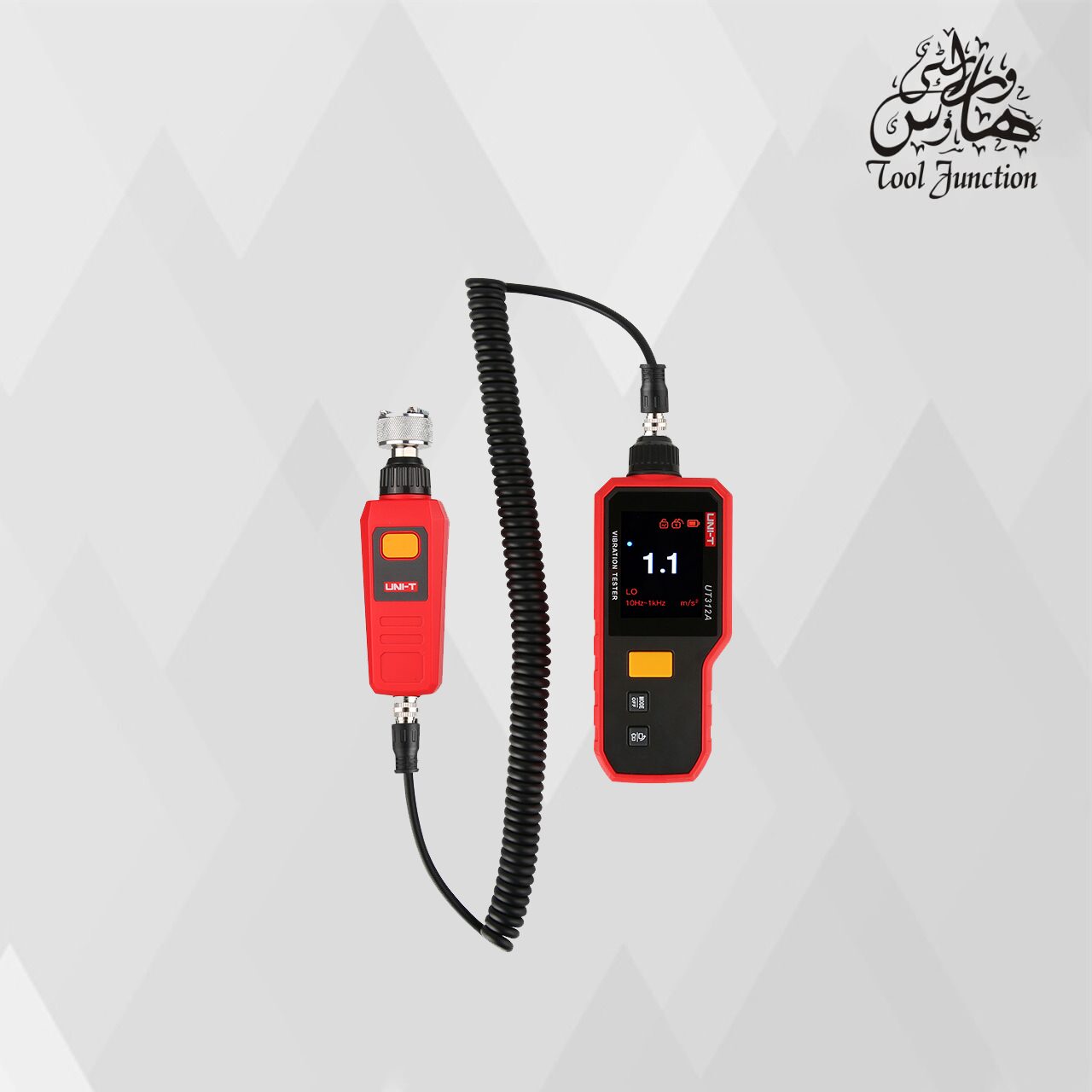

UT311A Series Vibration Testers
UT311A Series Vibration Testers
Features
● Acceleration/velocity/displacement measurement
● High/low frequency acceleration modes
● Multiple probes
● High sensitivity sensor
● Come with flashlight
● LCD TFT and automatically rotatable screen
● Rechargeable lithium battery
● Simple design and compact structure
Specifications
Specifications
| Sepecification | UT311A | UT312A | ||
| Parameter | Range | Frequency | Resolution | Accuracy |
| Acceleration(PEAK) | 0.1-199.9m/s² | LO: 10Hz-1kHz | 0.1m/s² | ±(5%+2dgts) |
| HI: 1kHz-15kHz | ||||
| Velocity(RMS) | 0.1-199.9mm/s | 10Hz-1.5kHz | 0.1mm/s | |
| Displacement(P-P) | 0.001-1.999mm | 10Hz-1kHz | 0.001mm | ±(10%+2dgts) |
| Automatically rotatable screen | √ | |||
| High/Low frequency acceleration | √ | |||
| Datahold | √ | |||
| Flashlight | √ | |||
| LCD type | 2.4″ TFT color screen, full view | |||
| LCD backlight | √ | |||
| Auto power off | 5 minutes without operation | |||
| Probes | Long and short probes (optional), magnetic sucker (UT312A only) | |||
| Battery indication | √ | |||
| Battery type | 1350mAh/3.7V lithium battery | |||
| Charging interface | Type-C | |||
| Charging voltage | DC 5V | |||
| Charging time | About 3h | |||
| Battery duration | About 12h | |||
| Operating temperature and humidity | 0℃~40℃; ≤80%RH, non-condensing | |||
| Storage temperature | -20℃~60℃ | |||
| General Characteristics | ||||
| Standard accessories | Long and short probe, U-type magnetic sucker (UT312A only), USB-C charging cable, User manual, Safety instructions | |||
| Productsize | UT311A: 180×28×64mm (including the short probe); UT312A: 168×28×64mm | |||
| Product weight | UT311A: About 191g (including the short probe); UT312A: About 364g (including the short probe) | |||
