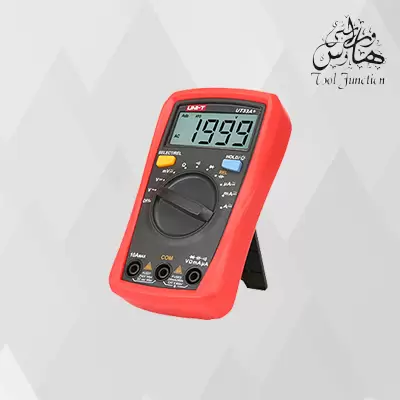

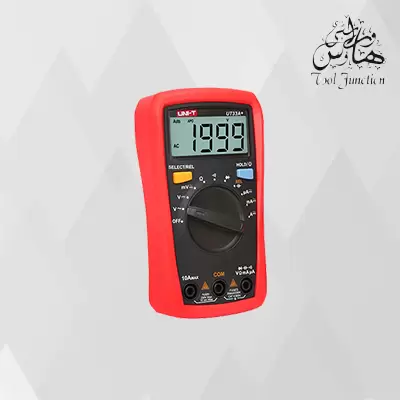

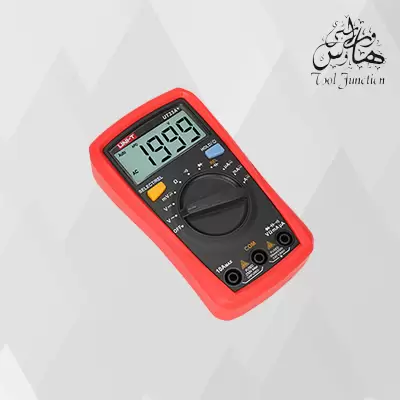

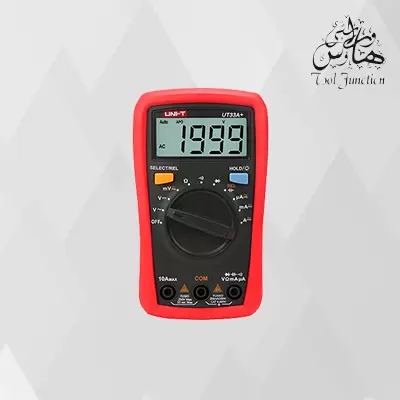

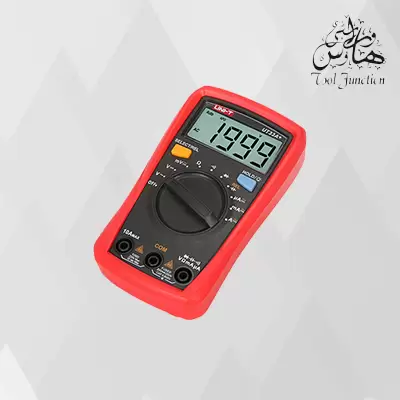

UNI-T Ut33A+ Palm Size Multimeter
UNI-T Ut33A+ Palm Size Multimeter
The new generation UT33+ series redefines the performance standards for entry-level digital multimeters. Our innovative industrial design ensures that these products can withstand 2 meters drop. The new LCD display layout provides a better user experience. This series ensures that users can work safely in CAT II 600V environment. Special features are, 2mF capacitance test (UT33A+); battery test (UT33B+); temperature measurement function (UT33C+); non-contact voltage (NCV) test (UT33D+).
UT33A+ Palm Size Multimeter
Portable palm size digital multimeter.
2.1″ clear LCD screen with backlight function.
Auto power off and auto backlight off, more power saving.
Test AC/DC voltage, resistance, continuity buzzer, test diode, capacitance, AC/DC current.
Upgraded features: auto range, data hold, capacitance measurement, bigger LCD screen,
relative value, and 2.2mm thickened protective case, etc.
2.2mm thickened silicone case, protect the multimeter and comfort handheld feeling.
Low battery indication.
| Weight | 1 kg |
|---|
Basic Features
1. Clear LCD display
2. Comfortable protective cover, with test lead hanging groove
3. 2 meters drop test, precision protection
4. Loud buzzer sound; Ergonomic design
Tech. Spec
Specifications |
Range |
UT33A+ |
| DC voltage (V) | 200mV/2V/20V/200V/600V | ±(0.5%＋2) |
| AC voltage (V) | 600V | ±(0.7%+3) |
| DC current (A) | 10A | ±(1%+2) |
| AC current (A) | 10A | ±(1.2%+3) |
| Resistance (Ω) | 200Ω/2kΩ/20kΩ/200kΩ /2MΩ/20MΩ/200MΩ |
±(0.8%+2) |
| Capacitance (F) | 2mF | ±(4%+8) |
Features |
||
| Display count | 2000 | |
| Auto power off/Auto backlight off | √ | |
| Diode test/Continuity buzzer | √ | |
| 2m drop test/ Test probe holder | √ | |
| Range selection | Auto | |
General Characteristics |
||
| Power | 1.5V battery (R03) x 2 | |
| Display | 66mm x 51mm | |
| Product net weight | Red and grey | |
| Product color | 206g (batteries included) | |
| Product size | 134mm x 77mm x 47mm | |
| Standard accessories | Batteries, test leads | |
| Standard individual packing | Gift box, English manual | |
| Standard quantity per carton | 60pcs | |
| Standard carton measurement | 640mm x 310mm x 350mm | |
| Standard carton gross weight | 18.6kg |
Models & Comparison
Specifications |
Range |
UT33A+ |
UT33B+ |
UT33C+ |
UT33D+ |
| DC voltage (V) | 200mV/2V/20V/200V/600V | ±(0.5%＋2) | ±(0.5%＋2) | ±(0.5%＋2) | ±(0.5%＋2) |
| AC voltage (V) | 600V | ±(0.7%+3) | |||
| 200V/600V | ±(1.2%+3) | ±(1.2%+3) | ±(1.2%+3) | ||
| DC current (A) | 10A | ±(1%+2) | |||
| 200μA/200mA/10A | ±(1%+2) | ||||
| 2000μA/20mA/200mA/10A | ±(1%+2) | ±(1%+2) | |||
| AC current (A) | 10A | ±(1.2%+3) | |||
| Resistance (Ω) | 200Ω/2kΩ/20kΩ/200kΩ /2MΩ/20MΩ/200MΩ |
±(0.8%+2) | |||
| 200Ω/2kΩ/20kΩ /200kΩ/20MΩ/200MΩ |
±(0.8%+2) | ||||
| 200Ω/2kΩ/20kΩ /200kΩ/20MΩ |
±(0.8%+2) | ±(0.8%+2) | |||
| Capacitance (F) | 2mF | ±(4%+8) | |||
| Temperature | -40℃~1000℃ | ±(1%+4) | |||
| -40℉~1832℉ | ±(1.5%+5) | ||||
Features |
|||||
| Display count | 2000 | 2000 | 2000 | 2000 | |
| Auto power off/Auto backlight off | √ | √ | √ | √ | |
| Diode test/Continuity buzzer | √ | √ | √ | √ | |
| 2m drop test/ Test probe holder | √ | √ | √ | √ | |
| Range selection | Auto | Manual | Manual | Manual | |
| Battery test | 1.5V/9V/12V | ||||
| NCV | √ | ||||
General Characteristics |
|||||
| Power | 1.5V battery (R03) x 2 | ||||
| Display | 66mm x 51mm | ||||
| Product net weight | Red and grey | ||||
| Product color | 206g (batteries included) | ||||
| Product size | 134mm x 77mm x 47mm | ||||
| Standard accessories | Batteries, test leads | ||||
| Standard individual packing | Gift box, English manual | ||||
| Standard quantity per carton | 60pcs | ||||
| Standard carton measurement | 640mm x 310mm x 350mm | ||||
| Standard carton gross weight | 18.6kg |
