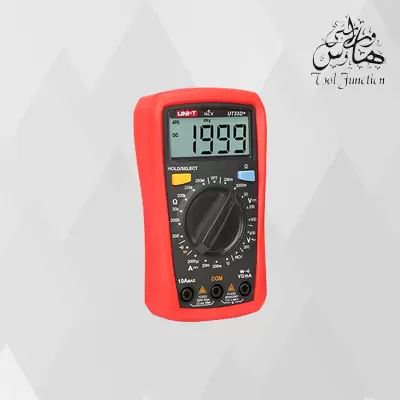

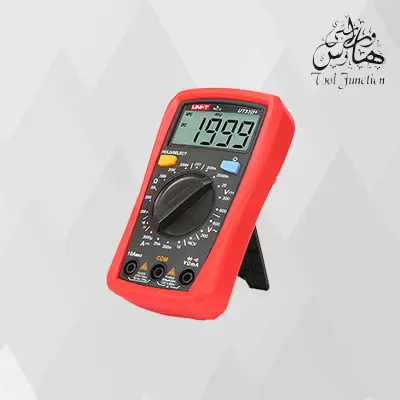

UNI-T Ut33D+ Palm Size Multimeter

1,815

The new generation UT33+ series redefines the performance standards for entry-level digital multimeters. Our innovative industrial design ensures that these products can withstand 2 meters drop. The new LCD display layout provides a better user experience. This series ensures that users can work safely in CAT II 600V environment. Special features are, 2mF capacitance test (UT33A+); battery test (UT33B+); temperature measurement function (UT33C+); non-contact voltage (NCV) test (UT33D+).

1,815

Buy Now
Add to cart

84 / 100

UT33D+ Palm Size Multimeter

The new generation UT33+ series redefines the performance standards for entry-level digital multimeters. Our innovative industrial design ensures that these products can withstand 2 meters drop. The new LCD display layout provides a better user experience. This series ensures that users can work safely in CAT II 600V environment. Special features are, 2mF capacitance test (UT33A+); battery test (UT33B+); temperature measurement function (UT33C+); UT33D + for the NCV non-contact with electricity, resistance range up to 200MΩ entry-level digital multimeter; is the electrical priority of the digital multimeter.

UNI-T UT33D+ is a pocket size digital multimeter which can measure AC/DC voltage, DC current, resistance, tests diodes and checking continuity, non-contact voltage detection (NCV).

Features  of UNI-T UT33D+ Digital Multimeter:

  • Measurement functions:
    • AC/DC voltage
    • DC current
    • resistance
    • continuity test (with buzzer)
    • diode test
    • non-contact voltage detection (NCV)
  • Data Hold function
  • Low battery indication
Weight 1 kg

Basic Features

84 / 100

1. Clear LCD display
2. Comfortable protective cover, with test lead hanging groove
3. 2 meters drop test, precision protection
4. Loud buzzer sound; Ergonomic design

Tech. Spec

84 / 100

Specifications

Range

UT33D+

DC voltage (V) 200mV/2V/20V/200V/600V ±(0.5%+2)
AC voltage (V) 200V/600V ±(1.2%+3)
DC current (A) 2000μA/20mA/200mA/10A ±(1%+2)
Resistance (Ω) 200Ω/2kΩ/20kΩ
/200kΩ/20MΩ/200MΩ
±(0.8%+2)

Features

Display count 2000
Auto power off/Auto backlight off
Diode test/Continuity buzzer
2m drop test/ Test probe holder
Range selection Manual
Battery test 1.5V/9V/12V

General Characteristics

Power 1.5V battery (R03) x 2
Display 66mm x 51mm
Product net weight Red and grey
Product color 206g (batteries included)
Product size 134mm x 77mm x 47mm
Standard accessories Batteries, test leads
Standard individual packing Gift box, English manual
Standard quantity per carton 60pcs
Standard carton measurement 640mm x 310mm x 350mm
Standard carton gross weight 19.4kg

Models & Comparison

84 / 100

Specifications

Range

UT33A+

UT33B+

UT33C+

UT33D+

DC voltage (V) 200mV/2V/20V/200V/600V ±(0.5%+2) ±(0.5%+2) ±(0.5%+2) ±(0.5%+2)
AC voltage (V) 600V ±(0.7%+3)
200V/600V ±(1.2%+3) ±(1.2%+3) ±(1.2%+3)
DC current (A) 10A ±(1%+2)
200μA/200mA/10A ±(1%+2)
2000μA/20mA/200mA/10A ±(1%+2) ±(1%+2)
AC current (A) 10A ±(1.2%+3)
Resistance (Ω) 200Ω/2kΩ/20kΩ/200kΩ
/2MΩ/20MΩ/200MΩ
±(0.8%+2)
200Ω/2kΩ/20kΩ
/200kΩ/20MΩ/200MΩ
±(0.8%+2)
200Ω/2kΩ/20kΩ
/200kΩ/20MΩ
±(0.8%+2) ±(0.8%+2)
Capacitance (F) 2mF ±(4%+8)
Temperature -40℃~1000℃ ±(1%+4)
-40℉~1832℉ ±(1.5%+5)

Features

Display count 2000 2000 2000 2000
Auto power off/Auto backlight off
Diode test/Continuity buzzer
2m drop test/ Test probe holder
Range selection Auto Manual Manual Manual
Battery test 1.5V/9V/12V
NCV

General Characteristics

Power 1.5V battery (R03) x 2
Display 66mm x 51mm
Product net weight Red and grey
Product color 206g (batteries included)
Product size 134mm x 77mm x 47mm
Standard accessories Batteries, test leads, K-type thermocouple (UT33C+)
Standard individual packing Gift box, English manual
Standard quantity per carton 60pcs
Standard carton measurement 640mm x 310mm x 350mm
Standard carton gross weight UT33A+: 18.6kg; UT33B+: 19.4kg; UT33C+: 20.6kg; UT33D+: 19.8kg
