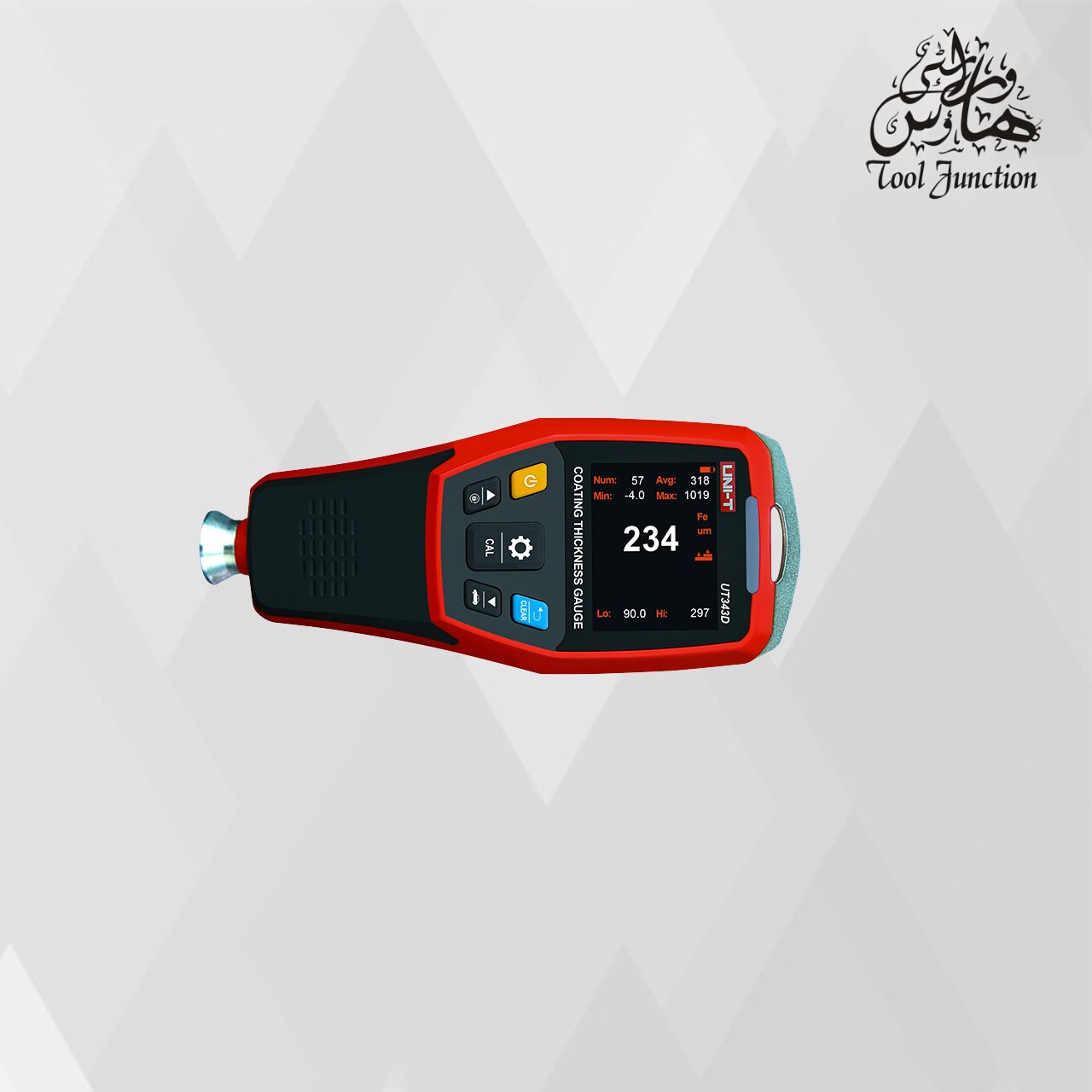

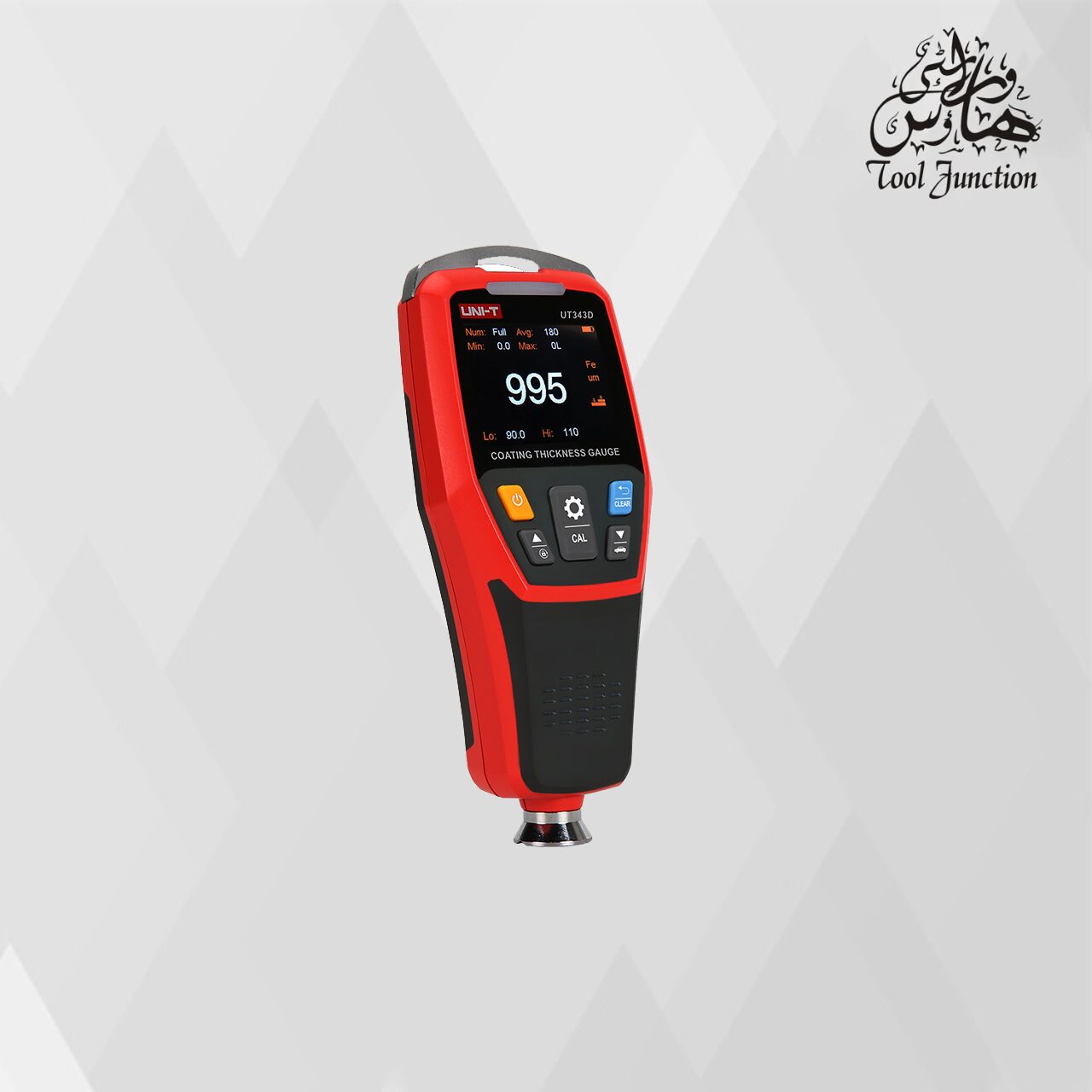

UNI-T Ut343D Coating Thickness Gauge
UNI-T Ut343D Coating Thickness Gauge
₨31,050
UT343D coating thickness gauge can measure coating thickness on ferrous and non-ferrous materials. This device is designed with a unique quick test feature, which allows users to set thickness range and using a 3-color LED and audio alarm to quickly determine if coating being tested falls within the preset range, greatly increasing work efficiency.
UT343 display is auto rotatable. This CE certified device can store up to 500 sets of data for further analysis through the PC analytical software that is included.
Buy Now
Add to cart
| Weight | 5 kg |
|---|
Basic Features
UT343D coating thickness gauge can measure coating thickness on ferrous and non-ferrous materials. This device is designed with a unique quick test feature, which allows users to set thickness range and using a 3-color LED and audio alarm to quickly determine if coating being tested falls within the preset range, greatly increasing work efficiency.
UT343 display is auto rotatable. This CE certified device can store up to 500 sets of data for further analysis through the PC analytical software that is included.
Tech. Spec
Specifications | Range |
| Measuring range | 0~1250um |
| Accuracy | ±(3%H+1)um |
| Resolution | 0.1um (0~99.9um); 1um (100~1250um) |
| Measurement method | Single/Continuous |
| Measurement mode | Max/Min/Avg |
| Metal type | Ferrous/ non-ferrous |
Features | |
| Display type | 2.0-inches TFT LCD (320 x 240 pixels) |
| LCD brightness control | √ |
| Auto rotatable screen | √ |
| Unit conversion | √ |
| Audio alarm | √ |
| LED alarm | √ |
| PC analysis software | √ |
| USB communication | √ |
| Quick test mode | √ |
| Data storage | 500 groups |
| Auto power off | √ |
| Low battery indication | √ |
General Characterisitics | |
| Power | 3V battery (R03) x 2 |
| Display | 48mm x 36mm |
| Product color | Red and grey |
| Product net weight | 175g |
| Product size | 153.5mm x 64.5mm x 41mm |
| Standard accessories | Micro USB interface cable, standard piece, batteries, cloth bag |
| Standard individual packing | Gift box, English manual |
| Standard quantity per carton | 20pcs |
| Standard carton measurement | 355mm x 320mm x 195mm |
| Standard carton gross weight | 7.5kg |
