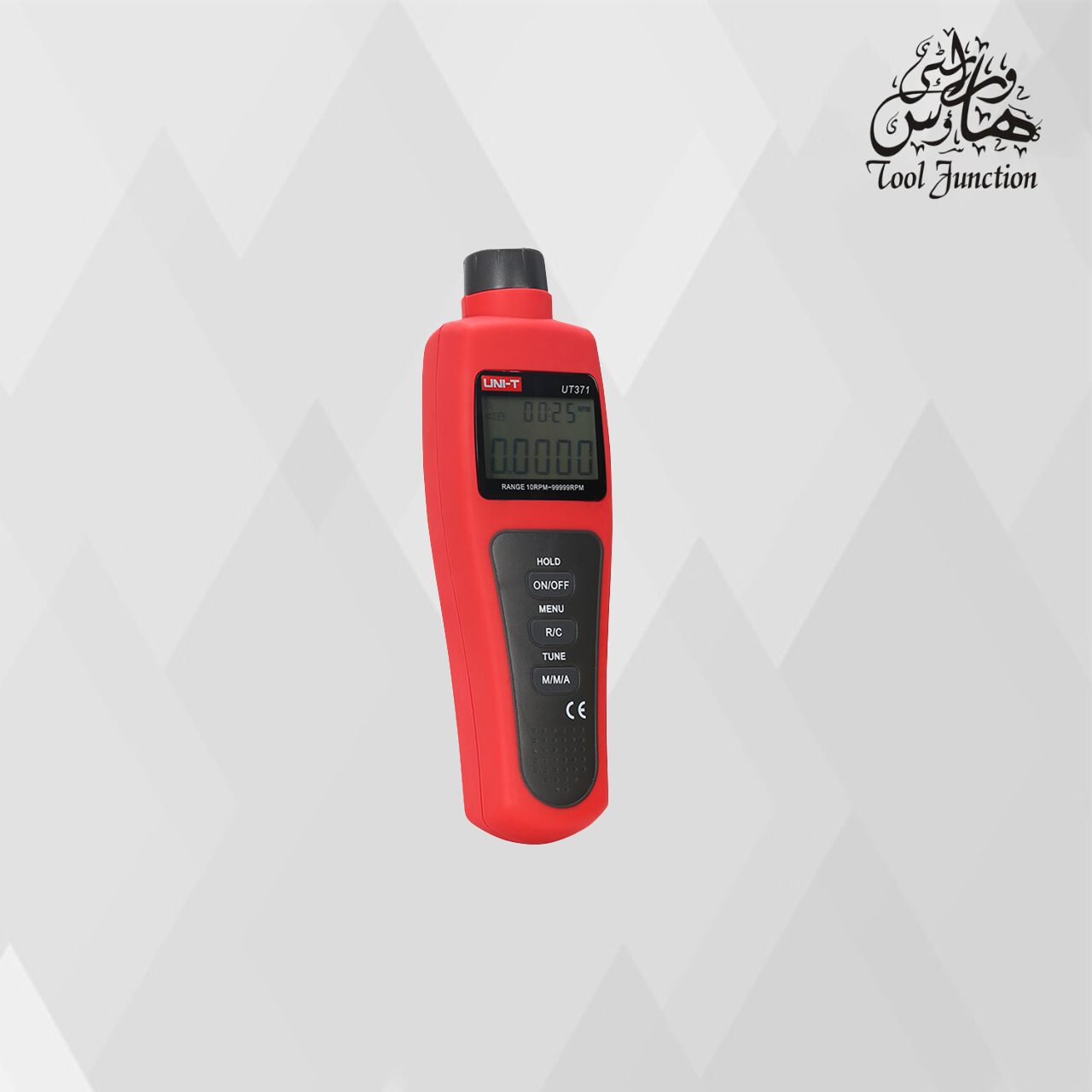

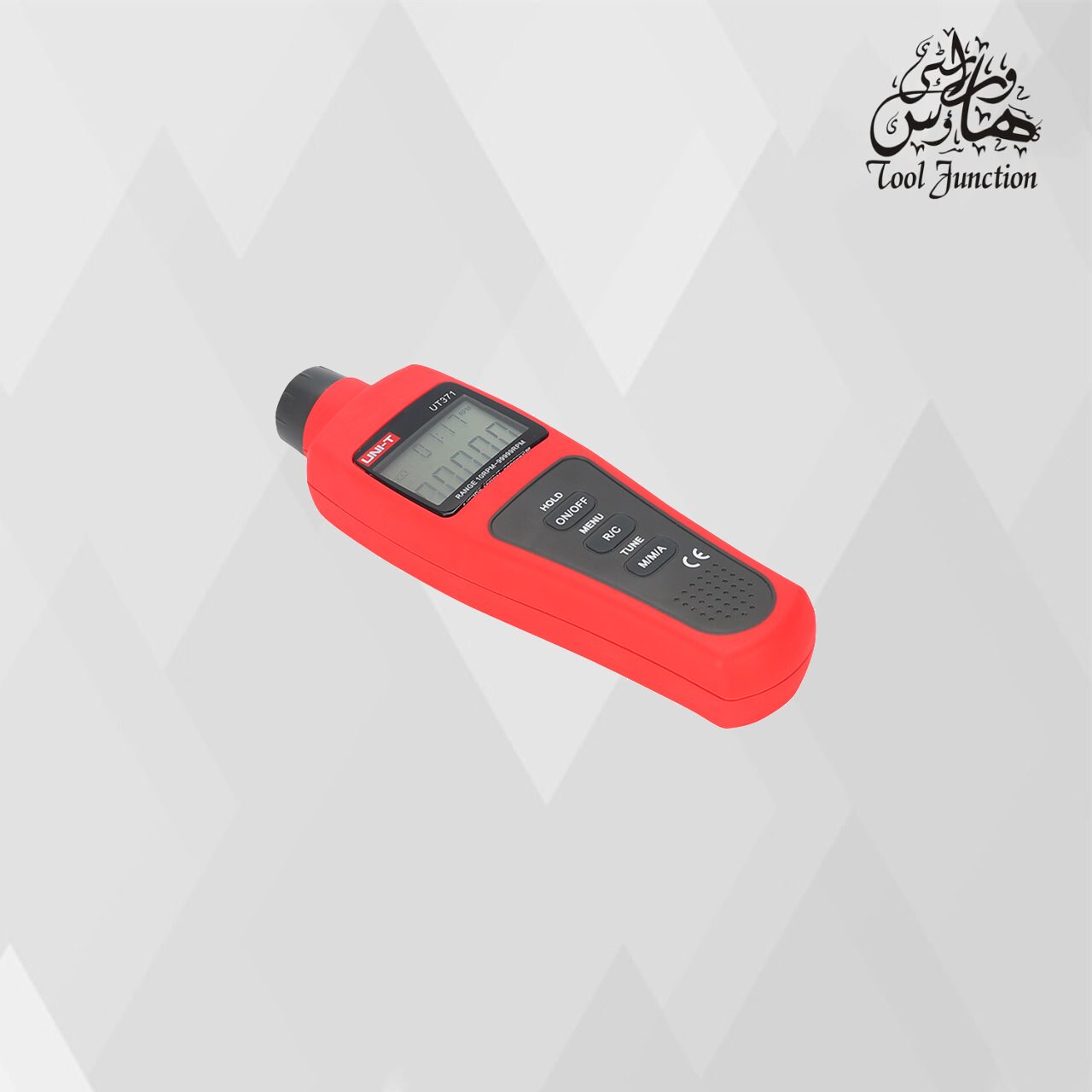

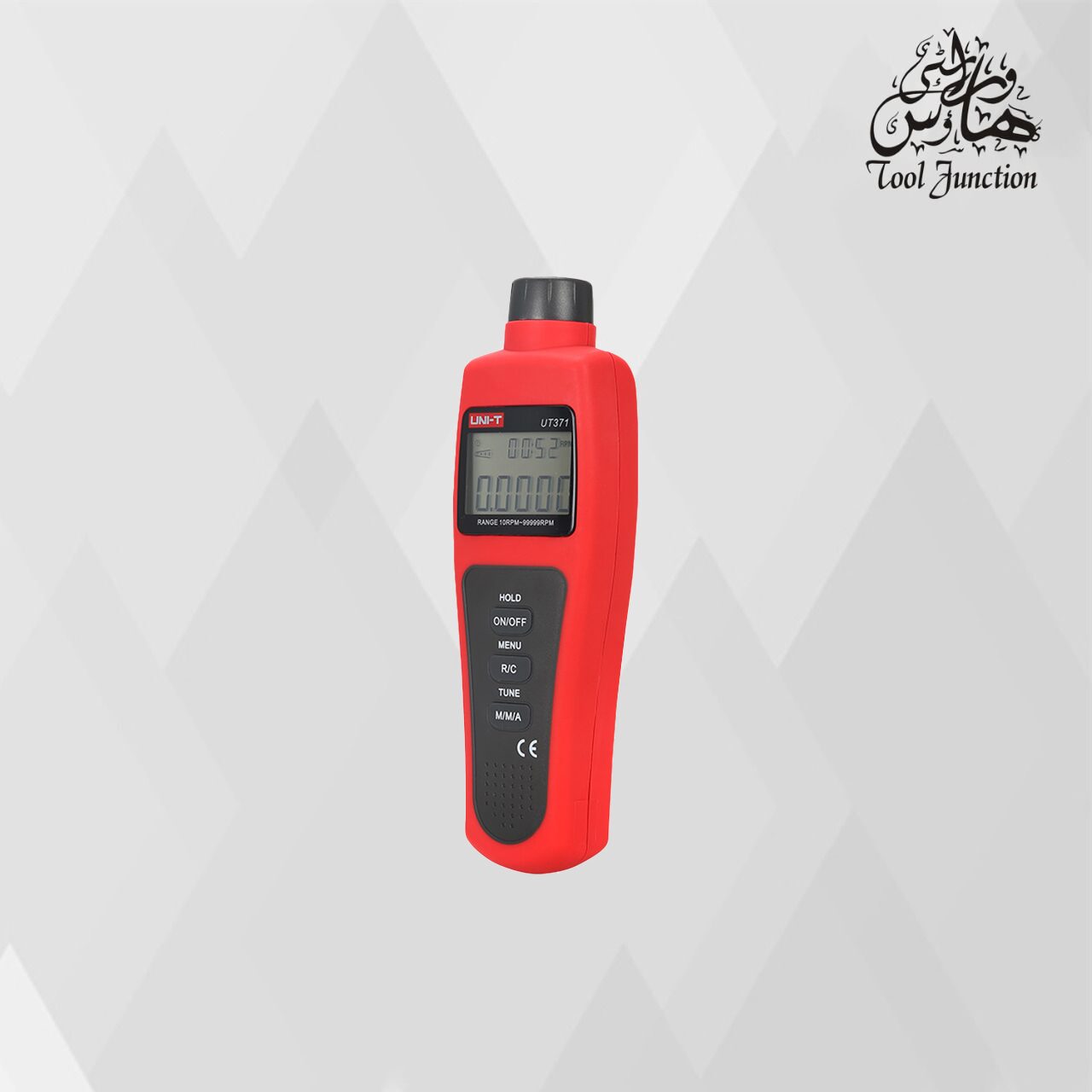

UT371 Tachometer
UT371 Tachometer
₨11,800
UT370 series non-contact tachometers measure rotating speed of shaft or disk with a point laser and reflective tape on the object being measured. These meters can output RPM or count readouts without interfering with the equipment being measured.
Buy Now
Add to cart
| Weight | 0.5 kg |
|---|
Features
1. 5 digits LCD screen, RPM/count and time dual display
2. MAX/MIN/AVG/normal modes
3. Adjustable sampling rate (0.5-255s)
4. Auto power off (cancelable)
5. Optional (on/off) laser pointer
6. Clock and time setting
7. Data hold, low power consumption, continuous work for 40hrs
Tech. Spec
Specifications |
Range |
UT371 |
| RPM range | 10RPM~99RPM | ±(0.03%) |
| 100RPM~999RPM | ±(0.04%＋2) | |
| 1000RPM~9999RPM | ±(0.04%＋2) | |
| 10000RPM~99999RPM | ±(0.04%＋2) | |
| Counts | Range: 0~99999 | √ |
| Max. input frequency: 10kHz; bandwidth: 5% | ||
| Target distance | 50mm~200mm | √ |
Features |
||
| Display count | 100000 | |
| Data hold | √ | |
| Auto power off | Around 15 minutes | √ |
| Low battery indication | ≤4.8V | √ |
| MAX/MIN/AVG mode | √ | |
General Characterisitics |
||
| Power | 1.5V battery (LR6) X 4 | |
| Display | 53mm x 41mm | |
| Product color | Red and grey | |
| Product net weight | 100g | |
| Product size | 184mm x 56mm x 34mm | |
| Standard accessories | Reflective tape | |
| Standard individual packing | Blister, English manual | |
| Standard quantity per carton | 20pcs | |
| Standard carton measurement | 420mm x 305mm x 370mm (0.047CBM per standard carton) | |
| Standard carton gross weight | 5kg | |
Models & Comparison
Specifications |
Range |
UT371 |

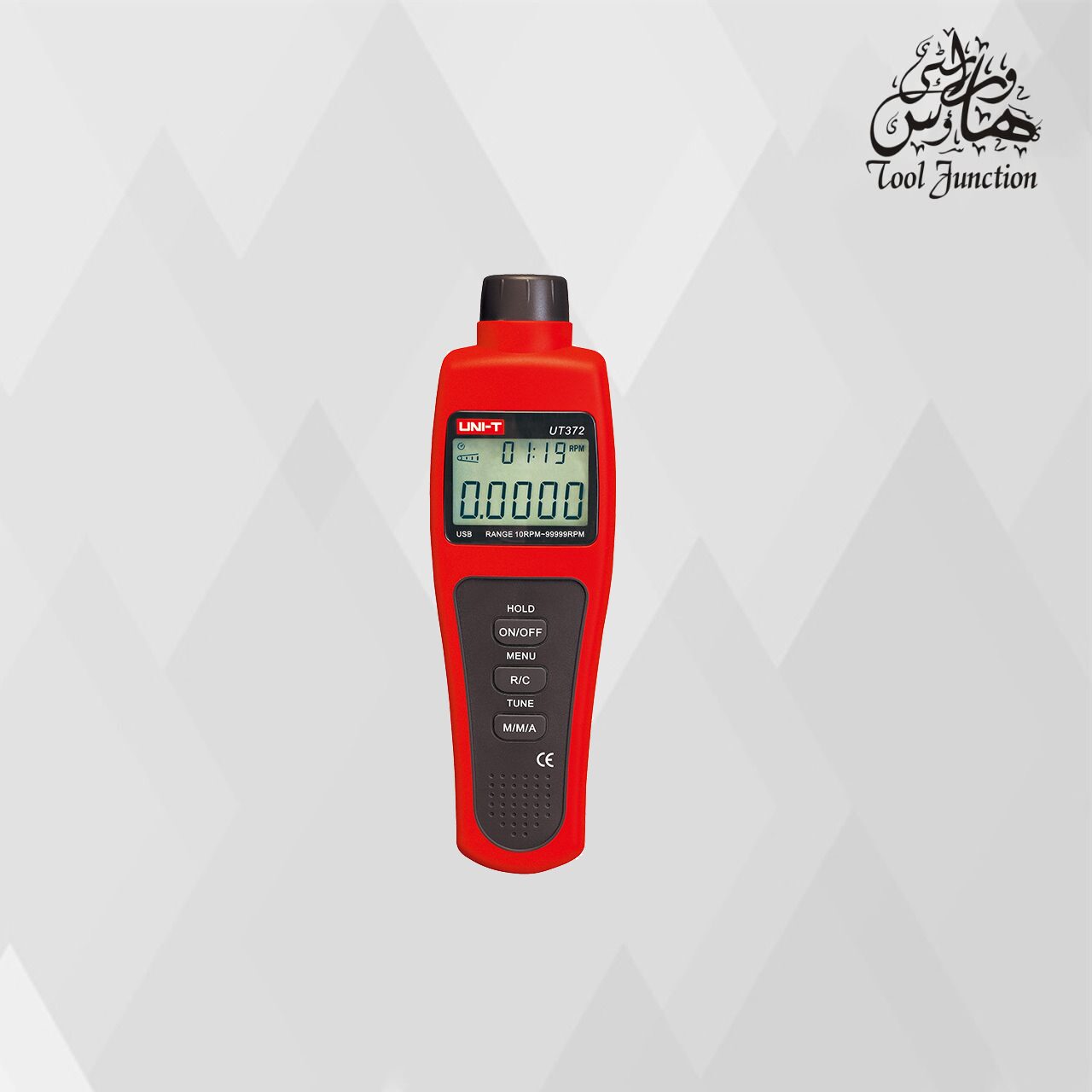

UT372 |
| RPM range | 10RPM~99RPM | ±(0.03%) | ±(0.03%) |
| 100RPM~999RPM | ±(0.04%＋2) | ±(0.04%＋2) | |
| 1000RPM~9999RPM | ±(0.04%＋2) | ±(0.04%＋2) | |
| 10000RPM~99999RPM | ±(0.04%＋2) | ±(0.04%＋2) | |
| Counts | Range: 0~99999 | √ | √ |
| Max. input frequency: 10kHz; bandwidth: 5% | |||
| Target distance | 50mm~200mm | √ | √ |
Features |
|||
| Display count | 100000 | 100000 | |
| Data hold | √ | √ | |
| Auto power off | Around 15 minutes | √ | √ |
| Low battery indication | ≤4.8V | √ | √ |
| MAX/MIN/AVG mode | √ | √ | |
| USB interface | √ | ||
General Characterisitics |
|||
| Power | 1.5V battery (LR6) X 4 | ||
| Display | 53mm x 41mm | ||
| Product color | Red and grey | ||
| Product net weight | 100g | ||
| Product size | 184mm x 56mm x 34mm | ||
| Standard accessories | Reflective tape, USB interface cable (UT372), PC software CD (UT372) | ||
| Standard individual packing | Blister, English manual | ||
| Standard quantity per carton | 20pcs | ||
| Standard carton measurement | 420mm x 305mm x 370mm (0.047CBM per standard carton) | ||
| Standard carton gross weight | 5kg | ||
