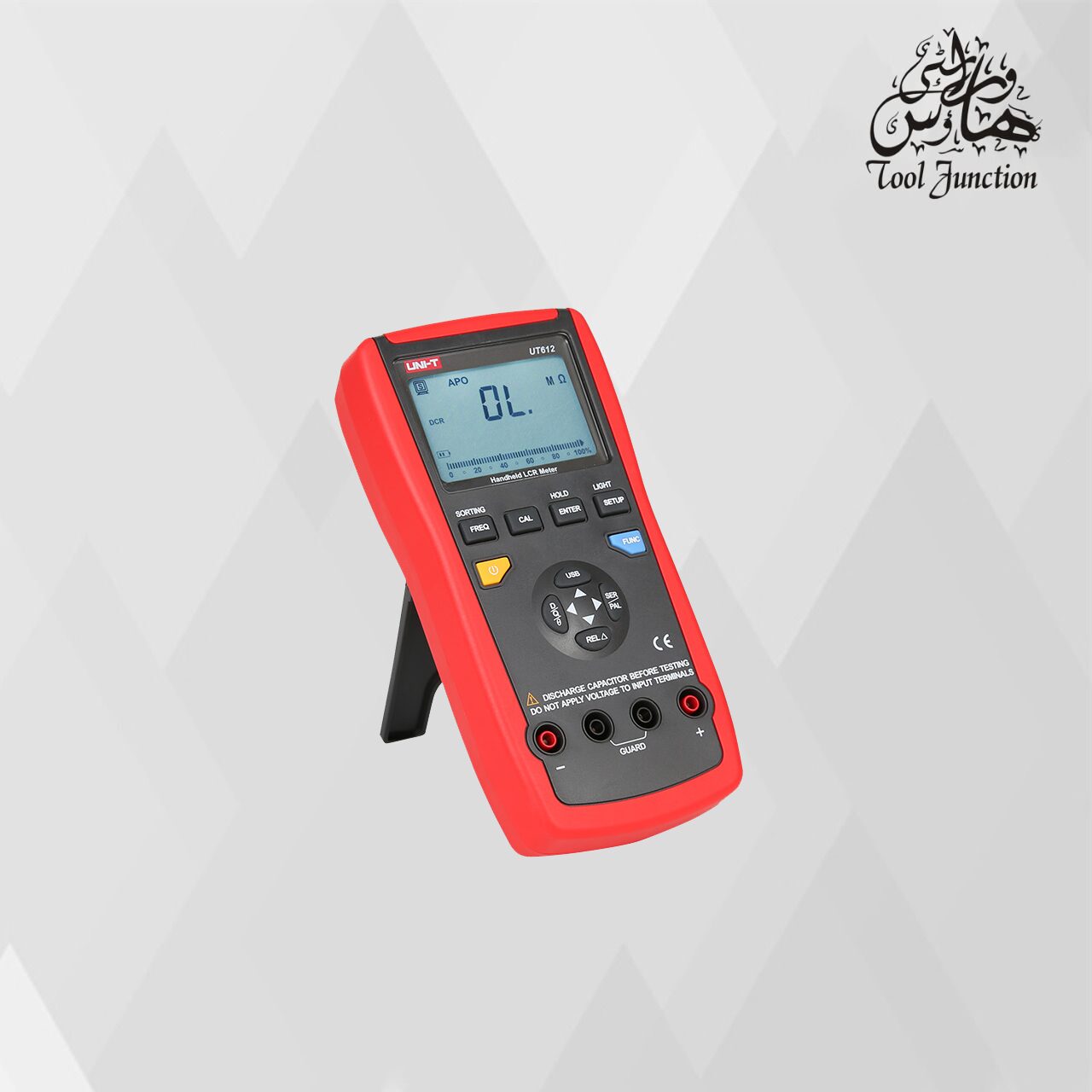

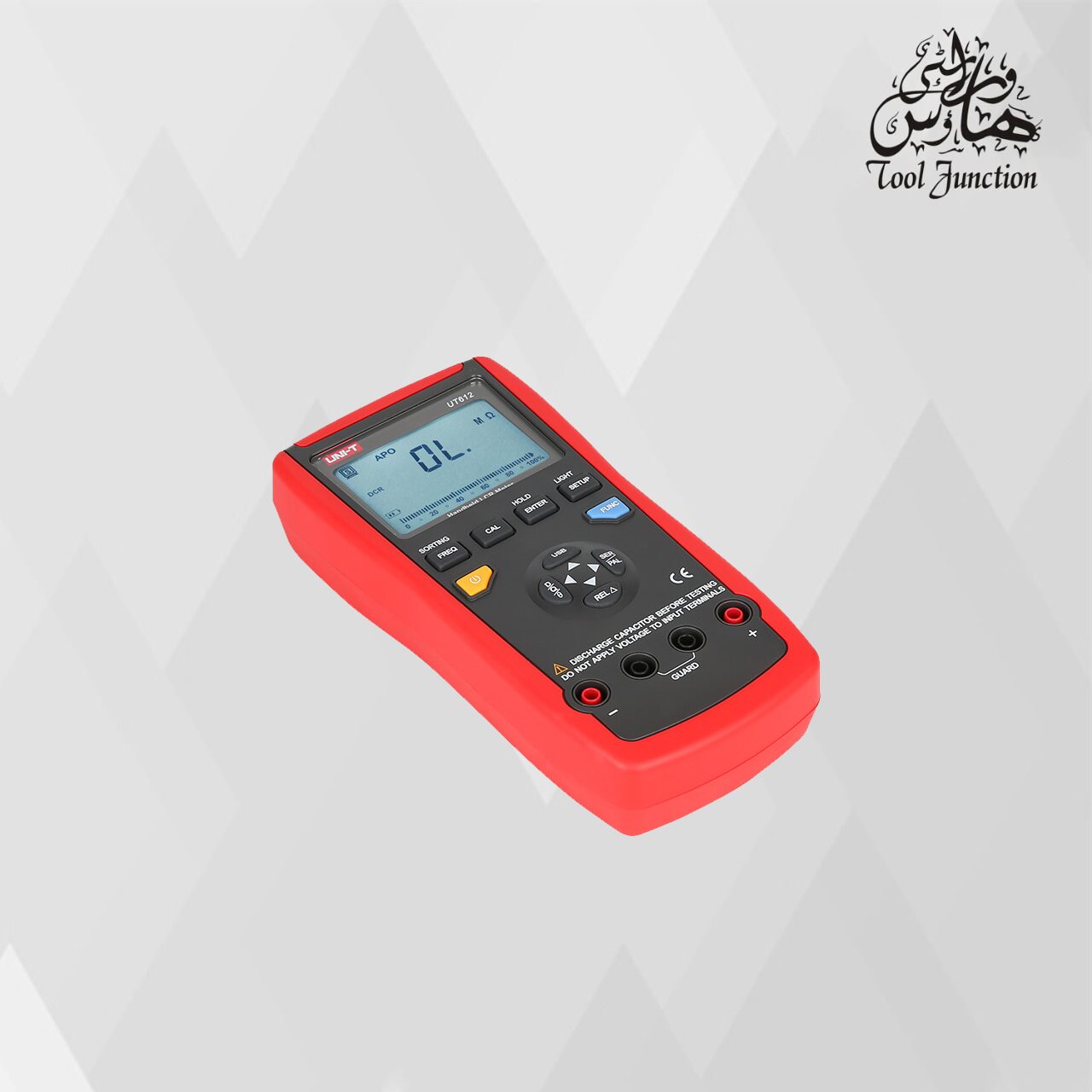

UT612 LCR Meter

0

UT610 series LCR meters are more advanced meters used to measure inductance, capacitance and resistance. Advanced features include series/parallel measurement modes, quality factor/loss/phase angle measurements, equivalent/DC resistance measurements and 5 kinds of measurement frequency in AC mode for selection.

0

Buy Now
Add to cart

Weight 0.89 kg

Basic Features

14 / 100

UT610 series LCR meters are more advanced meters used to measure inductance, capacitance and resistance. Advanced features include series/parallel measurement modes, quality factor/loss/phase angle measurements, equivalent/DC resistance measurements and 5 kinds of measurement frequency in AC mode for selection. UT610 series can be easily operated in production lines, component inspection and electronic maintenance.

Tech. Spec

14 / 100

Specifications

Range

UT612

Inductance (H) 20uH~2000H ±(0.5%+5)
Capacitance (F) 200pF~20mF ±(0.5%+5)
Resistance (Ω) 20Ω~200MΩ ±(0.3%+5)
Test frequency (Hz) 100Hz/120Hz/1kHz/10kHz/100kHz
Operating voltage 0.6Vrms
Test parameters L/C/R/DCR/Q/D/θ/ESR

Features

Display count 20000
D/Q display count 2000
D/Q resolution 0.001
Auto range
Test frequency real-time display
Measurement mode Series/Parallel
Auto power off
Low battery indication ≤6.8V
Data hold
Relative mode
USB interface
USB interface/PC data records 60000
LCD backlight
Analog bar graph 26
Deviation ratio measurement
Comparison function
Calibration function
Output impedance 120Ω
Auto LCR check and measurement

General Characterisitics

Power 9V battery (6F22) or USB
Display 40mm x 63mm
Product color Red and grey
Product net weight 374g
Product size 96mm x 193mm x 47mm
Standard accessories Battery, SMD test clamp, USB interface cable, multi-purpose socket, PC software CD
Standard individual packing Gift box, English manual
Standard quantity per carton 10pcs
Standard carton measurement 370mm x 305mm x 475mm (0.097 CBM per standard carton)
Standard carton gross weight 13.2kg

Models & Comparison

14 / 100



Specifications

Range

UT611

UT612

Inductance (H) 600uH~200H ±(0.4%+2)
20uH~2000H ±(0.5%+5)
Capacitance (F) 600pF~10mF ±(0.4%+2)
200pF~20mF ±(0.5%+5)
Resistance (Ω) 60Ω~20MΩ ±(0.4%+2)
20Ω~200MΩ ±(0.3%+5)
Test frequency (Hz) 100Hz/120Hz/1kHz/10kHz
100Hz/120Hz/1kHz/10kHz/100kHz
Operating voltage 0.5Vrms
0.6Vrms
Test parameters L/C/R/DCR/Q/D/θ/ESR

Featuresh3<>

Display count 6000 20000
D/Q display count 1000 2000
D/Q resolution 0.001
Auto range
Test frequency real-time display
Measurement mode Series/Parallel
Auto power off
Low battery indication ≤6.8V
Data hold
Relative mode
USB interface
USB interface/PC data records 60000
Data storage 1000
LCD backlight
Analog bar graph 30 26
Deviation ratio measurement
Comparison function
Calibration function
Output impedance 120Ω
Auto LCR check and measurement

General Characterisitics

Power 9V battery (6F22) or USB
Display 40mm x 63mm
Product color Red and grey
Product net weight 374g
Product size 96mm x 193mm x 47mm
Standard accessories Battery, SMD test clamp, USB interface cable (UT612), multi-purpose socket (UT612), PC software CD (UT612)
Standard individual packing Gift box, English manual
Standard quantity per carton 10pcs
Standard carton measurement 370mm x 305mm x 475mm (0.097 CBM per standard carton)
Standard carton gross weight 13.2kg
Optional accessory USB power adaptor
