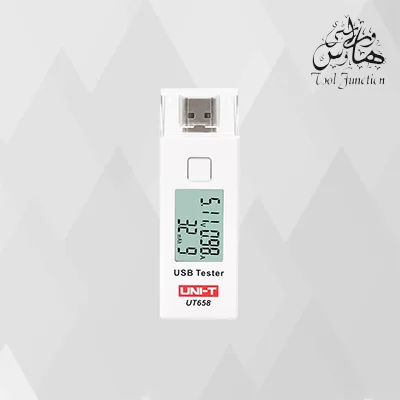

UNI-T Ut658 Usb Tester
UNI-T Ut658 Usb Tester
₨1,700
UT658 series USB testers are used to inspect USB chargers and portable power source of electronics products. UT658 series can output voltage, current, and power.
Buy Now
Add to cart
Features
● Type-A/C interface
● CE certification
● 10 sets of data storage
● Loop equivalent resistance measurement (1-480Ω)
● Same screen shows voltage, current, power, capacity, etc.
● Support fast charge protocol
| Weight | 1 kg |
|---|
Tech. Specification
| Specifications | UT658 |
| Input voltage range (V) | 3V~9V |
| Voltage resolution | 0.01V |
| Voltage monitoring accuracy | ±1% |
| Current monitoring range (A) | 0A~3A |
| Current monitoring accuracy | ±(1%±2) |
| Current resolution | 0.01A |
| Capacity | 0~9999mAH |
| Capacity data storage | 10 sets |
| Display | LCD |
| Warning | √ |
| Button | √ |
| Cable length | |
| Pollution level | 2 |
| Working temperature | 0℃~40℃ |
| Storage temperature | -10℃~50℃ |
| Relative humidity | <75% |
| General Characterisitics | |
| Product color | White |
| Product net weight | 28g |
| Product size | 84mm x 29mm x 12mm |
| Standard individual packing | Blister, insert card |
| Standard quantity per carton | 100pcs |
| Standard carton measurement | 185mm x 180mm x 185mm |
| Standard carton gross weight | 3.3kg |
Model & Comparison

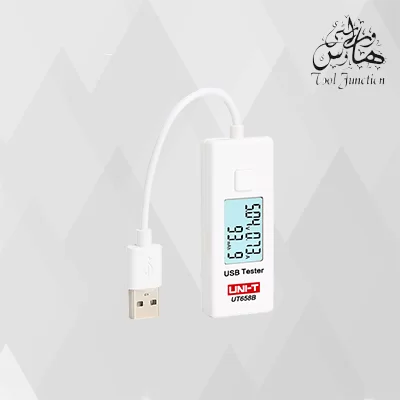

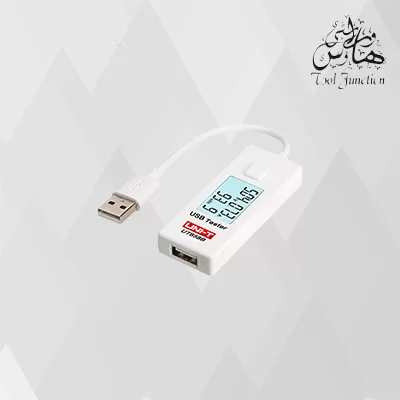

| Specifications | UT658 | UT658B |
| Input voltage range (V) | 3V~9V | 3V~9V |
| Voltage resolution | 0.01V | 0.01V |
| Voltage monitoring accuracy | ±1% | ±(1%+5) |
| Current monitoring range (A) | 0A~3A | 0A~3.5A |
| Current monitoring accuracy | ±(1%±2) | ±(1%±5) |
| Current resolution | 0.01A | 0.01A |
| Capacity | 0~9999mAH | 0~39999mAH |
| Capacity data storage | 10 sets | 10 sets |
| Display | LCD | LCD |
| Warning | √ | √ |
| Button | √ | √ |
| Cable length | 10cm | |
| Pollution level | 2 | 2 |
| Working temperature | 0℃~40℃ | -10℃~40℃ |
| Storage temperature | -10℃~50℃ | -10℃~50℃ |
| Relative humidity | <75% | <75% |
| General Characterisitics | ||
| Product color | White | |
| Product net weight | UT658: 28g; UT658B: 30g | |
| Product size | UT658: 84mm x 29mm x 12mm; UT658B: 72mm x 29mm x 12mm | |
| Standard individual packing | UT658: Blister, insert card; UT658B: Gift box | |
| Standard quantity per carton | UT658: 100pcs; UT658B: 60pcs | |
| Standard carton measurement | UT658: 185mm x 180mm x 185mm; UT658B: 205mm x 170mm x 170mm | |
| Standard carton gross weight | UT658: 3.3kg; UT658B: 2.3kg | |
