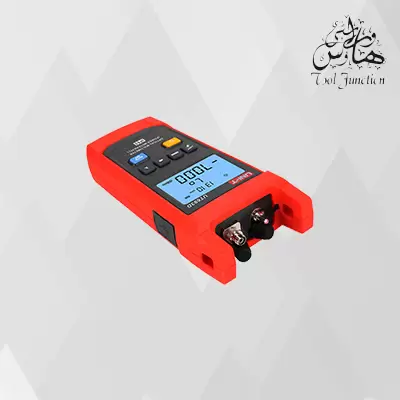

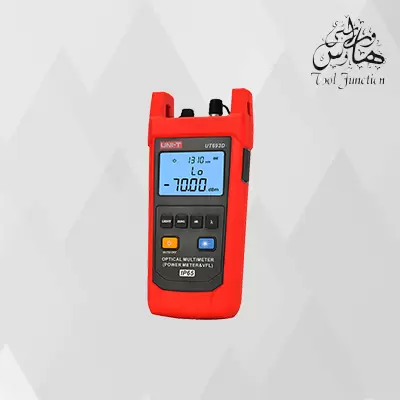

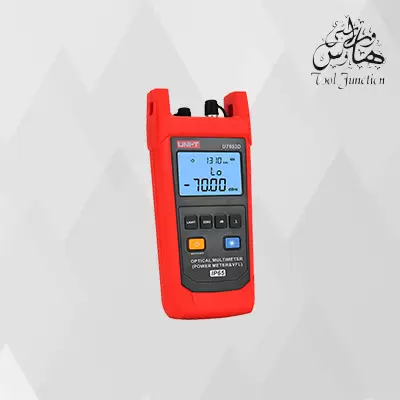

UT693D Optical Multimeter (Power Meter & VFL) Handheld optical power meter

7,510

●   Cable construction and maintenance

●   Optical fiber communication
●   Evaluation of optical equipment
●   Production, installation, operation and maintenance of fiber optic transmission systems
●   Optical engineering, production  plant or facility maintenance

7,510

Buy Now
Add to cart

Features.

19 / 100

●   Cable construction and maintenance

●   Optical fiber communication
●   Evaluation of optical equipment
●   Production, installation, operation and maintenance of fiber optic transmission systems
●   Optical engineering, laboratory, production  plant or facility maintenance

Tech. Specifications

19 / 100
Specifications Description UT693D
Optical power meter Wavelength range 800nm~1700nm
Calibrated wavelength 850nm, 980nm, 1300nm, 1310nm, 1490nm, 1550nm, 1625nm, 1650nm
Measurement range UT692D/UT693D: -70~10dBm, UT692G: -50~26dBm
Uncertainty ±5%
Display resolution Linear: 0.1%, logarithmic: 0.01dBm
Connector FC/SC/ST
Detector  type InGaAs
Visual faultlocator Wavelength 650nm±10nm
Power 10mW (measurable optical fiber length: approximately 8~10km)
Mode Continuous/Pulse
Connector FC/SC/ST
Features
Low battery indication
Auto power off
IP rating IP65
Drop test 2m
General Characterisitics
Power 1.5V battery (LR6) x 3
Display 63mm x 40mm
Product color Red and grey
Product net weight 300g
Product size 189mm x 87mm x 45mm
Standard accessories Batteries, carrying bag
Standard individual packing Gift box, English manual
Standard quantity per carton 10pcs
Standard carton measurement 295mm x 250mm x 210mm
Standard carton gross weight 5.66kg

Model & Comparison

19 / 100
Specifications Description UT692D UT692G UT693D
Optical power meter Wavelength range 800nm~1700nm
Calibrated wavelength 850nm, 980nm, 1300nm, 1310nm, 1490nm, 1550nm, 1625nm, 1650nm
Measurement range UT692D/UT693D: -70~10dBm, UT692G: -50~26dBm
Uncertainty ±5%
Display resolution Linear: 0.1%, logarithmic: 0.01dBm
Connector FC/SC/ST
Detector  type InGaAs
Visual faultlocator Wavelength 650nm±10nm
Power 10mW (measurable optical fiber length: approximately 8~10km)
Mode Continuous/Pulse
Connector FC/SC/ST
Flashlight
Features
Low battery indication
Auto power off
IP rating IP65 IP65 IP65
Drop test 2m 2m 2m
General Characterisitics
Power 1.5V battery (LR6) x 3
Display 63mm x 40mm
Product color Red and grey
Product net weight 300g
Product size 189mm x 87mm x 45mm
Standard accessories Batteries, carrying bag
Standard individual packing Gift box, English manual
Standard quantity per carton 10pcs
Standard carton measurement 295mm x 250mm x 210mm
Standard carton gross weight 5.66kg
