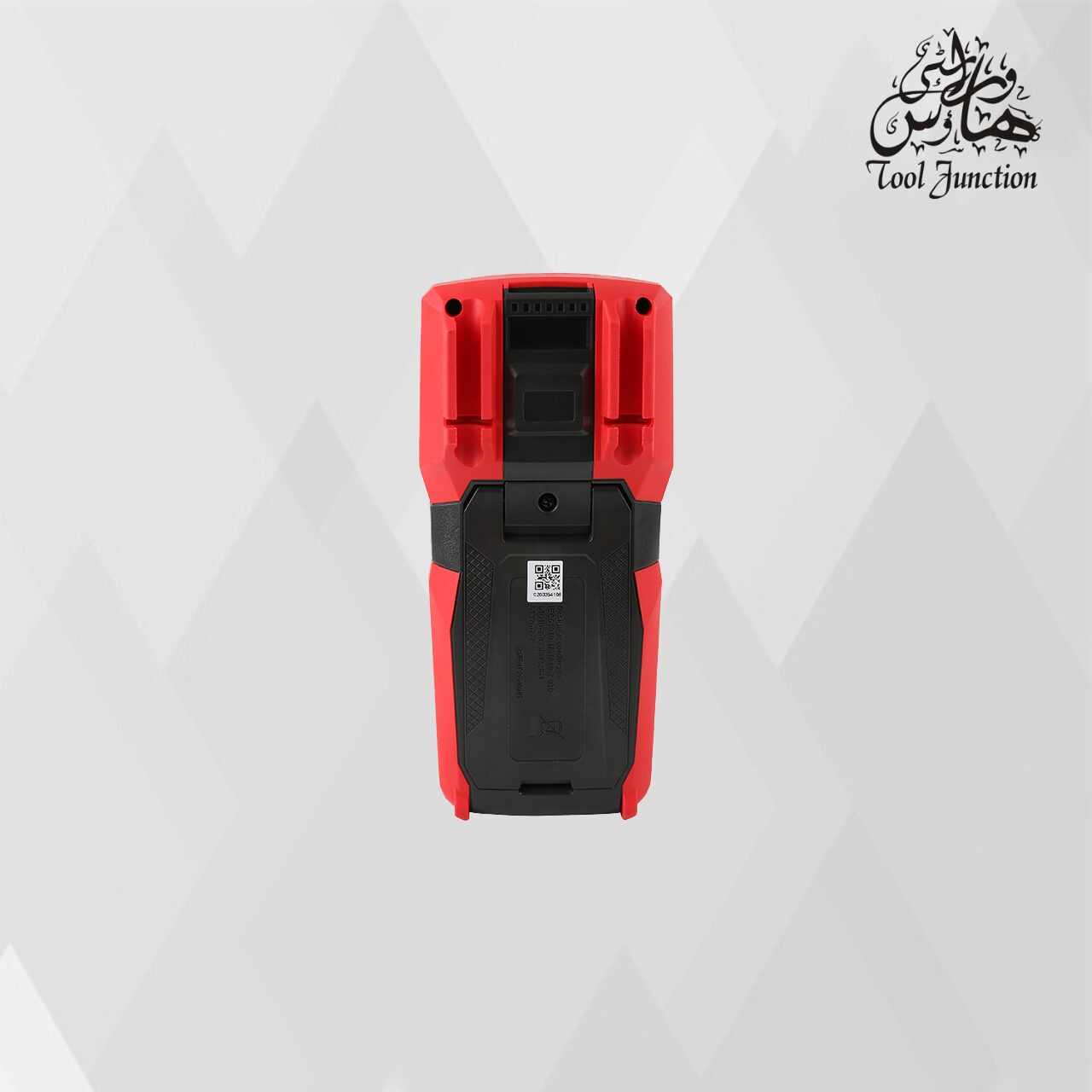

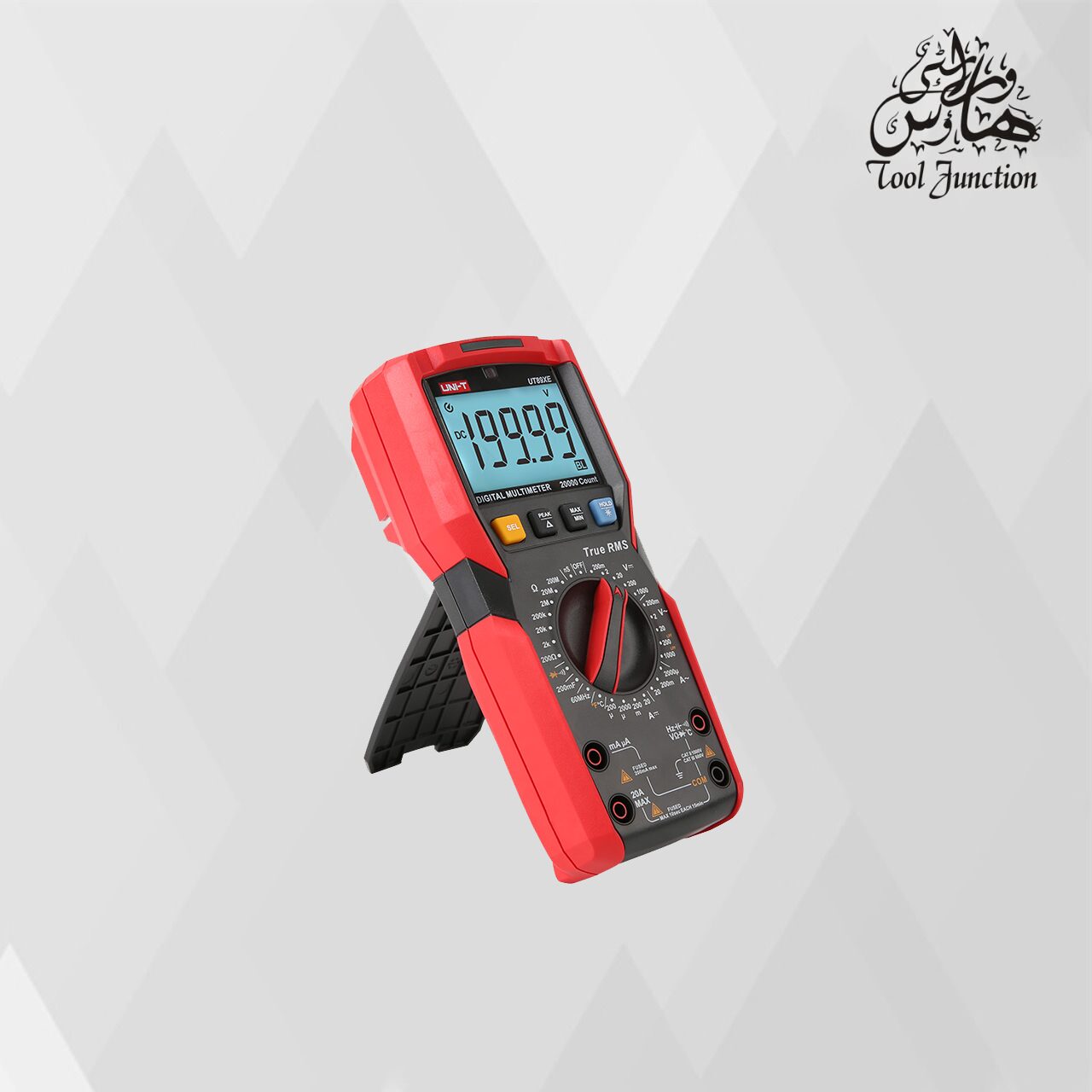

UT89XE Digital Multimeter

7,510

● Sampling rate: 3 times/s

● True RMS
● Audible/visual alarm
● Capacitor charging indicator
● Ergonomic design
● Double injection molding
● Auto backlight
● Display count: 6000/20000
● AC frequency range: 45~1000Hz
● Diode/continuity test
● Auto power off/auto backlight
● Conductance 200nS
● Data hold
● Function selection: SELECT

7,510

Buy Now
Add to cart

Weight 0.90 kg

Features

14 / 100

● Sampling rate: 3 times/s

● True RMS
● Audible/visual alarm
● Capacitor charging indicator
● Ergonomic design
● Double injection molding
● Auto backlight
● Display count: 6000/20000
● AC frequency range: 45~1000Hz
● Diode/continuity test
● Auto power off/auto backlight
● Conductance 200nS
● Data hold
● Function selection: SELECT

Tech.Specification

14 / 100
Specifications UT89XE
Safety ratings CAT II 1000V, CAT III 600V
DC voltage (V) 200mV/2V/20V/200V/1000V ±(0.05%+5)
AC voltage (V) 200mV/2V/20V/200V/1000V ±(0.8%+25)
DC current (A) 2000μA/200mA/20A ±(0.5%+4)
AC current (A) 2000uA/200mA/20A ±(1.5%+15)
Resistance (Ω) 200Ω/2kΩ/20kΩ/200kΩ/2MΩ/20MΩ/200MΩ ±(0.4%+5)
Capacitance (F) 200mF ±(4%+50)
Conductance (ns) 200nS ±(1.2%+50)
Frequency (Hz) 60MHz ±(0.1%+3)
Temperature (℃)  -40℃~1000℃ ±(1%+10)
Temperature (℉)  -40℉~1832℉ ±(1.5%+10)
Audible/visual alarm V/A/Cap/Diode
MAX/MIN
Peak Hold
LPF measurement
General Characteristics
Power 1.5V battery (R03) x 4
Display 61mm x 36mm
Product net weight 345g
Product size 189mm x 89mm x 53mm
Standard accessories Batteries, test lead,  k-type temperature probe, English manual
Standard individual packing Gift box
Standard quantity per carton 20pcs
Standard carton measurement 450mm x 355mm x 340mm
Standard carton gross weight 12.2kg

Model & Comparison

14 / 100
Specifications UT89X UT89XD UT89XE
Safety ratings CAT II 1000V, CAT III 600V
DC voltage (V) 600mV/6V/60V/600V/1000V ±(0.5%+2) ±(0.5%+2)
200mV/2V/20V/200V/1000V ±(0.05%+5)
AC voltage (V) 6V/60V/600V/1000V ±(0.8%+5) ±(0.8%+5)
200mV/2V/20V/200V/1000V ±(0.8%+25)
DC current (A) 60μA/60mA/600mA/20A ±(0.8%+8)
60μA/6mA/60mA/600mA/20A ±(0.8%+8)
2000μA/200mA/20A ±(0.5%+4)
AC current (A) 60mA/600mA/20A ±(1%+12) ±(1%+12)
2000uA/200mA/20A ±(1.5%+15)
Resistance (Ω) 600Ω/6kΩ/60kΩ/600kΩ/6MΩ/60MΩ ±(0.8%+3) ±(0.8%+3)
200Ω/2kΩ/20kΩ/200kΩ/2MΩ/20MΩ/200MΩ ±(0.4%+5)
Capacitance (F) 100mF ±(2.5%+20) ±(2.5%+20)
200mF ±(4%+50)
Conductance (ns) 200nS ±(1.2%+50)
Frequency (Hz) 9.999Hz/9.999MHz ±(0.1%+4) ±(0.1%+4)
60MHz ±(0.1%+3)
Duty cycle 0.1%~99.9% ±(2%+5) ±(2%+5)
Temperature (℃)  -40℃~1000℃ ±(2%+4) ±(1%+10)
Temperature (℉)  -40℉~1832℉ ±(2%+8) ±(1.5%+10)
Live wire test
LED test 12V
Audible/visual alarm V/A/Cap/Diode Live/hFE/NCV LED/hFE/NCV
Transistor Hfe
Dual range NCV test
Flashlight
MAX/MIN
Peak Hold
LPF measurement
General Characteristics
Power 1.5V battery (R03) x 4
Display 61mm x 36mm
Product net weight 345g
Product size 189mm x 89mm x 53mm
Standard accessories Batteries, test lead,  k-type temperature probe (UT89X/UT89XE), English manual
Standard individual packing Gift box
Standard quantity per carton 20pcs
Standard carton measurement 450mm x 355mm x 340mm
Standard carton gross weight 12.2kg
