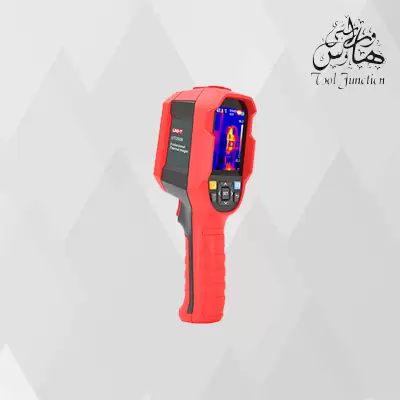

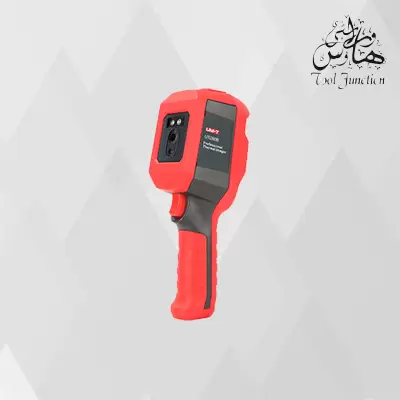

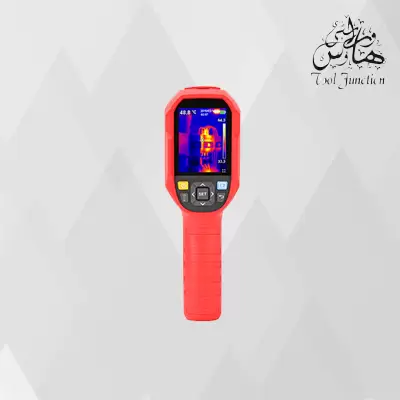

UNI-T Uti260B Thermal Imager
UNI-T Uti260B Thermal Imager
₨103,500
UNI-T Echo Thermal Imagers are 2nd generation products are more cost effective and also includes a wider temperature measurement range compared with the Classic series. Echo’s extra functions are digital camera and image fusion on selected models. This series is also very user friendly and rugged enough to pass IP65and 2m drop tests.
Buy Now
Add to cart
| Weight | 1.45 kg |
|---|
Basic Features
● 2.8″ TFT screen
● Infrared resolution: 256 x 192
● Temperature measurement range: -20℃~550℃
● Photograph function with SD card storage
● PC analysis software
● Buzzer/flashlight alarm
● Real-time image transmission
● Auto capture of Hi/Low temperature
● Flashlight
● 1/4″ tripod mounting hole
● IP65/2m drop proof
Tech.Spec
| Specifications | |
| Model | UTi260B |
| Certifications | CE/RoHS |
| Temperature range | -20~550℃ |
| IR resolution | 256×192 pixel |
| Field of view (FOV) | 56°x 42° |
| Thermal sensitivity (NETD) | 50mk |
| Spatial resolution (IFOV) | 3.8mrad |
| Frame rate | 25Hz |
| Measurement accuracy | ±2℃ or ±2% whichever is greater |
| Palettes | 7 |
| Emissivity | Adjustable (0.01-1) |
| Focus | Focus free |
| Display modes | Thermal, blending, visible, PIP |
| Display | 2.8”LCD |
| ROI (eliminates interference) | √ |
| General Characteristics | |
| Power | Li-ion battery (3.6V 5000mAh) |
| Product net weight | Around 910g |
| Product net size | 236mm x 75.5 mm x 86mm |
| Standard accessories | Micro SD card, Type-C USB cable, English manual |
| Standard individual packing | Gift box |
| Standard quantity per carton | 10pcs |
| Standard carton measurement | 610mm x 345mm x 305mm |
| Standard carton gross weight | 10.1kg |
Model & Comparison
| Specifications | |||||
| Model | UTi85A | UTi120B | UTi165A | UTi220B | UTi260B |
| Certifications | CE/RoHS | ||||
| Temperature range | -10~400℃ | -20~400℃ | -10~400℃ | -10~400℃ | -20~550℃ |
| IR resolution | 80×60 pixels | 120×90 pixels | 160×120 pixels | 200×150 pixels | 256×192 pixel |
| Field of view (FOV) | 51°x38° | 51°x38° | 56°x 42° | 35°x26° | 56°x 42° |
| Thermal sensitivity (NETD) | 150mK | 60mk | 50mk | 100mk | 50mk |
| Spatial resolution (IFOV) | 11.1mrad | 7.3mrad | 6.1mrad | 3.1mrad | 3.8mrad |
| Frame rate | 9Hz | 25Hz | 9Hz | 9Hz | 25Hz |
| Measurement accuracy | ±2℃ or ±2% whichever is greater | ||||
| Palettes | 5 | 7 | 5 | 7 | 7 |
| Emissivity | Adjustable (0.01-1) | Adjustable (0.01-1) | Adjustable (0.01-1) | Adjustable (0.01-1) | Adjustable (0.01-1) |
| Focus | Focus free | Focus free | Focus free | Focus free | Focus free |
| Display modes | Thermal | Thermal, blending, visible | Thermal | Thermal, visible, blending | Thermal, blending, visible, PIP |
| Display | 2.8”LCD | 2.8”LCD | 2.8”LCD | 2.8”LCD | 2.8”LCD |
| ROI (eliminates interference) | √ | √ | √ | √ | |
| General Characteristics | |||||
| Power | Li-ion battery (3.6V 5000mAh) | ||||
| Product net weight | Around 910g | ||||
| Product net size | 236mm x 75.5 mm x 86mm | ||||
| Standard accessories | Micro SD card, Type-C USB cable, English manual | ||||
| Standard individual packing | Gift box | ||||
| Standard quantity per carton | 10pcs | ||||
| Standard carton measurement | 610mm x 345mm x 305mm | ||||
| Standard carton gross weight | 10.1kg | ||||
