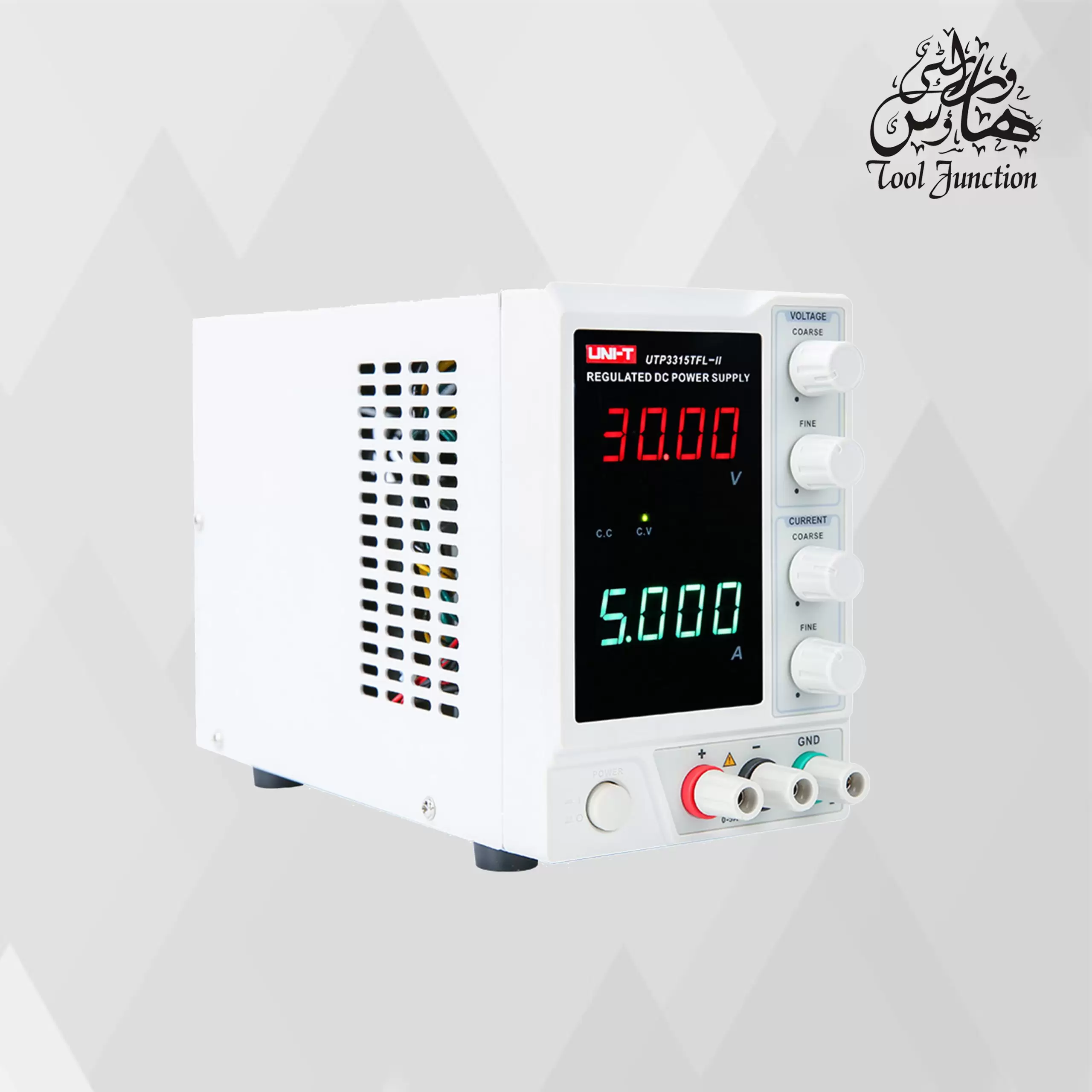

UTP3315TFL-II DC Power Supply
UTP3315TFL-II DC Power Supply
₨22,425
UTP3000TFL-II series single-channel linear DC power supplies are economical benchtop tools for DIY electronics hobbyists, electronics manufacturing and testing, and other applications
Buy Now
Add to cart
| Weight | 4.6 kg |
|---|
Features
UTP3000TFL-II series single-channel linear DC power supplies are economical benchtop tools for DIY electronics hobbyists, electronics manufacturing and testing, and other applications.
Tech. Specs
| Specifications | ||
| Model | UTP3315TFL-II | |
| Output voltage | 0~30V | |
| Output current | 0~5A | |
| Output power | 150W | |
| Load regulation | CV≤0.01%+5mV, CC≤0.1%+10mA | |
| Accuracy (25℃±5℃) | Voltage | ＜0.5%+20mV |
| Current | ＜0.5%+10mA | |
| Ripple and noise | ≤2mVrms | |
| Output regulation resolution | CV: 10mV (typical), CC: 1mA (typical) | |
| Reliability | MTBF(e): ≥2000hrs | |
| Display mode | LED voltage and current dual display | |
| Feature | Auto conversion of constant voltage and current with current limit protection | |
| General Characteristics | ||

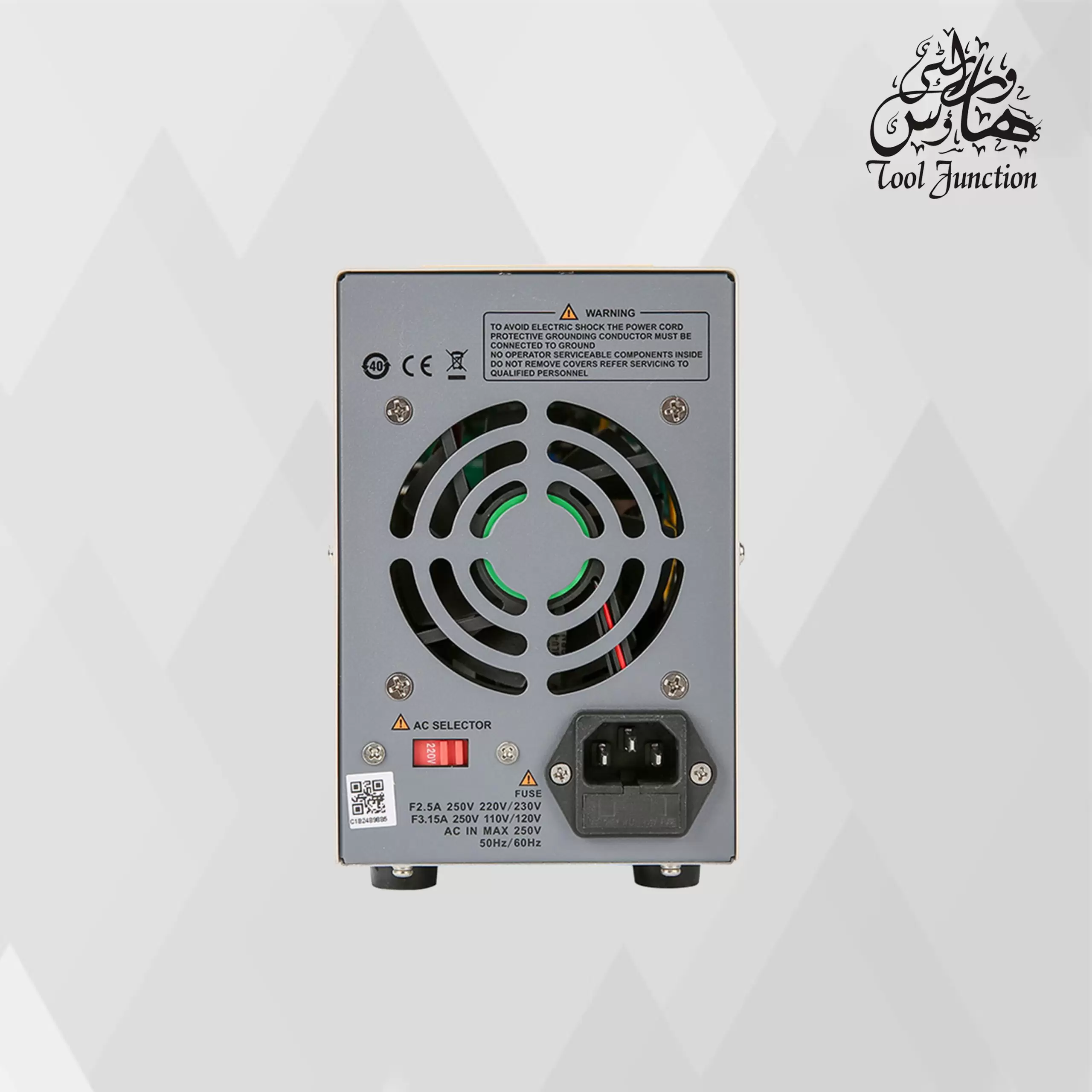

| Power | Input voltage: 110V/220V±5% AC; frequency: 50Hz/60Hz | |
| Product color | White and grey | |
| Product net weight | 4kg | |
| Product size | 105mm x 165mm x 249mm | |

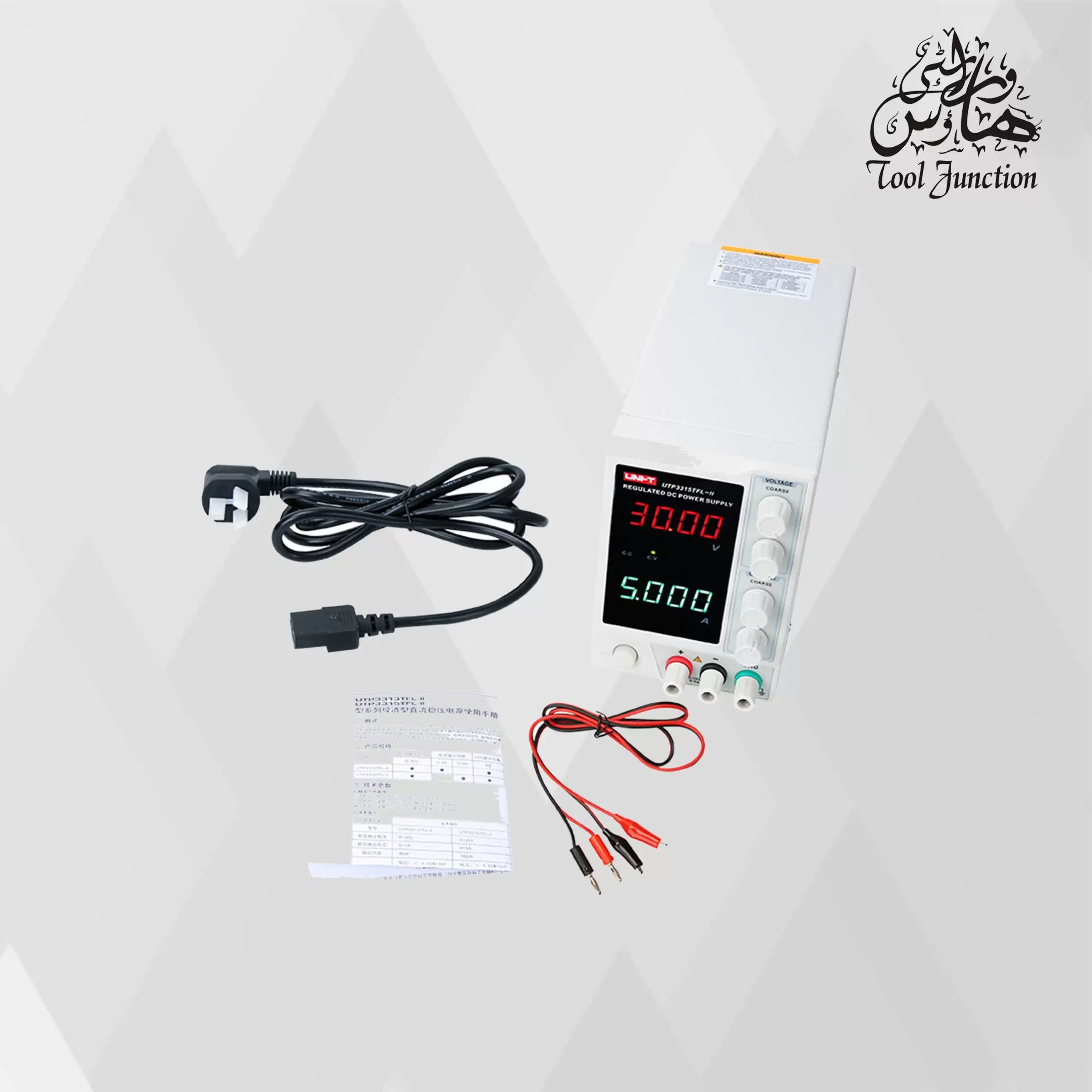

| Standard accessories | Power cord, output cables | |
| Standard individual packing | Carton box, English manual | |
| Standard quantity per carton | 4pcs | |
| Standard carton measurement | 330mm x 285mm x 460mm | |
| Standard carton gross weight | 17kg | |
Models & Comparison
| Specifications | |||
| Model | UTP3313TFL-II | UTP3315TFL-II | |
| Output voltage | 0~30V | 0~30V | |
| Output current | 0~3A | 0~5A | |
| Output power | 90W | 150W | |
| Load regulation | CV≤0.01%+3mV, CC≤0.1%+5mA | CV≤0.01%+5mV, CC≤0.1%+10mA | |
| Accuracy (25℃±5℃) | Voltage | ＜0.5%+20mV | ＜0.5%+20mV |
| Current | ＜0.5%+5mA | ＜0.5%+10mA | |
| Ripple and noise | ≤1mVrms | ≤2mVrms | |
| Output regulation resolution | CV: 10mV (typical), CC: 1mA (typical) | ||
| Reliability | MTBF(e): ≥2000hrs | ||
| Display mode | LED voltage and current dual display | ||
| Feature | Auto conversion of constant voltage and current with current limit protection | ||
| General Characteristics | |||
| Power | Input voltage: 110V/220V±5% AC; frequency: 50Hz/60Hz | ||
| Product color | White and grey | ||
| Product net weight | 3kg (UTP3313TFL-II); 4kg (UTP3315TFL-II) | ||
| Product size | 105mm x 165mm x 249mm | ||
| Standard accessories | Power cord, output cables | ||
| Standard individual packing | Carton box, English manual | ||
| Standard quantity per carton | 4pcs | ||
| Standard carton measurement | 330mm x 285mm x 460mm | ||
| Standard carton gross weight | 14kg (UTP3313TFL-II); 17kg (UTP3315TFL-II) | ||
