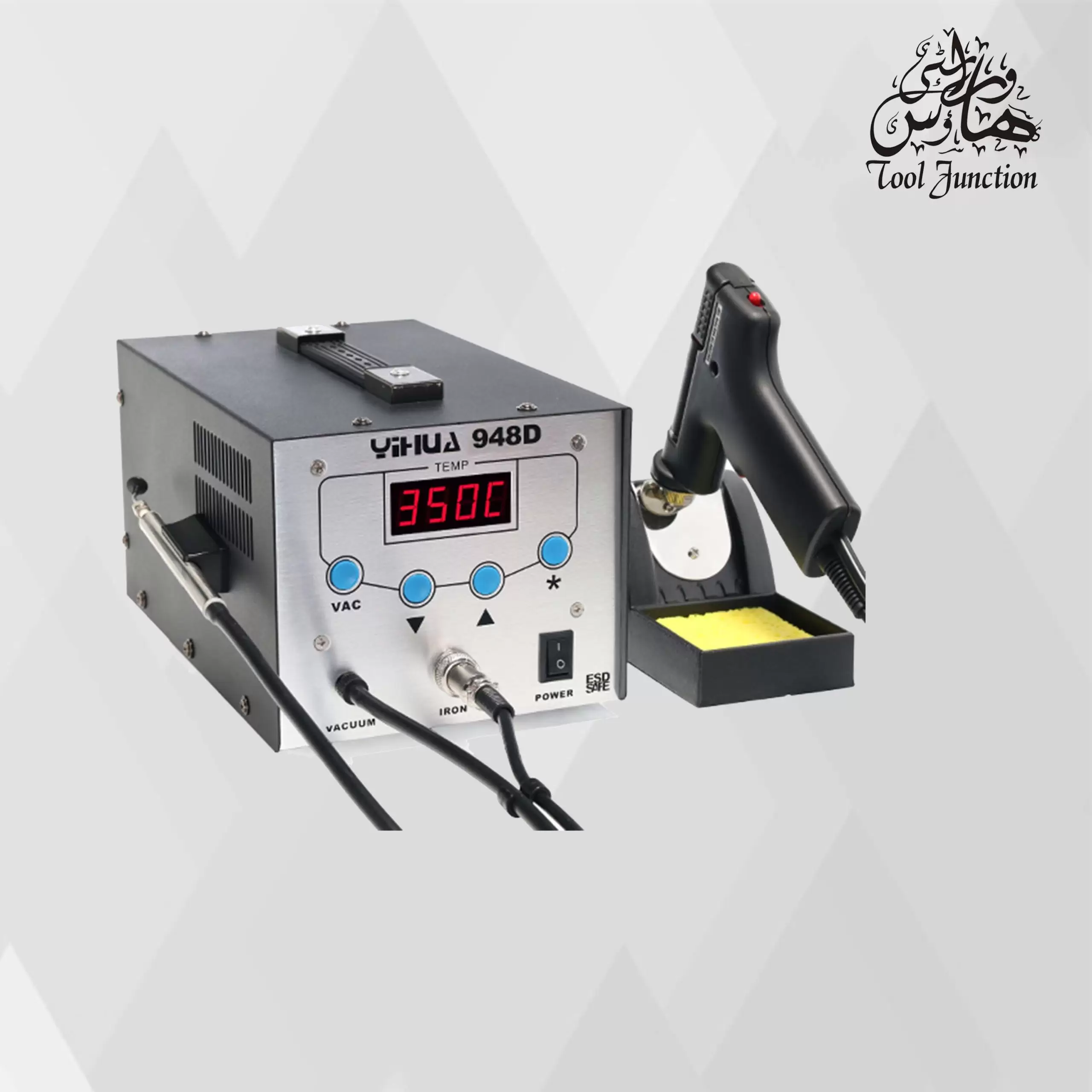

Yihua YH-948D 130W High Frequency Soldering And Desoldering Gun Station Suction Tin Gun

Inner box size : 33.5*33*21.5CM
Outer carton box size: 67*35*23.3CM
Goods net weight:  5.57KG/PC
Outer carton weight:  11.95kg/CTN

SKU: YH 948D-VP Categories: Brand:


7 / 100
  • This device has the following user-friendly design featuresA. Celsius/Fahrenheit temperature display

    Designed to meet the market needs of different regions, the temperature display function can be set to display either Celsius or Fahrenheit, depending on local practices.

    B. Sleep function

    Soldering iron automatic detection of their work status are not in use in a quiescent state, arriving to set the sleep time, the temperature of the iron automatically lower the temperature to 200 ° C enter into sleep state, can effectively prevent the oxidation of iron head and prolong the iron tip service life, energy saving and environmental protection. The sleep time can be set range: 1 to 99 minutes in 1 minute steps, users can be set based on usage, if you do not need a soldering iron sleep ,the sleep time is set to—.

    Wake/Sleep Mode

    a.Shake soldering handle up and down several times or flick the red switch on the suction gun once.

    b.Press any one button.

    c.Turn the power switch on and off.


    C. Automatic shutdown function

    After machine enter into sleep state, start the timer program, set the shutdown time did not wake up from sleep, automatic shutdown, energy saving and environmental protection. Auto power off time setting range: 1 to 99 minutes in 1 minute steps,If you do not need a auto shutdown function ,the power off time is set to—.


    D.Password Feature

    A password must be given to enter the function parameter settings. Function parameters can only be changed after the correct password has been entered, thus preventing operator changes and any impact on operational efficiency.

    E.Digital Temperature Correction Feature

    Suitable for temperature deviations between actual temperatures and displayed temperatures due to environmental conditions or the replacement of heating cores, iron tops,or other parts which can be corrected with this feature.


7 / 100

Model:YIHUA 948D

Input  Voltage : AC 220V±10% 50HZ( 110V±10% 50HZ)

Power: Sunction gun :130W High frquency

Temperature Range:200°C-480°C

Display method :LED digital

Heating elemnt vlotage :AC 36V ±10% f=380KHz

Desoldering pump power:12W

Vacuum Pressure:Max .50Kpa(375mmHg)

Weight :5.7kg/pcs


Tip of ground impedance <2ohm<>
Tip of ground voltage <2mv<>
Operating Temperature :0°C~40°C/32°F~104°F
Storage Temperature:-20°C-4-80°C/-4°F~-176°F
Storage Humidity:35%~45%
