AIFEN F5 PRO HOT AIR GUN - Variety House

AIFEN F5 PRO HOT AIR GUN

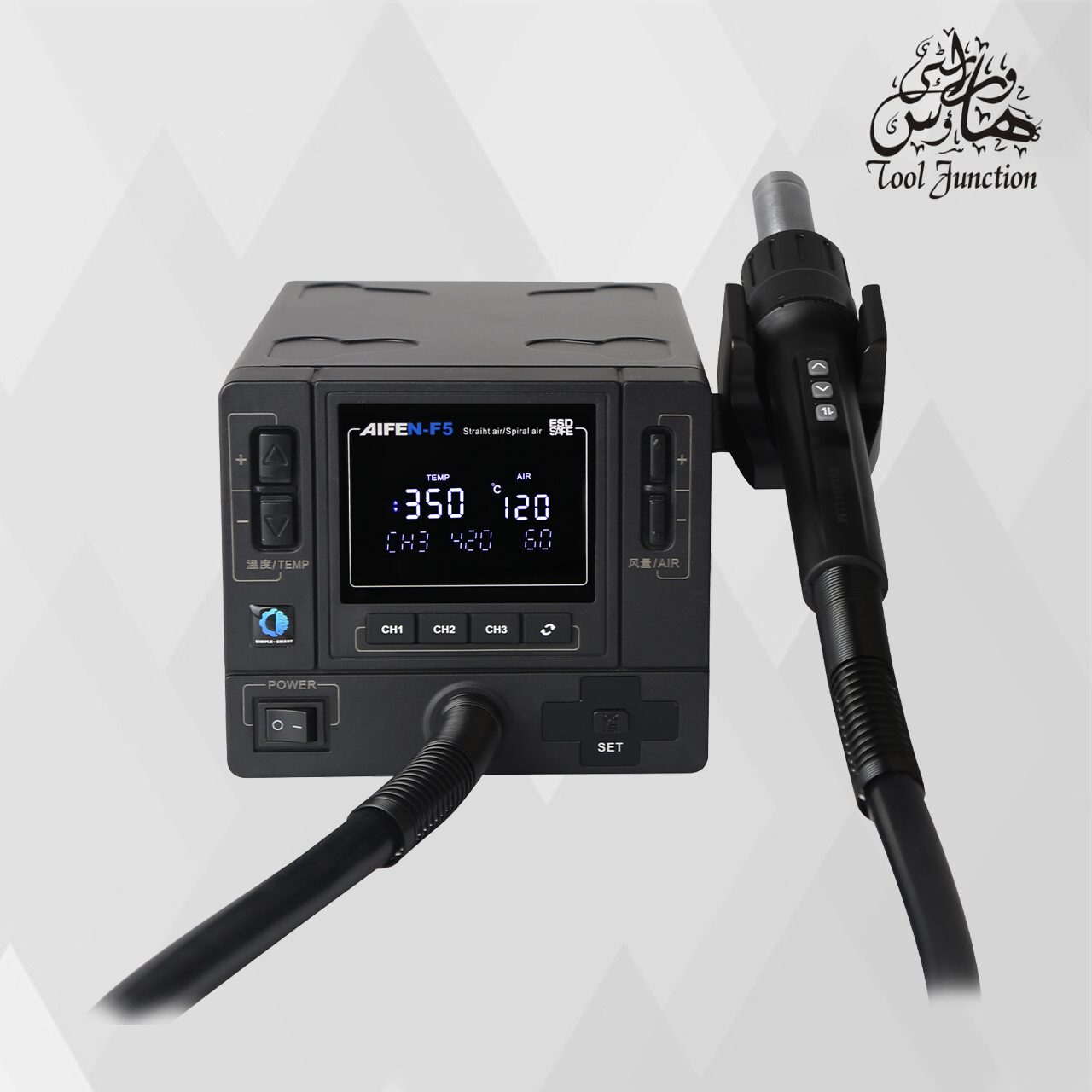

F5 PRO AIFEN 1000W Hot Air Rework Station.For Mobile BGA PCB Repair,Soldering and Desoldering BGA Chips on Motherboards. Key Features: It has a color display screen and a segmented curve heating function that allows for setting specific preheating temperatures and times. Included Accessories: The station comes with a hot air gun handle and six different nozzles. Power: The device has a power output of 1000W. Temperature Range: The temperature can be adjusted from 100℃ to 500℃ (212°F to 932°F).

79 / 100

AIFEN F5 PRO HOT AIR GUN

  • The F5Pro Heat gun features a cool color display that enhances visual appeal and makes operation more intuitive
  • It has a unique temperature can be set segment curve heating function, preheating and rapid welding combined to meet different welding needs
  • Its Roc curve mode presets 3 groups of operating intervals, each group can set the preheating temperature and heating time freely. After each group reaches the preset temperature, it will automatically enter the next group of working mode
  • After entering the Roc curve mode, the machine panel will display the current stage, real-time temperature, air volume and working countdown, and automatically jump to the next stage after each stage is completed until the three stages of heating are completed
  • In addition, the newly designed wire controller and key control mode support temperature control mode and memory mode, making the operation more flexible and convenient
  • The upgraded version of the knob heating core does not need to be fixed with screws, and can be unlocked and replaced by hand twisting
  • The standard 7b heating core is equipped with one, which is more convenient to use
  • Switching power supply makes it small in size and light in weight, easier to carry and use
  • High speed small motor ensures strong air output and efficient and stable welding process
  • The new UI operation interface makes the operation easier and easier, and the novice can quickly get started
  • New 15mm, 17mm square wind nozzle each, with a special wind gun frame, welding motherboard more accurate and convenient
  • The power is 1000W, the input voltage is AC 220V/50Hz or AC 110V/60Hz, the temperature range is 100℃~500℃ / 212°F~932°F, the air volume is 001-160lv, and the operating time of Roc mode is a total of three segments, each of which is up to 330 seconds.
