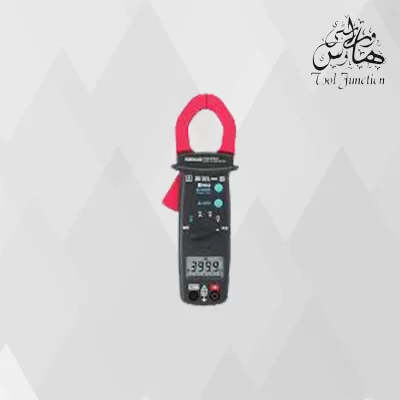

DCM-400AD Clamp Meters/DC/AC

Description

9 / 100
  • ■ 4000 count / 42 segment analog bar graph
  • ■ DC / AC current 40A/400A
  • ■ Data hold / Range hold
  • ■ Relative value
  • ■ Continuity check buzzer
  • ■ Continuity check buzzer
  • ■ Low battery power indication

Display : numeral display 3999, bar graph 42 segments
Sampling rate : 2 times / sec. 20 times / sec. for bar graph
AC frequency bandwidth : 50〜500Hz

Specifications

9 / 100

DCM-400AD

Measuring range

Best Accuracy

Resolution

ACA 40/400A +(2%+10) 0.01A
DCA 40/400A +(2.5%+10) 0.01A
ACV 400/600V +(1.5%+5) 0.1V
DCV 400/600V +(1%+2) 0.5V
Resistance 400 +(1%+2) 0.1
Continuiy Buzzer sound at less then approx.40.opne voltage:approx1.5V
Bandwidth 50~500Hz
display 4000
Clamp diametter Condactor Size 25mm/10*34mm
Whth stand Voltage Less then 3700Vrms
Battery LR03*2
Size/Mass H193*W50*D28mm/approx.230g
Standard accessories included Test lead

Optional Accessories

9 / 100

Adapter : CL-13a, CL-14,CL-15a, CL-DG3a, TL-9IC, TL-A4, TL-A7M, TL-A7M2
Test lead : TL-21M, TLF-120
