GSCETE GT683PV Solar Panel Tester MPPT Meter

⁠Safety Precautions

(1) This product strictly adheres to the safety standards of the Chinese solar energy industry and the safety design standards of the European solar energy industry.
2) Please read the “Safety Precautions” before using the instrument and operate strictly in accordance with the prescribed safety regulations.
(3) Please measure correctly within the safety range specified by national safety measurement standards and the corresponding range of the product to avoid possible damage from incorrect operation of the instrument.
(4) Do not touch conductors with a voltage exceeding 30V during measurement. Please be careful to avoid electric shock.
(5) When the measurement exceeds the range, a high-voltage lightning symbol and a buzzer alarm will be displayed. Please pay attention to measurement safety.
(6) Do not use in flammable, explosive or other special environments to avoid danger.
(7) When the low battery symbol is displayed, replace the battery in time to avoid measurement errors.
(8) Before measurement, check if the test leads are damaged or leaking electricity. If any are found, do not use them.
(9) Correctly connect the standard MC4 and check the positive and negative polarity of the test leads.
(10) Please pay attention to safety symbols and safety warnings.

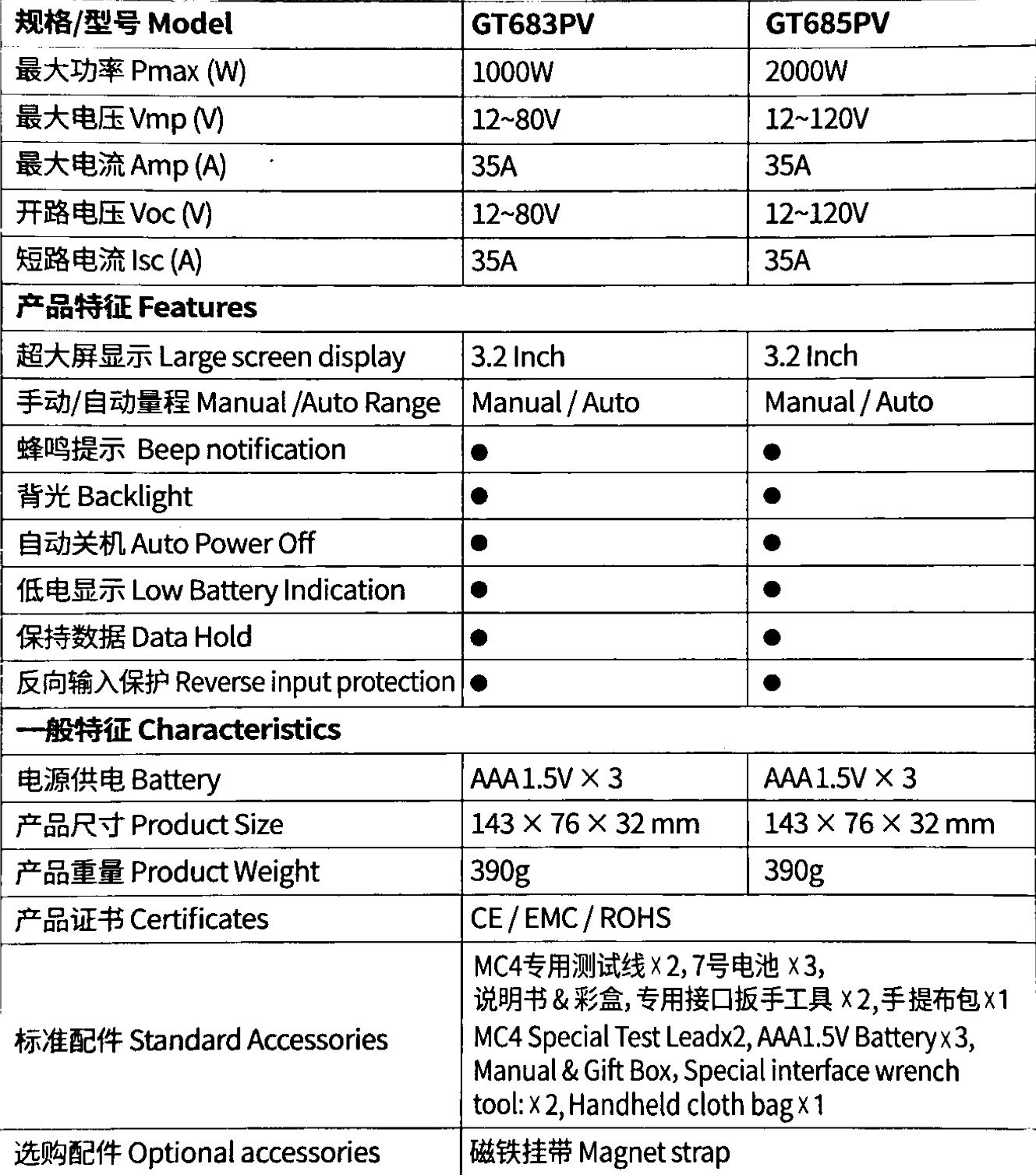

⁠General Technical Specifications

Product range: Maximum Power Pmax 1000W (GT683PV)
Maximum Power Pmax 2000W (GT685PV)
Input protection:Anti-mistake input, positive and negative reverse protection, internal over-temperature protection.
Sampling rate: 3 times/s; Overload display OL
Auto power off: About 10 minutes
Operating temperature: 0cs40°C
Accuracy: 23°Ct5°C (18c28°C: Humidity < 75%); 1 year Storage temperature: -10c60°C; Humidity ≤ 80%
Pollution grade: 2
Altitude: 0c2000m
Battery-powered: 7/AAA 1.5V × 3
Dimensions: 142.5Hx 76W × 32D mm
Weight: 198g (standard battery included, weight varies for different models)
Test accessories: MC4 dedicated test cable, standard MC4
panel power generation installation systems, and is also a professional measuring tool for solar photovoltaic panel enthusiasts for installation and maintenance.
4.⁠ ⁠Appearance description
(1) LCD display
(2) Function key
(3) Black test input port for negative voltage V-
(4) Red test input port for positive voltage V+

Overview

This is a brand-new professional design solar panel power tester. It has a very comfortable grip. The design is ergonomic and features a large LCD screen. It boasts high precision, high performance, shock resistance, safety and stability. It can accurately measure the maximum point power, maximum point voltage, and maximum point current of the solar panel. It is equipped with reverse operatior. protection and internal over-temperature protection it is suitable for professional solar panel manufacturers, soler panel power generation installation systems, and is also a professional measuring tool for solar photovoltaic panel enthusiasts for installation and maintenance.
4. Appearance description
(1) LCD display
(2) Function key
(3) Black test input port for negative voltage V-
(4) Red test input port for positive voltage V+
