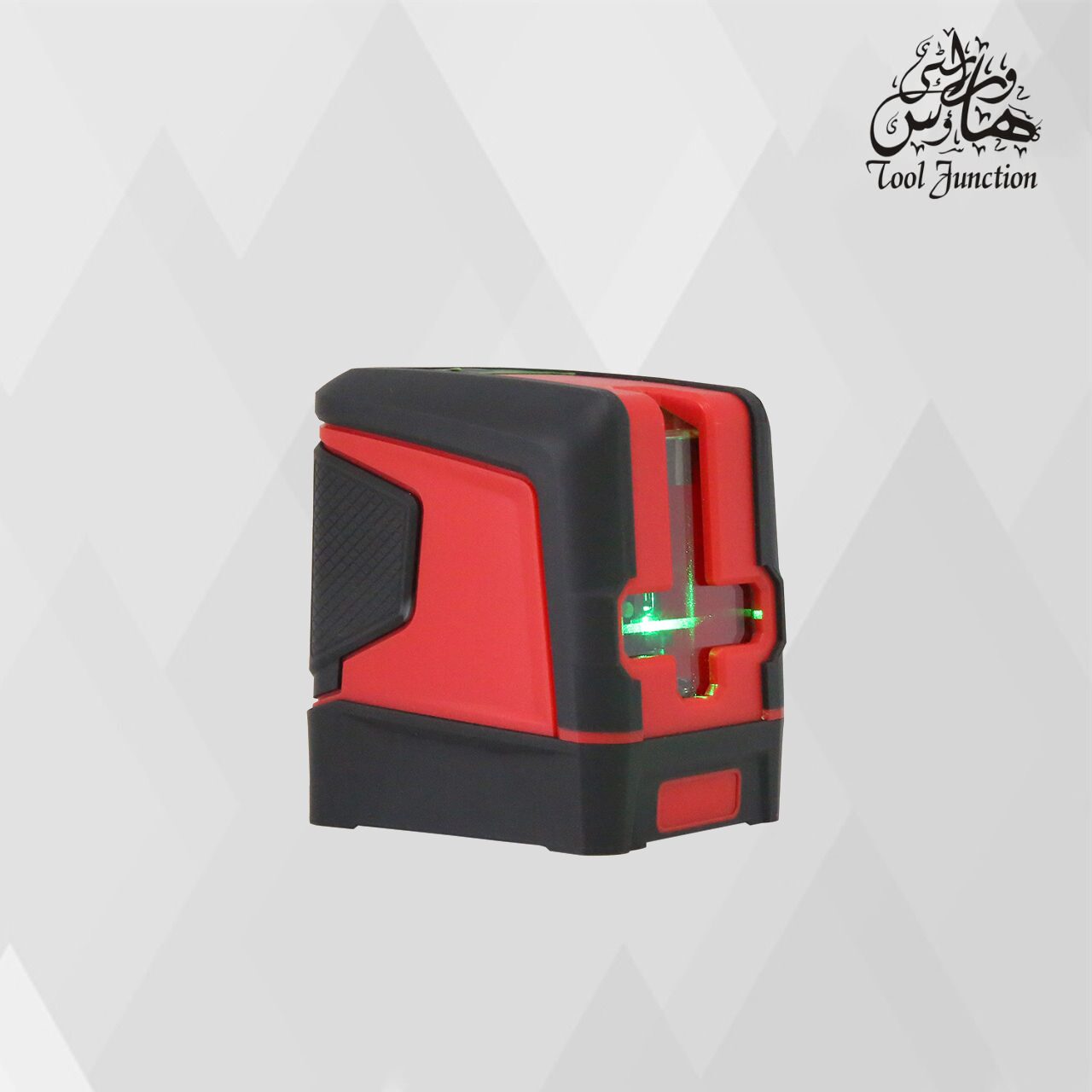

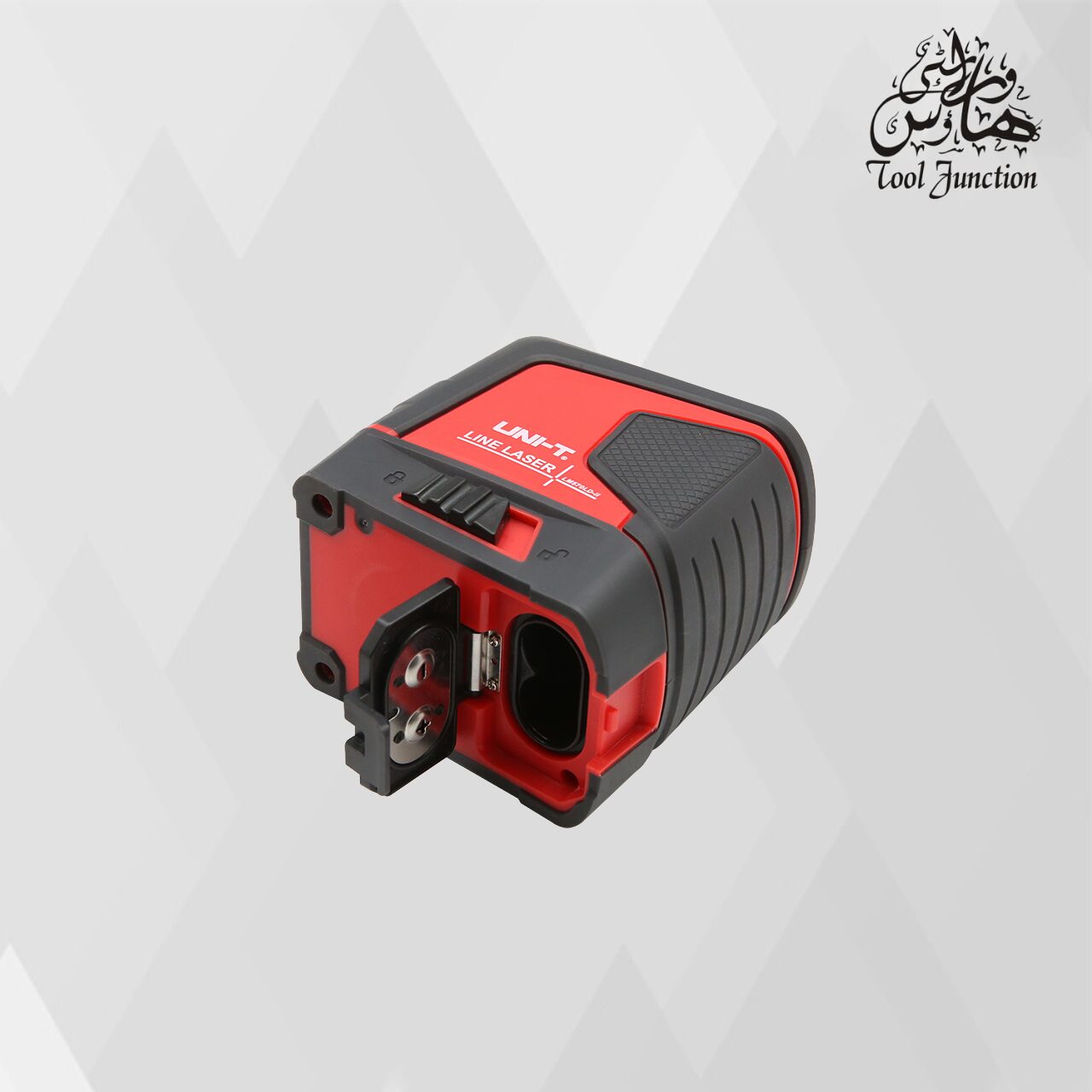

UNIT utLM570LD-II Series Laser Levelers
UNIT utLM570LD-II Series Laser Levelers
₨10,810
These laser levelers are equipped with green LD laser, suitable for large or bright work places. Its applications include: horizontal, vertical, cross line projection for decoration, building construction, home decoration, renovation, furniture installation, flooring, and project layout.
Buy Now
Add to cart
Features
● Osram LD green laser
● Self-leveling mode & manual mode
● Outdoor pulse mode
● 5200mAh Li-ion battery
● Type-C DC-in port
● Complimentary bracket
Specifications
Specifications
| Specifications | LM570LD-II | LM573LD-II | LM575LD | LM576LD | LM585LD |
| Certificates | CE, UKCA (LM570LD-II/575LD only) | ||||
| Laser type | Green LD | Green LD | Osram green LD | Osram green LD | Osram green LD |
| Laser lines | 2 lines | 3D 12 lines | 3D 12 lines | 3D 16 lines | 8 lines |
| Operating distance | 10m | 40m | 40m | 30m | 30m |
| Laser accuracy | ±3mm/10m | ±3mm/10m | ±3mm/10m | ±3mm/10m | ±3mm/10m |
| Outdoor pulse mode | √ | √ | √ | √ | |
| Remote control | √ | √ | √ | √ | |
| Self-leveling range | 3°±1° | ±3° | ±3° | ±3° | ±3° |
| Self-leveling time | 3s | <3s | <3s | <3s | <3s |
| Working hours | 4h | >6h | >6h | >4h | >4h |
| Laser wavelength | 520nm | ||||
| Laser class | 2 | ||||
General Characteristics
General Characteristics
| Power | LM570LD-II: 1.5V battery x 2 (LR6); LM573LD-II/LM575LD/LM576LD/LM585LD: 3.7V Li-ion battery 5200mAh | ||||
| Product net weight | LM570LD-II: 240g; LM573LD-II/LM575LD: 694g; LM576LD: 653g; LM585LD: 591g | ||||
| Product size | LM570LD-II: 85.5mm x 62mm x 90.3mm; LM573LD-II: 119mm x 89mm x 138mm; LM575LD/LM576LD: 138mm x 89mm x 147mm; LM585LD: 138mm x 89mm x 136mm | ||||
| Standard accessories | USB cable, adapter, English manual | ||||
| Standard individual packing | Gift box, tool box | ||||
| Standard quantity per carton | LM570LD-II: 20pcs; LM573LD-II/LM575LD/LM576LD/LM585LD: 4pcs | ||||
| Standard carton measurement | LM570LD-II: 420mm x 320mm x 350mm; LM573LD-II/LM575LD/LM576LD/LM585LD: 620mm x 355mm x 325mm | ||||
| Standard carton gross weight | LM570LD-II: 10.71kg; LM573LD-II/LM575LD/LM576LD: 10.63kg; LM585LD: 10.22kg | ||||
