MF15 Analog Multimeter


9 / 100

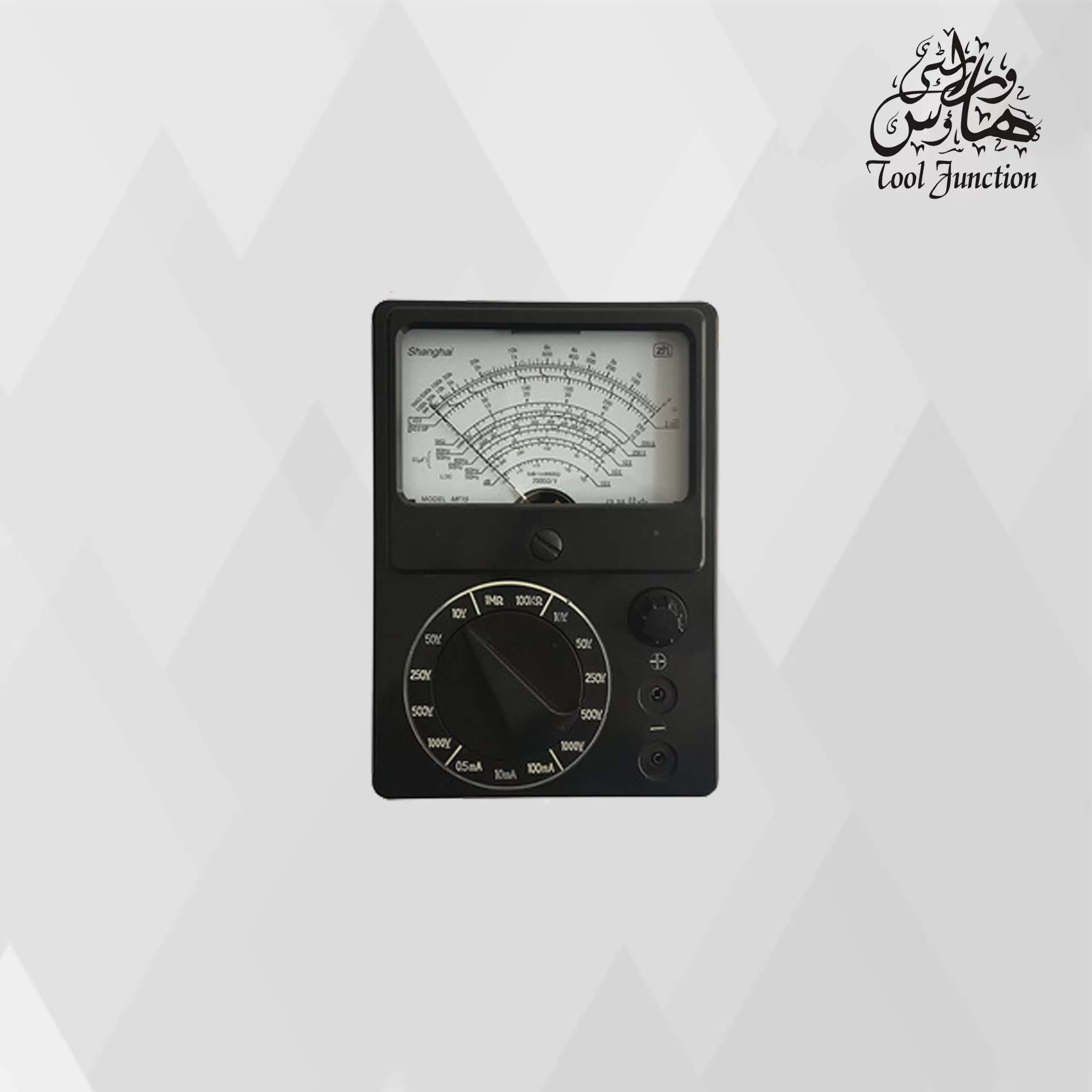

Model MF-15 pocket Multimeter is a rectifier type moving coil instrument designed for radeio servicing and electrical measurements of D.C. current and voltage, A.C. voltage. Output lever,capacitance and inductance.

Main Technical Data

Accuracy: D.C. 2.5 A.C. 5

D.C. resistance 2.5 of scale length

Package content:

9 / 100

1.MF15 Multimeter
3.test lead
4.Dry cell
5.color box



9 / 100

Model Name: MF15
Color: Black
Size: 132*92×43mm
Size with package:  136*118*52.5MM
DCV: voltage:0~10~50~250~500~1000(2kΩ/V)
ACV: 0~10~50~250~500~1000(2kΩ/V)
DCA: 0~0.5~10~100mA
Resistance: 0~100kΩ;0~1MΩ
Output level: -10~+22~+36~=50~+56~+62dB
Capacitance: 0~0.03~0.6uF
Inductance: 10~1000H
High resistance: 0~100MΩ
Working condition:
Ambient temperature:  0°C~+50°C
Relative humidity: <85%
Frequency range : 45~1000Hz
Packing information:  20pcs/carton, G.W./N.W.:8.5/7.5KGS,Meas:39.5*31.5*38MM
