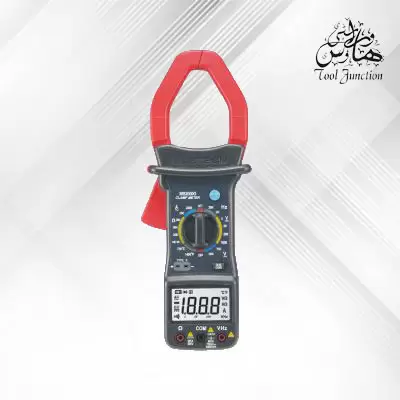

MS2000G – Digital AC Clamp Meter
MS2000G – Digital AC Clamp Meter
● Power Supply : 1×9V 6F22 Battery
● Product Size : 282mm×104mm×47mm/11″×4.1″×1.85″
● Product Weight : 570g/1.26lb
● Certificate : RoHS
● Safety Rating : CAT II 1000V
Description
● Display 2000 counts
● Jaw Opening Ф55mm/2.2″
● Diode Open Voltage 3.0V
● Continuity Buzzer less then 30Ω
● Data Hold
● Display Backlight
● Low Battery Display
Specification
| 1 | Specifications | Range | Resolution | Accuracy |
| 2 | DC Voltage | 2V/20V/200V | 1mV/10mV/0.1V | ±(0.5%+1) |
| 3 | 1000V | 1V | ±(1.0%+2) | |
| 4 | AC Voltage | 200V/750V | 0.1V/1V | ±(1.0%+3) |
| 5 | AC Current | 200A | 0.1A | ±(2.0%+5) |
| 6 | 2000A(<600A) | 1A | ±(2.0%+5) | |
| 7 | 2000A(600A~1000A) | 1A | ±(3.0%+5) | |
| 8 | 2000A(>1000A) | 1A | ±(3.0%+15) | |
| 9 | Resistance | 200Ω | 0.1Ω | ±(1.0%+3) |
| 10 | 20kΩ/2MΩ | 10Ω/1kΩ | ±(1.5%+15) | |
| 11 | Frequency | 2kHz | 1Hz | ±(2.0%+5) |
| 12 | 20kHz | 10Hz | ±(1.5%+5) | |
| 13 | Temperature | 0℃~400℃/32℉~752℉ | 1℃/1℉ | ±(1.0%+3) |
| 14 | 401℃~750℃/753℉~1382℉ | 1℃/1℉ | ±(2.0%+1) |
