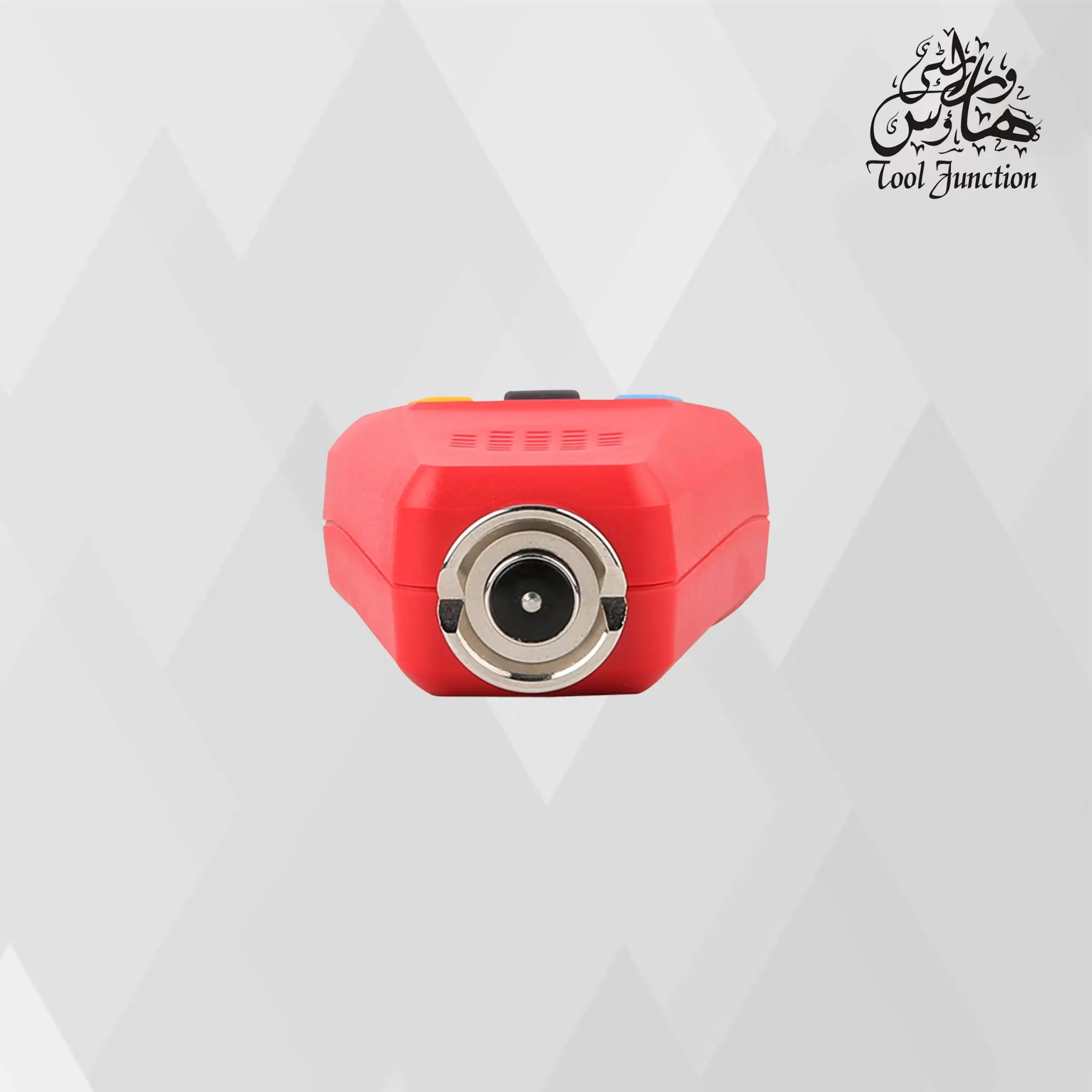

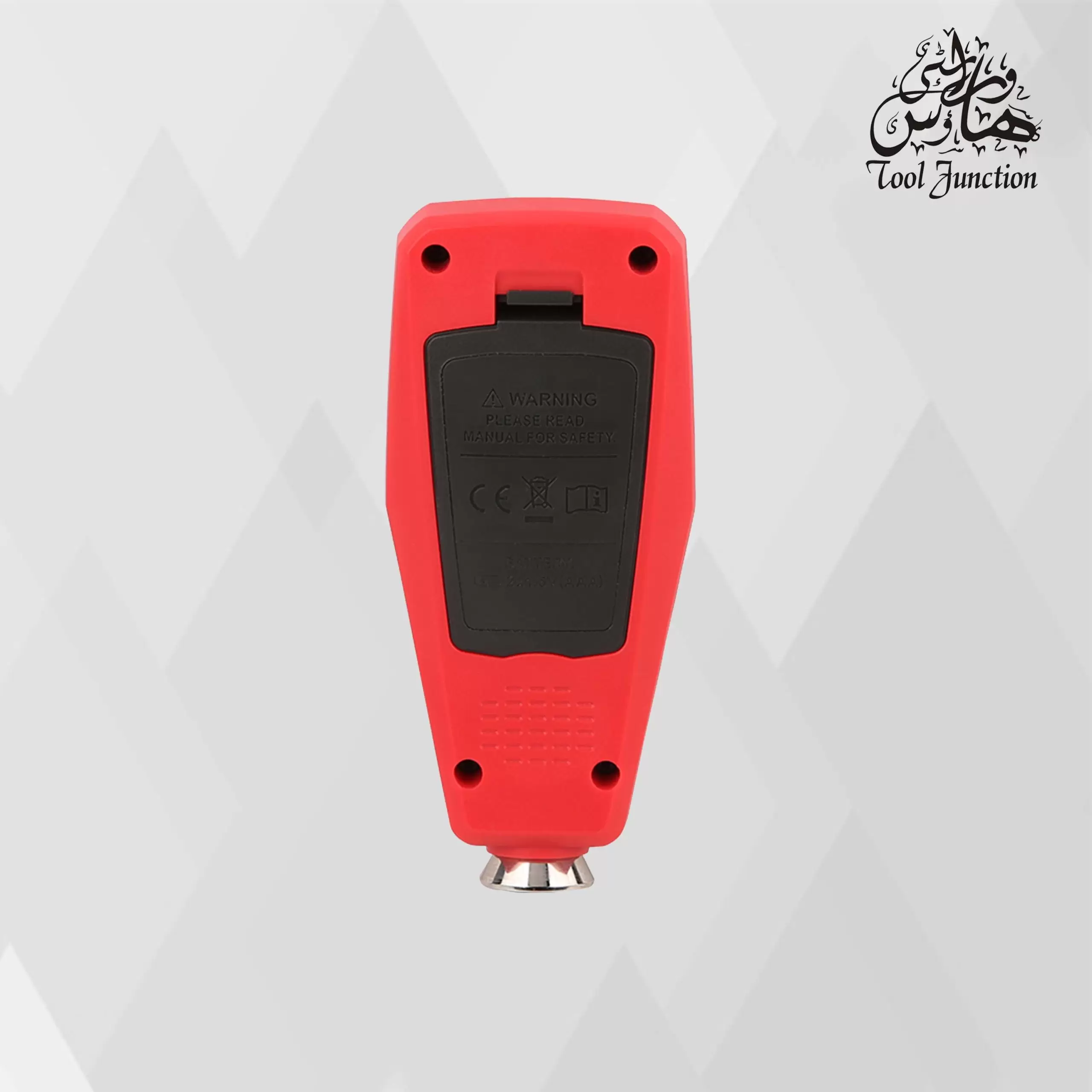

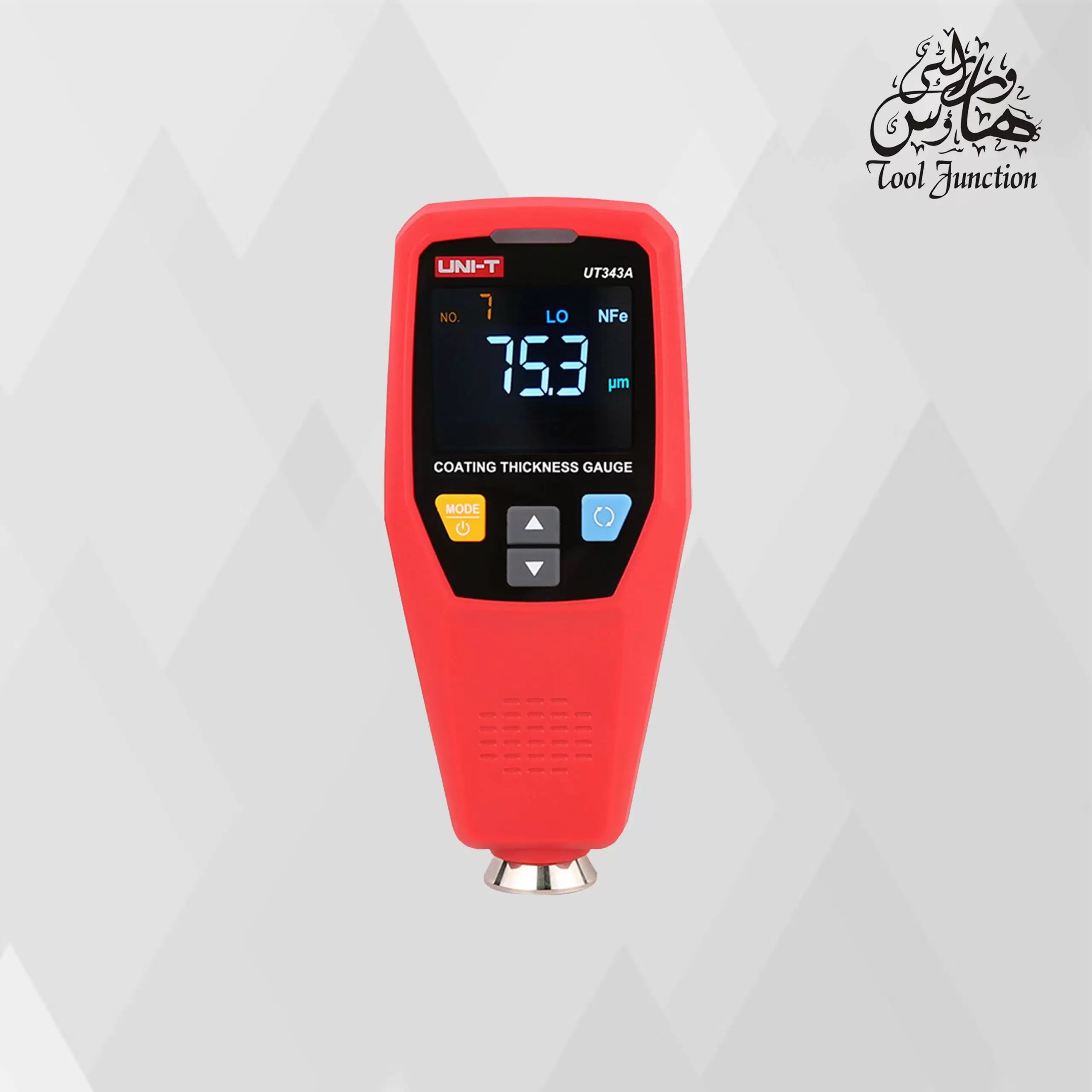

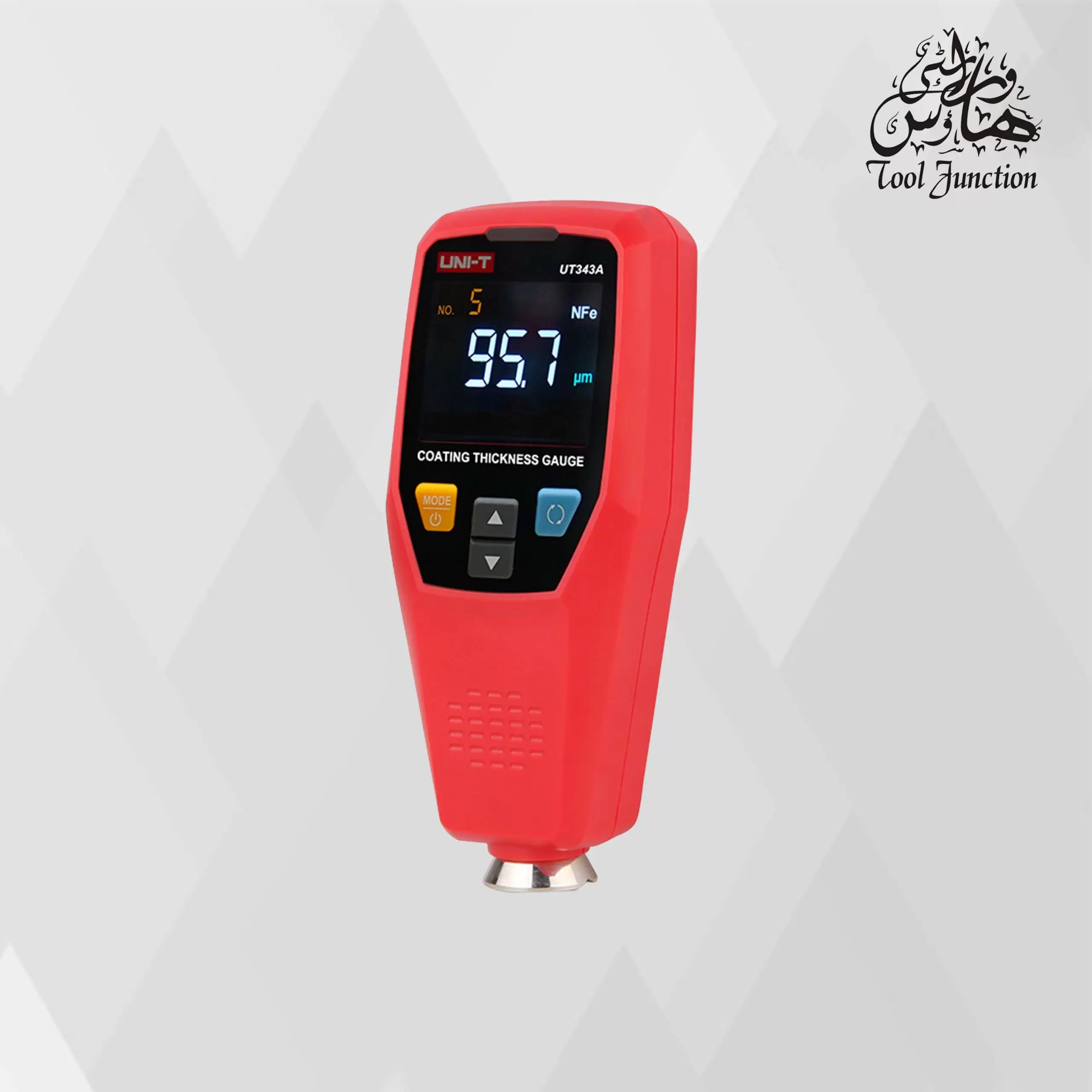

UT343A Coating Thickness Gauge

UT343A is used to measure the thickness of the plated and coated sheet on ferrous/non-ferrous, it has the large range up to 1750um, which is widely used in manufacturing industry, metal-processing industry, chemical industry, commodity inspection area, and also able to work steadily in workshop and outdoor.

Features

12 / 100

1. Data storage: 199 groups

2. Measurement method: Single/Continuous
3. Max/Min/Avg
4. Unit conversion (um/mil)
5. Rotatable screen
6. LED/Buzzer alarm
7. Auto power off

Tech. Spec

12 / 100
Specifications Range
Certificates CE, UKCA
Measuring range 0~1750um
Accuracy ±(3%H+1)um
Measurement method Single/Continuous
Measurement mode Max/Min/Avg
Metal type Ferrous/non-ferrous
Features
Display type EBTN display
LCD brightness control
Rotatable screen
Unit conversion
Audio alarm
LED alarm
Data storage 199 groups
Auto power off
Low battery indication
General Characteristics
Power 1.5V battery (LR03) x 2
Product color Red and grey
Product net weight About 111g
Product size 117mm x 53mm x 37mm
Standard accessories Ferrous substrate, non-ferrous substrate
Standard individual packing Gift box, English manual

Models & Comparison

12 / 100
Specifications Range
Certificates CE, UKCA
Measuring range 0~1750um
Accuracy ±(3%H+1)um
Measurement method Single/Continuous
Measurement mode Max/Min/Avg
Metal type Ferrous/non-ferrous
Features
Display type EBTN display
LCD brightness control
Rotatable screen
Unit conversion
Audio alarm
LED alarm
Data storage 199 groups
Auto power off
Low battery indication
General Characteristics
Power 1.5V battery (LR03) x 2
Product color Red and grey
Product net weight About 111g
Product size 117mm x 53mm x 37mm
Standard accessories Ferrous substrate, non-ferrous substrate
Standard individual packing Gift box, English manual
