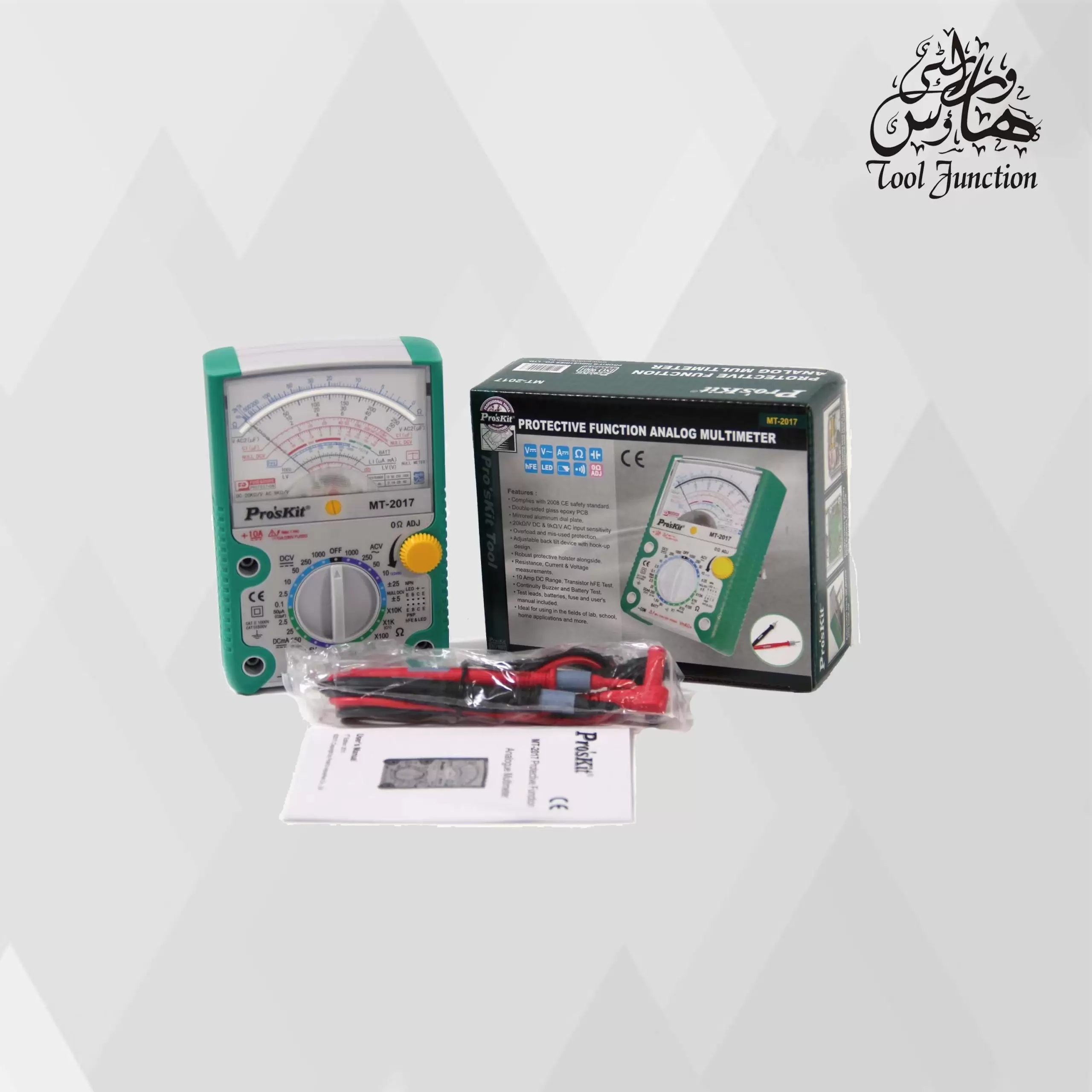

Analog Multimeter Pro’skit – Null DCV MT-2017 Proskit

Categories: Tags:

Basic Features

14 / 100
Powered by Rank Math SEO

  • Complied with 2008 CE safety standard
  • Double-sided glass epoxy PCB
  • Mirrored Aluminum dial plate
  • 20kO/V DC & 9,kO/V AC input sensitivity
  • Overload and mis-used protection
  • Adjustable back tilt device with hook-up design
  • Robust protective holster alongside
  • Resistance, Current & Voltage measurements
  • 10 Amp DC Range, Transistor hFE Test
  • Continuity Buzzer and Battery Test
  • Zero-center meter (Null)
  • Test leads, batteries, fuse and user’s manual included
  • Ideal for using in the fields of lab, school, home applications and more

Safety/Specifications

14 / 100
Powered by Rank Math SEO

Specification

Measuring range
Front Panel Controls Range selector switch with “OFF” position,
0O adjust knob
Power 1.5V AA x 2pcs and 9V(NEDA1604) x 1pcs
Movement and
Indicator Protection		 0.5A /250V
Dimensions 160(L) x 105(W) x 40(H) mm
Weight 390g apporx.
DCV 0-0.1-2.5-10-50-250-1000V
Null DCV DC±-5V, ±25V
ACV 0-10-50-250-1000V
DCA 0-0.05-2.5-25-250 mA,10A
Resistance 1 / 10 / 100 /1K / 10K?
Capacitance 0.025-0.25-25uF(C2), 2000uF(C1)
Battery Check 0 ~ 1.5V: GOOD – ? – BAD, 0 ~ 9V: GOOD – ? – BAD
Transistor Check hFE: 0-1000
Decibel -22 dB ~ + 62 dB (0dB=1mW at 600?)
Continuity Check Beeper sounding under 200 Ohm
