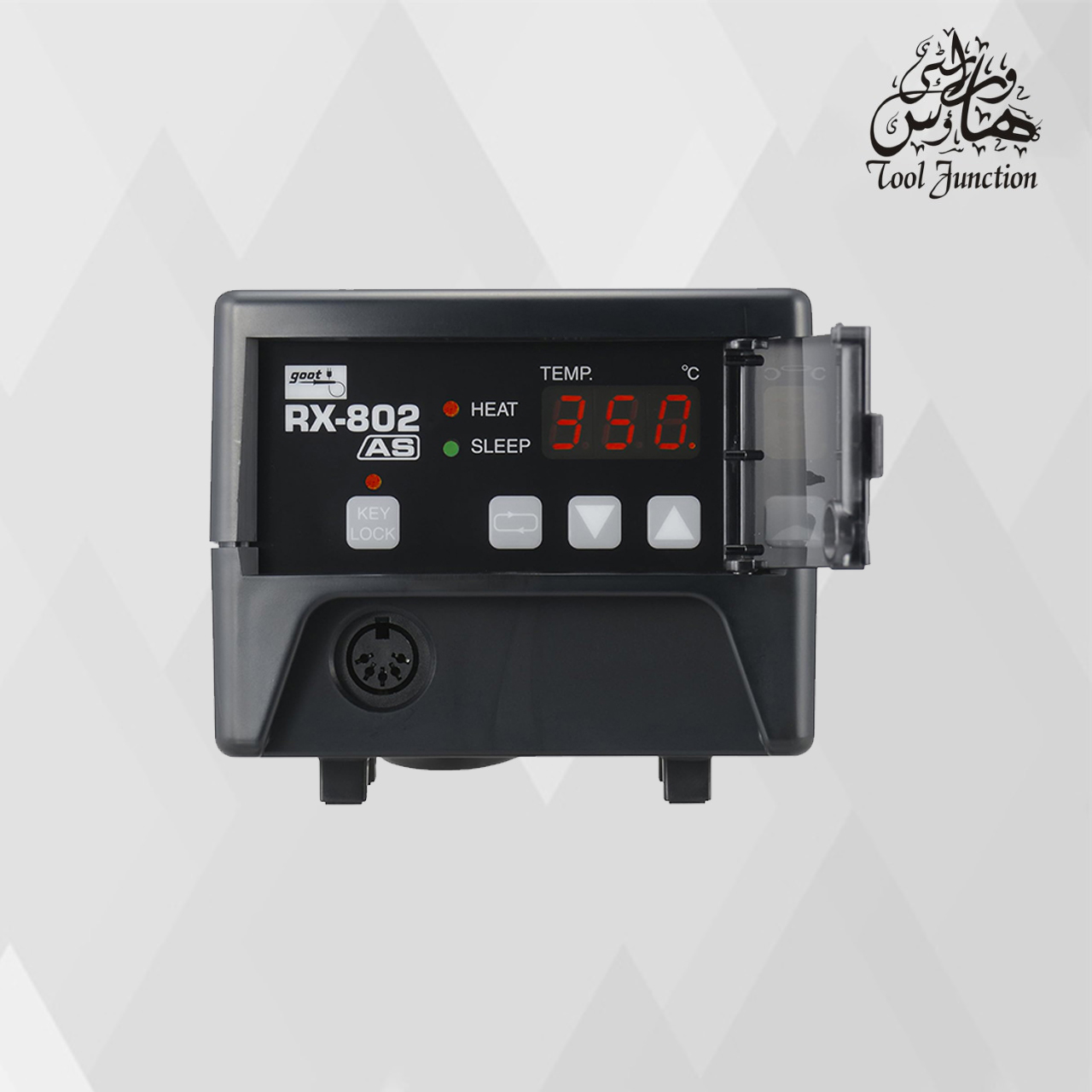

Temperature-Controlled Lead-Free Soldering Station RX-802AS
Temperature-Controlled Lead-Free Soldering Station RX-802AS
6 seconds to set temperature. The ultimate solution for lead-free soldering.
[su_tabs vertical=”yes”][su_tab title=”Product Details”]
Featured
Excellent Heat Recovery (PAT.)
There is almost no temperature fluctuation during continuous operation. Good for lead-free soldering.
Fastest in Its Class
Reaches set temperature in just 6 seconds after turning power on.
Tip Replacement without Tools (PAT.)
Slide-change tip. Easy to replace a hot tip without any other tools.
Reduced Grip Heat
Patented thermal-insulation grip permits comfortable and safe work.
Thick Tip Coating for Lead-free Soldering
All tips have extra-thick iron plating, to resist erosion by lead-free solder.
Slide the lever in the direction of the arrow. The tip will come out.
Hold and pull the plastic housing of the tip.
Functions
Tip-temperature Recovery Features
Accessories
Handpiece Grip Rubber
[/su_tab]
[su_tab title=”Specifications”]
Specifications
| Model | RX-802AS |
| Voltage | 110V,120V,130V,220V,230V,240V AC 50/60Hz |
| Power Consumption | 80W |
| Power Cord Length | 1.2m |
| Temperature Setting Range | 50–450°C |
| Ripple temperature | ±5˚C (unloaded) |
| Insulation Resistance | Over 100MΩ (500V DC) |

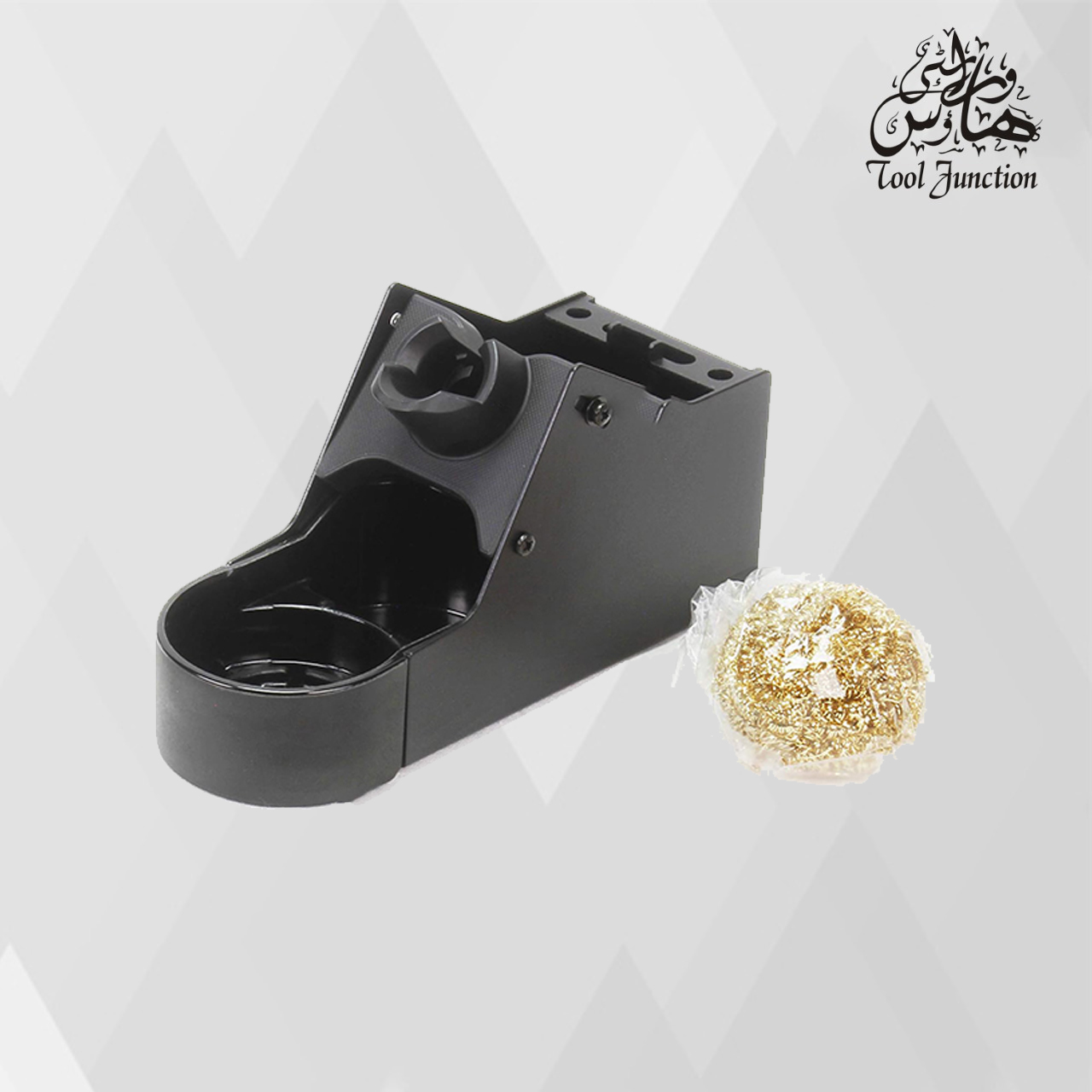

| Accessories | Soldering Iron Stand (ST-21) |
| Output Voltage | 24V AC |
| Dimensions | 115(W) × 98(H) × 146(D)mm |
| Weight | 1.8kg |
| Voltage/Consumption | 24V AC / 72W |
| Ground Resistance | Less than 2Ω |
| Leak Voltage | Less than 2mV |
| Heater | Nichrome heater |
| Cord Length | 1.2m |

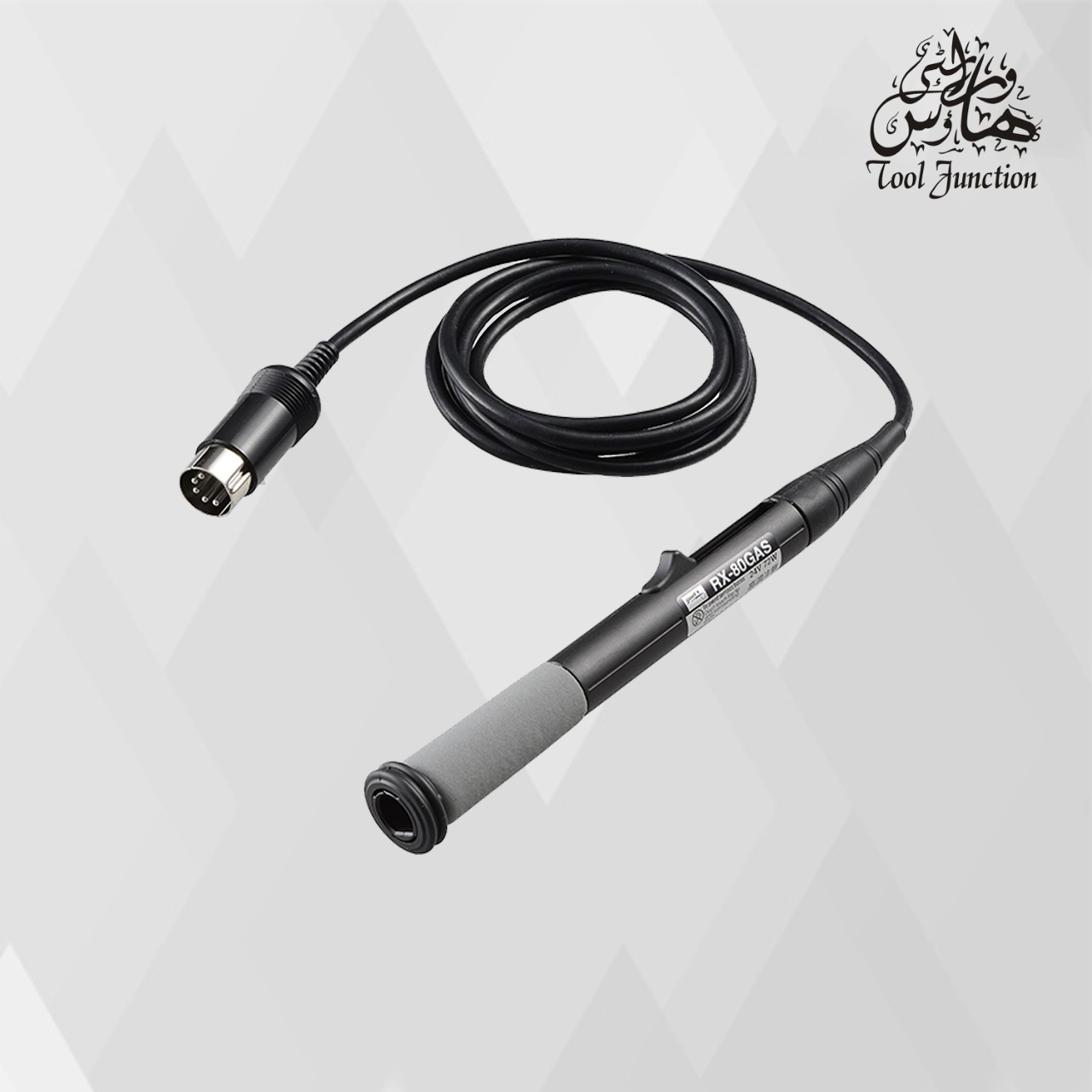

| Length | 158mm (with RX-80HRT-MB) |
| Weight | 28g (with RX-80HRT-MB) |
Equivalent to IPC/EIA J-STD-001C
*The length does not include the cord bushing. The weight does not include the cord.
