UNI-T UTL8211+ High-Precision Compact Dc Electronic Load
UNI-T UTL8211+ High-Precision Compact Dc Electronic Load
₨57,500
- UTL8211: Single channel 150V /40A, 400W
- CC/CV/CR/CP four basic modes
- 1mV/1mA high resolution
- Dynamic current test
- Voltage and current measurement speed up to 40kHz
- Multi-mode battery discharge test
- List mode, support automatic test
- Independent short circuit test function
- Various protections such as over voltage, low voltage, over current, over power, over heat, anti-reverse connection etc.
- Supporting PC software to realize remote operation and monitoring
- Power-off memory function
- Intelligent temperature control fan
- Standard RS-232C interface, support SCPI protocol
Buy Now
Add to cart
UNI-T UTL8211+ High-Precision Compact Dc Electronic Load
UTL8200+ SERIES
UTL8200+ series electronic load is equipped with 2.8-inch LCD display, convenient and simple operation, fashionable and generous appearance, stable operation, supports dual-channel completely independent test, has a wide power measurement range, the test resolution up to 1mV/1mA, with rich test functions and modes, while the standard RS-232C communication interface, flexible to meet a variety of field test conditions. Seamless connection with automated production lines and automatic test systems (ATS).

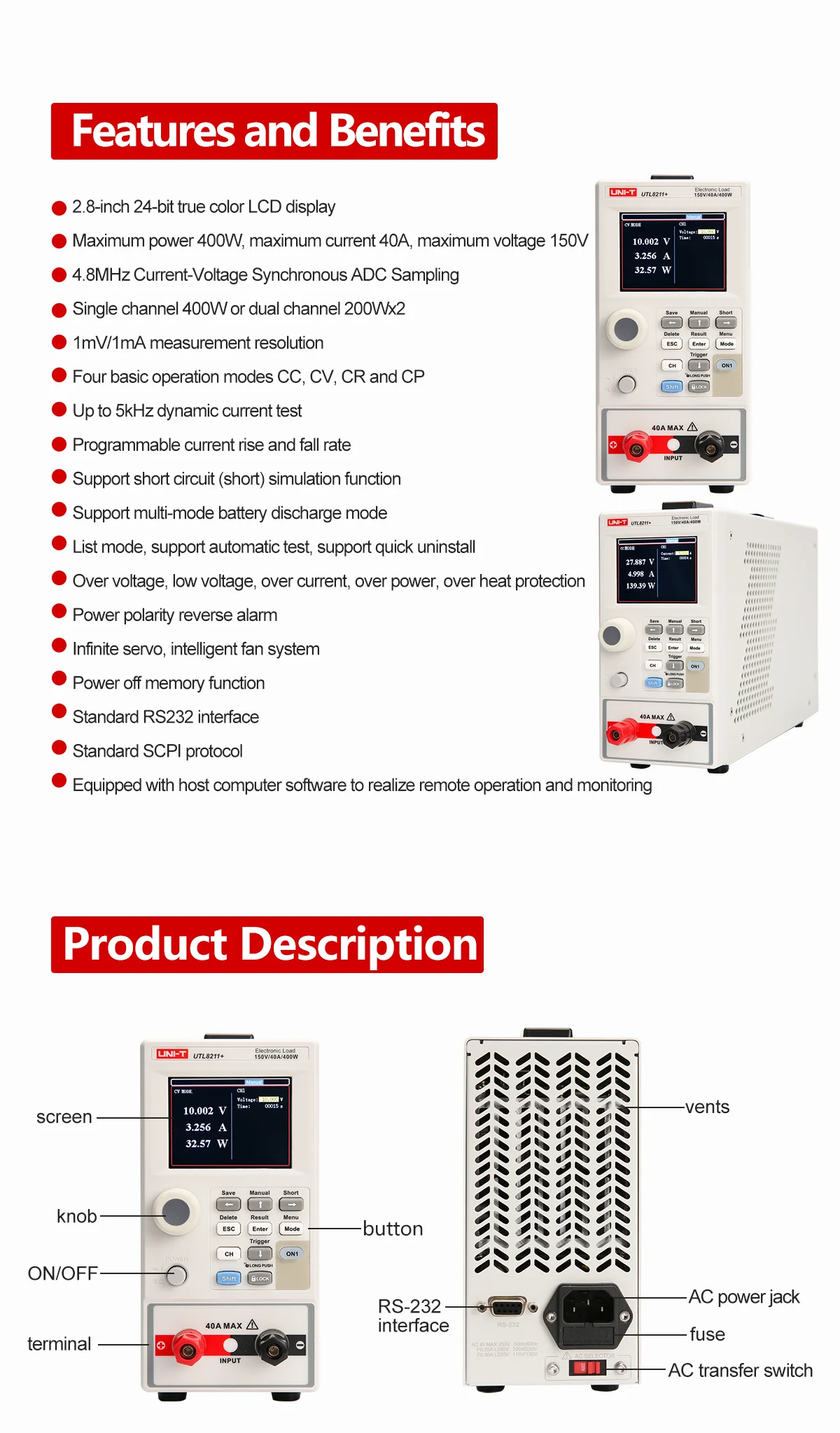

Features
1.2.8 inch large screen LCD display
Test resolution: 1mV/1mA
Voltage test range: 0~150V
Current test range: 0~40A (UTL8211+), 0~20A (UTL8212+)
Power test range: 0~400W (UTL8211+), 0~200W (UTL8212+)
2.Built-in 7 test modes
7 working modes: CC/CV/CR/CP/dynamic/list/battery
2.Independent short circuit test function
3.Multi-mode battery discharge test
4.Multiple protection functions
Various protections such as over voltage, low voltage, over current, over power, over heat, anti-reverse connection, etc.
5.RS-232C communication interface, intelligent temperature control fan, power-off memory function
Standard RS-232C interface: supporting PC software to realize remote operation Intelligent temperature control fan: Effectively reduce noise and help prevent the instrument from overheating Power-off memory: power on again to restore the last saved setting value
| Weight | 1.5 kg |
|---|
Features
1.2.8 inch large screen LCD display
Test resolution: 1mV/1mA
Voltage test range: 0~150V
Current test range: 0~40A (UTL8211+), 0~20A (UTL8212+)
Power test range: 0~400W (UTL8211+), 0~200W (UTL8212+)
2.Built-in 7 test modes
7 working modes: CC/CV/CR/CP/dynamic/list/battery
2.Independent short circuit test function
3.Multi-mode battery discharge test
4.Multiple protection functions
Various protections such as over voltage, low voltage, over current, over power, over heat, anti-reverse connection, etc.
5.RS-232C communication interface, intelligent temperature control fan, power-off memory function
Standard RS-232C interface: supporting PC software to realize remote operation Intelligent temperature control fan: Effectively reduce noise and help prevent the instrument from overheating Power-off memory: power on again to restore the last saved setting value

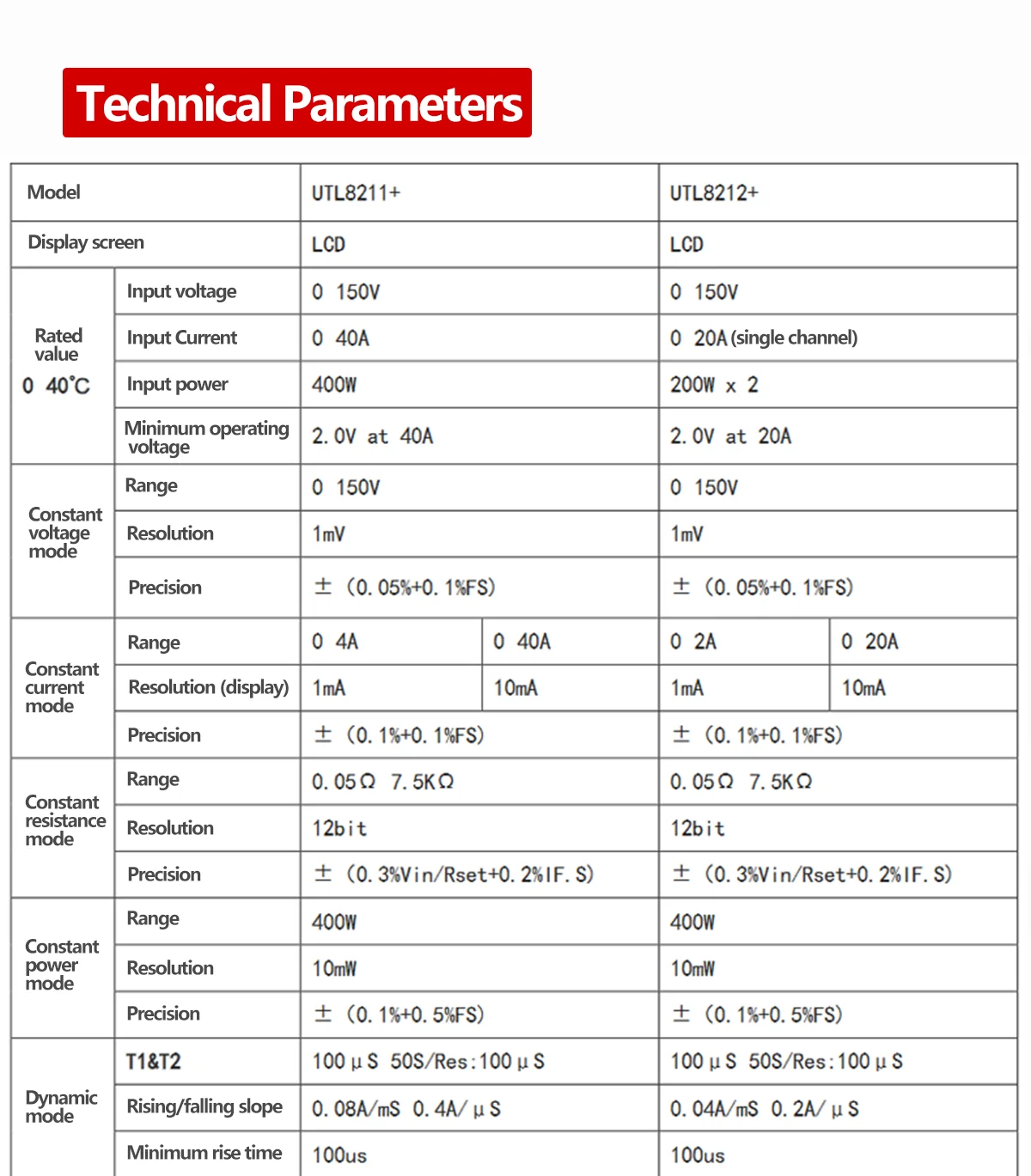

Specifications
| Number of channels | UTL8211+ Model | 1 | |
| Voltage | 0~150V | ||
| Rated value | Current | 0~4A, 0~40A | |
| Power | 400W | ||
| Input Voltage | 110V/220V | ||
| CC mode | Current | 0~4A, 0~40A | |
| Resolution: 1mA, 10mA; Accuracy: ±( 0.05% + 0.05%FS) | |||
| CV mode | Range: 0~18V, 0~150V; Resolution: 1mV, 10mV; Accuracy: ±(0.05%+0.1%FS) | ||
| CR mode | Range: 0.05Ω~7.5KΩ; Resolution: 16bit; Accuracy: 0.1% + 0.5%FS | ||
| CP mode | Range: 400W, 200W; Resolution: 10mW; Accuracy: 0.1% + 0.5%FS | ||
| Dynamic mode | T1&T2: 100uS-3600S; Accuracy: 5 μS±100 ppm; Slope: 0.001~0.15 A/μS | ||

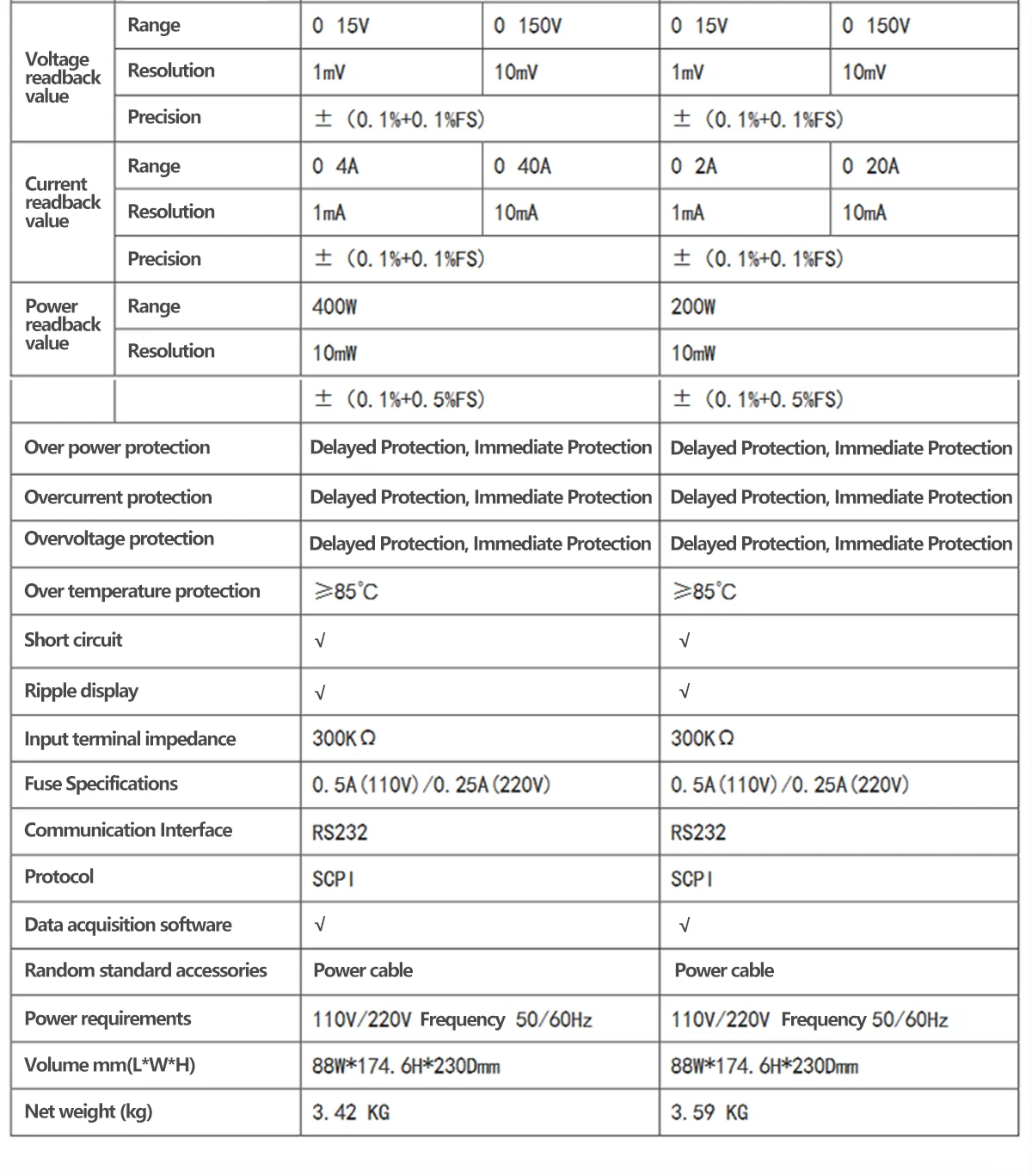

| Voltage readback | Range: 0~18V, 0~150V; Resolution: 1mV, 10mV; Accuracy: ±( 0.05%+ 0.1%FS) | ||
| Current readback | Range | 0~4A, 0~40A | |
| Resolution: 1mA, 10mA; Accuracy: ±( 0.05%+ 0.1%FS) | |||
| Power readback | Range: 400W, 200W; Resolution: 10mW; Accuracy: ±(0.1% + 0.5%FS) | ||
| Communication Interface | RS-232C | ||
| Protocol | SCPI | ||
| PC Software | Yes | ||
Uses
Power supply test, adapter/charger test, battery test, lithium battery protection board test, ATE, component test, etc., commonly used in home appliance manufacturers, LCD and other computer component manufacturers, switching power supply and LED manufacturers, adapter charger manufacturers and other companies Production and testing use.
