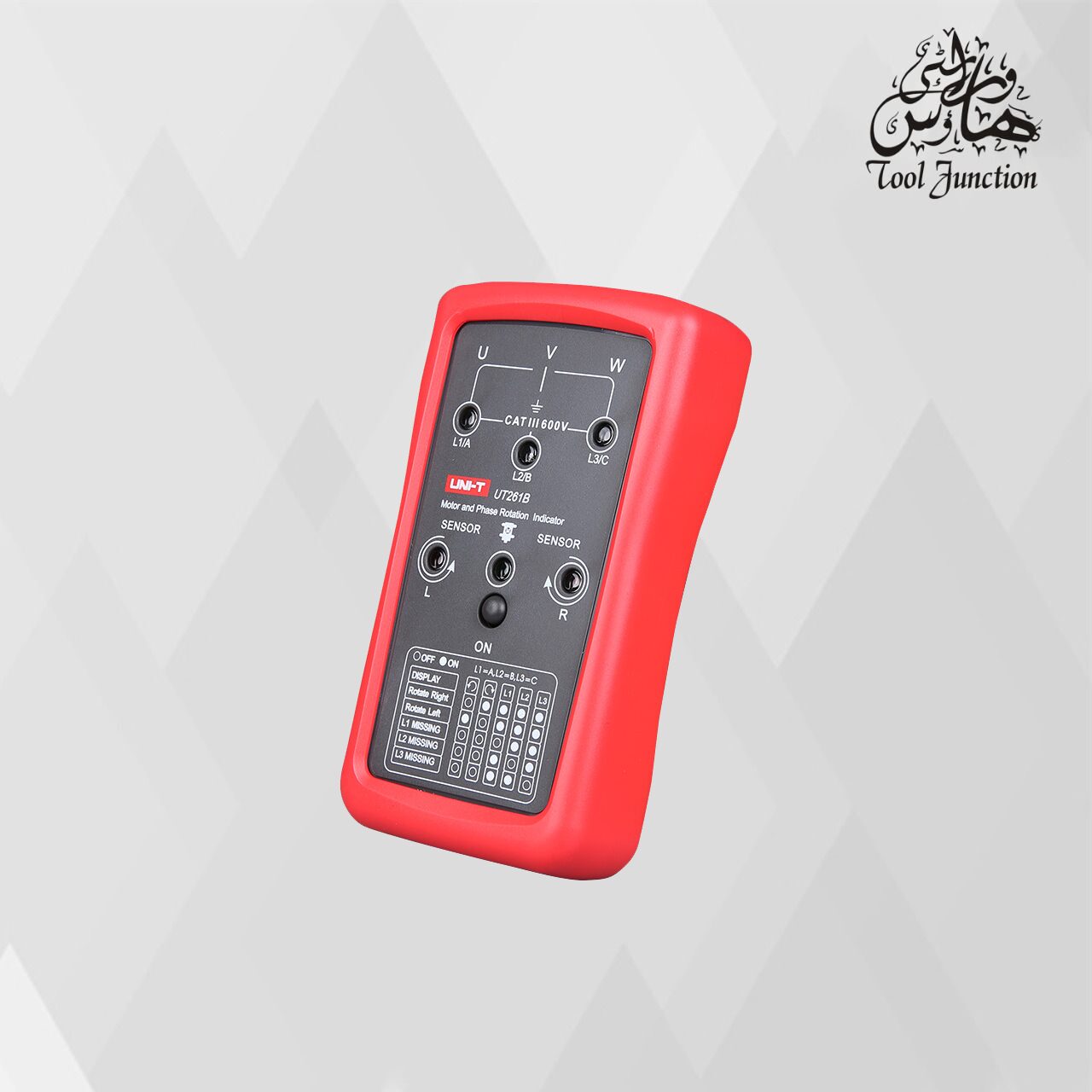

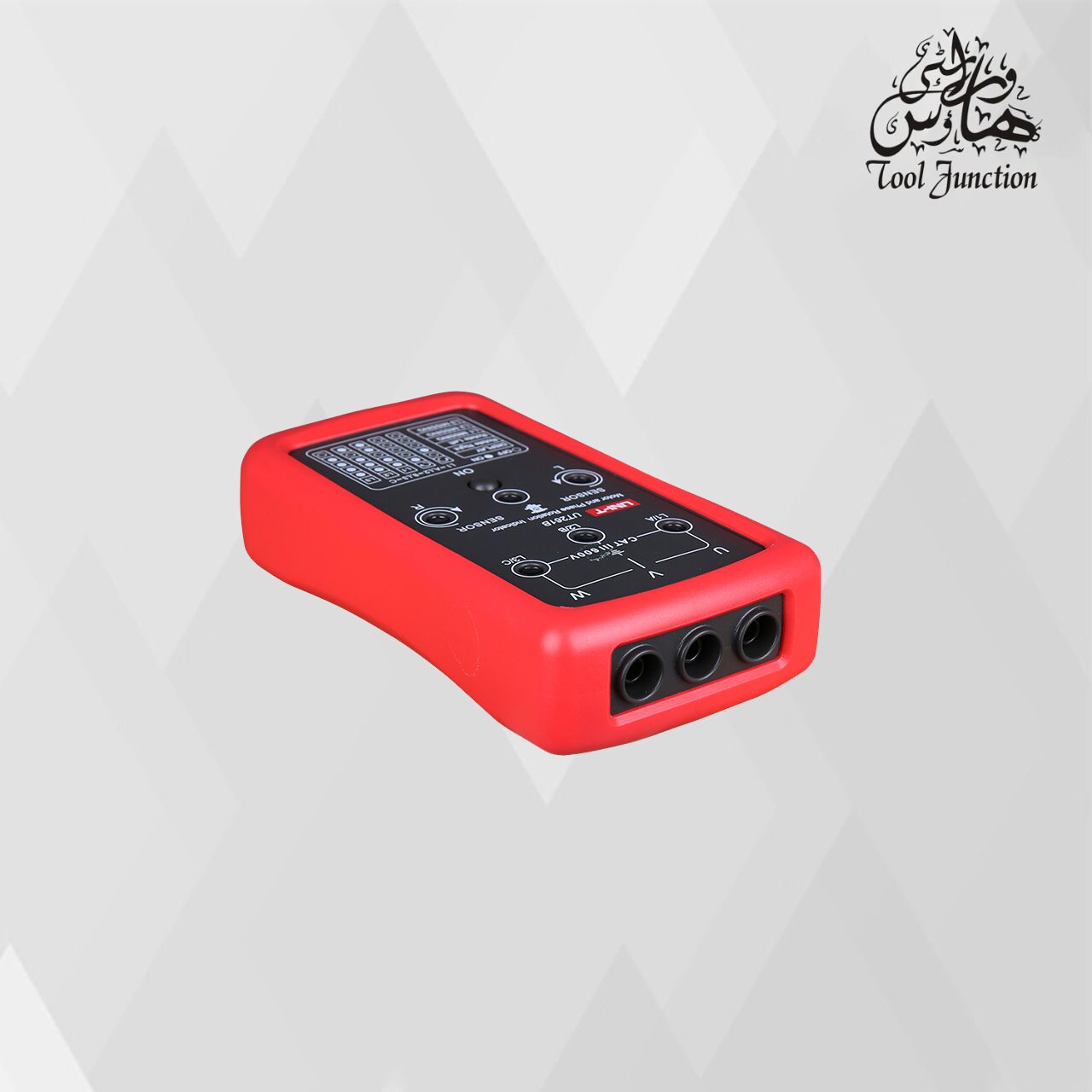

UNI-T Ut261A Phase Sequence And Motor Rotation Indicator
UNI-T Ut261A Phase Sequence And Motor Rotation Indicator
₨11,500
UT261 series is used for determining 3-phase power phase sequence, missing phase indication, and motor phase rotation (UT261B). UT261A and UT261B can measure AC voltage of 40~700V and 90~600V respectively. These devices can operate in frequency range of 15~400Hz. UT261 are durable devices which can withstand impact from 2 meter’ s height. Test leads with protective tubing are included in optional accessories.
Buy Now
Add to cart
| Weight | 1.5 kg |
|---|
Features
UT261 series is used for determining 3-phase power phase sequence, missing phase indication, and motor phase rotation (UT261B). UT261A and UT261B can measure AC voltage of 40~700V and 90~600V respectively. These devices can operate in frequency range of 15~400Hz. UT261 are durable devices which can withstand impact from 2 meter’ s height. Test leads with protective tubing are included in optional accessories.
Tech. Spec
Specifications | Range | UT261A |
| AC voltage (V) | 40V~690V | √ |
| Frequency (Hz) | 15Hz~400Hz | √ |
| Working current (A) | ＜1mA | |
Features | ||
| Phase sequence indication | LCD | |
| Missing phase indication | LCD | |
General Characterisitics | ||
| Power | No battery required | |
| Product color | Red and grey | |
| Product net weight | 160g | |
| Product size | 123mm x 71mm x 29mm | |
| Standard accessories | Battery, test lead with alligator clip x 3 | |
| Standard individual packing | Gift box, English manual, carrying bag | |
| Standard quantity per carton | 20pcs | |
| Standard carton measurement | 450mm x 325mm x 340mm | |
| Standard carton gross weight | 9.8kg |
Models & Comparison
Specifications | Range | UT261A | UT261B |
| AC voltage (V) | 90V~600V | √ | |
| 40V~690V | √ | ||
| Frequency (Hz) | 15Hz~400Hz | √ | √ |
| Working current (A) | ＜1mA | <3mA | |
Features | |||
| Phase sequence indication | LCD | LED | |
| Missing phase indication | LCD | LED | |
| Motor rotation indication | LED | ||
General Characterisitics | |||
| Power | UT261A: No battery required; UT261B: 9V battery (6F22) | ||
| Product color | Red and grey | ||
| Product net weight | UT261A: 160g; UT261B: 180g | ||
| Product size | 123mm x 71mm x 29mm | ||
| Standard accessories | Battery (UT261B), test lead with alligator clip x 3 | ||
| Standard individual packing | Gift box, English manual, carrying bag | ||
| Standard quantity per carton | 20pcs | ||
| Standard carton measurement | 450mm x 325mm x 340mm | </td | |
| Standard carton gross weight | UT261A: 9.8kg; UT261B: 10.3kg |
