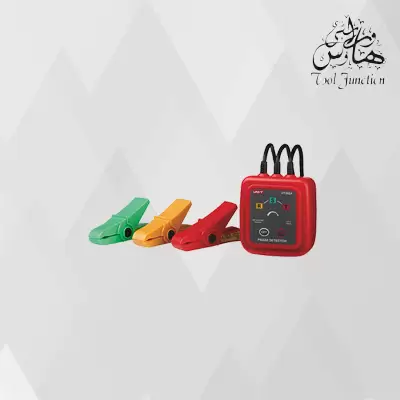

UT262A Non-Contact Phase Detector

9,950

UT262 series are clamp type non-contact phase detectors. Users do not need to be in contact with high-voltage, reducing risk of electrical shock to electricans and other professional personnels. Beside phase sequence detection, UT262 series can also be used for live wire detection, simple electrical inspection, phase identification, missing-phase judgment, and wire breaker searching. It is a perfect tool for phase sequence detection, motor mounting, and wires maintenance.

9,950

Buy Now
Add to cart

Weight 0.86 kg

Basic Features

14 / 100

1. Clamp opening 1.6~16mm
2. Power on indication
3. Auto power off (Automatically switch off after three minutes)
4. LED, buzzer indication

Tech. Spec

14 / 100

Specifications

Range

UT262A

Phase sequence [Positive phase] four phase lights on clockwise, and beeping sound
[Negative phase] four phase lights on anti-clockwise, and solid sound
Missing phase detection R-S or S-T light off
Live power detection R-S or S-T light on
Circuit break detection R-S or S-T light off
Voltage detection R-S or S-T light on
AC voltage range (V) 70V~600V
Frequency range (Hz) 40Hz~70Hz

General Characterisitics

Power 1.5V battery (R6) x 2
Product color Red and grey
Product net weight 180g
Product size 70mm x 75mm x 30mm
Standard accessories Batteries
Standard individual packing Blister, English manual
Standard quantity per carton 10pcs
Standard carton measurement 670mm x 315mm x 190mm
Standard carton gross weight 4.6kg

Models & Comparison

14 / 100

Specifications

Range

UT262A

UT262B

Phase sequence [Positive phase] four phase lights on clockwise, and beeping sound
[Negative phase] four phase lights on anti-clockwise, and solid sound
Missing phase detection R-S or S-T light off
Live power detection R-S or S-T light on
Circuit break detection R-S or S-T light off
Voltage detection R-S or S-T light on
AC voltage range (V) 70V~600V 70V~600V
Frequency range (Hz) 40Hz~70Hz

General Characterisitics

Power 1.5V battery (R6) x 2
Product color Red and grey
Product net weight 180g
Product size 70mm x 75mm x 30mm
Standard accessories Batteries
Standard individual packing Blister, English manual
Standard quantity per carton 10pcs
Standard carton measurement 670mm x 315mm x 190mm
Standard carton gross weight 4.6kg
