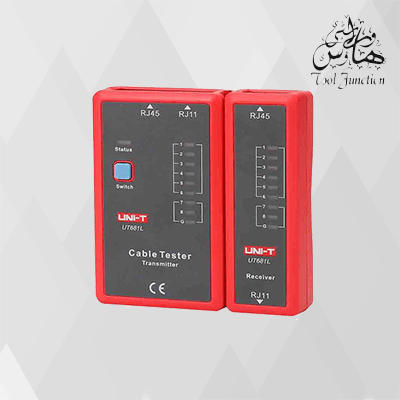

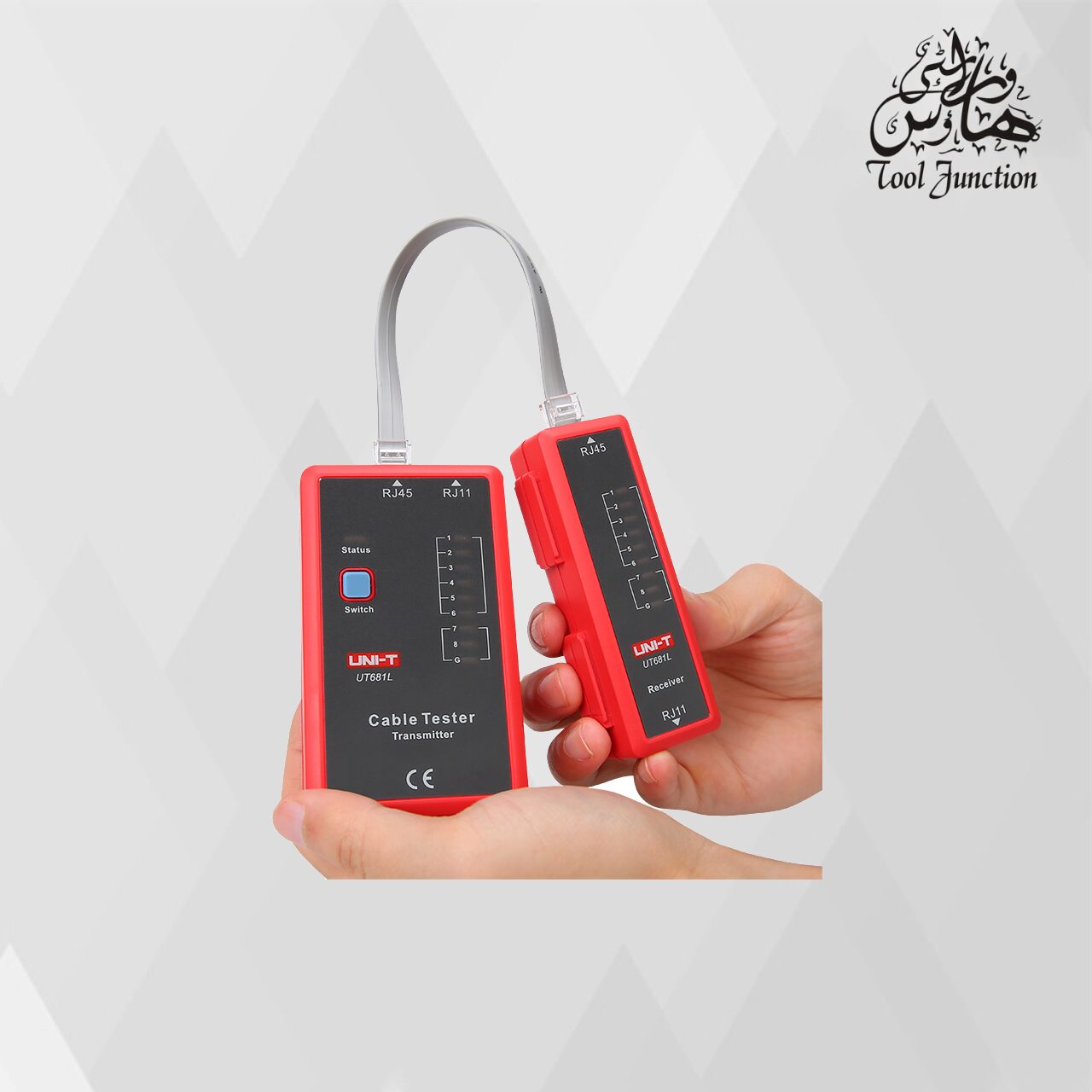

UT681L Cable Tester

1,750

​UT681 series handheld cable testers can be used to fast check if Ethernet/telephone/BNC/HDMI cables are conducting, short-circuit, crossed or open-circuit. They are ideal tools for technicians to install, maintain and inspect week current system circuit.

1,750

Buy Now
Add to cart

Basic Features

1. LED status display
2. Auto check of open/short/crossovercircuit
3. Single key operation
4. Manual/auto power off (after10-minute inactivity)
5. Low battery indication
6. Power supplied by 9V battery

Tech. Spec

Specifications

Range

UT681L

Description

Test function To test for: RJ45/RJ11
Fast test mode LED1~LED8, LED_G
Slow test mode LED1~LED8, LED_G
To test for the case of short circuit, crossover, open circuit, etc.
Ethernet cable: shielded/ unshielded test
Manual shutdown function
Auto shutdown function No operation within 10 minutes, the device will shut down automatically
Single key operation
Power supply: 9V battery
Low battery detection Less than 7.2V
Application environment Operating temperature: 0~40℃
Storage temperature: -10~50℃
Operating humidity: 20~80%RH
Storage humidity: 10~90%RH
Altitude: ≤2000 meters
Safety standard CE EN61326-1: 2013; EN61326-2-2: 2013

General Characterisitics

Product color Red and grey
Product net weight Transmitter: 87g; receiver: 51g
Product size Transmitter: 102mm x 62mm x 28mm; receiver: 102mm x 37mm x 28mm
Standard accessories 9V battery
Standard individual packing Gift box, English manual
Standard quantity per carton 40pcs
Standard carton measurement 455mm x 410mm x 225mm
Standard carton gross weight 6.4kg

Models & Comparison

Specifications

Range

UT681L

UT681C

UT681HDMI

Description

Test function To test for: RJ45/RJ11
To test for: RJ45/RJ11/BNC Need to use RJ45 to BNC adaptor
To test for: HDMI/MINI-HDMI
Fast test mode LED1~LED8, LED_G
Slow test mode LED1~LED8, LED_G
Scan test mode LED1~LED19, LED_S
Full display test mode LED1~LED19, LED_S
To test for the case of short circuit, crossover, open circuit, etc.
Ethernet cable: shielded/ unshielded test
Manual shutdown function
Auto shutdown function No operation within 10 minutes, the device will shut down automatically
Single key operation
Power supply: 9V battery
Low battery detection Less than 7.2V
Application environment Operating temperature: 0~40℃
Storage temperature: -10~50℃
Operating humidity: 20~80%RH
Storage humidity: 10~90%RH
Altitude: ≤2000 meters
Safety standard CE EN61326-1: 2013; EN61326-2-2: 2013

General Characterisitics

Product color Red and grey
Product net weight Transmitter: 87g; receiver: 51g
Product size Transmitter: 102mm x 62mm x 28mm; receiver: 102mm x 37mm x 28mm
Standard accessories 9V battery, BNC to RJ45 adaptor (UT681C)
Standard individual packing Gift box, English manual
Standard quantity per carton 40pcs
Standard carton measurement 455mm x 410mm x 225mm
Standard carton gross weight UT681L: 6.4kg; UT681C: 8.7kg; UT681HDMI: 9.5kg
