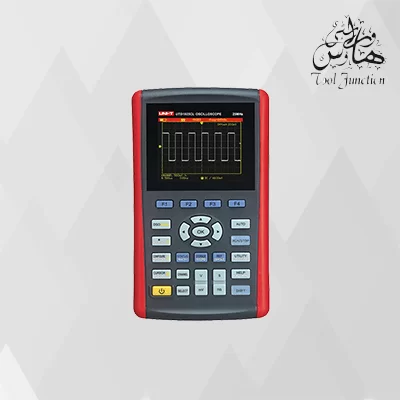

UNI-T Utd1025Cl Handheld Digital Storage Oscilloscope1.5
UNI-T Utd1025Cl Handheld Digital Storage Oscilloscope1.5
₨105,800
UTD1000L series are economical instruments with the functions of oscilloscope and multimeter. They are ergonomic, lightweight, universal instruments designed for engineers.
Buy Now
Add to cart
| Weight | 1 kg |
|---|
Basic Features
UTD1000L series are economical instruments with the functions of oscilloscope and multimeter. They are ergonomic, lightweight, universal instruments designed for engineers.
Tech. Spec
Specifications | ||||
Model | UTD1025CL | |||
| Bandwidth | 25MHz | |||
| Channels | 1 | |||
| Sampling rate | 250MS/s | |||
| Rise time | ≤14ns | |||
| Memory depth | 12kpts | |||
| Vertical scale (V/div) | 5mV/div~20V/div | |||
| Time base scale (s/div) | 10ns/div~50s/div | |||
| Storage methods | Setup, waveform, bitmap | |||
| Trigger types | Edge, pulse width, video, slope | |||
| Interface | Mini USB | |||
Multimeter Specifications | Range | Accuracy | ||
| DC voltage (V) | 400mV/ 4V/ 40V/ 400V | ±(1%+5) | ||
| AC voltage (V) | 400mV/ 4V/ 40V/ 400V | ±(1.2%+5) | ||
| DC current (A) | 400μA/ 4000μA | ±(1.2%+5) | ||
| 40mA/ 4000mA | ±(1%+5) | |||
| 4A | ±(1.5%+5) | |||
| AC current (A) | 400μA/ 4000μA | ±(2%+5) | ||
| 40mA/ 4000mA | ±(1.5%+5) | |||
| 4A | ±(2.5%+5) | |||
| Resistance (Ω) | 400Ω/4kΩ/40kΩ/400kΩ/4MΩ | ±(1.2%+5) | ||
| 40MΩ | ±(1.5%+5) | |||
| Capacitance (F) | 51.2nF/512nF/5.12μF/51.2μF/100μF | ±(3%+5) | ||
| Display count | 4000 | |||
General Characteristics | ||||
| Power | Li-ion battery: 7.4V 3600mAh; DC adapter: 100V~240V, 50/60Hz input, 9V/4A output | |||
| Display | 3.5 inches 64k TFT LCD, 320 x 240 | |||
| Product color | Red and grey | |||
| Product net weight | 0.9kg | |||
| Product size | 199mm x 118 mm x 49mm | |||
| Standard accessories | Probe x 1 (1x, 10x switchable), power cord, adaptor, USB interface cable, current-to-voltage convertor, PC software CD, test leads | |||
| Standard individual packing | Carton box, carrying bag | |||
| Standard quantity per carton | 2pcs | |||
| Standard carton measurement | 305mm x 190mm x 330mm | |||
| Standard carton gross weight | UTD1000CL: 4.6kg; UTD1000CL: 3.3kg | |||
Models & Comparison
Specifications | ||||
Model | UTD1025CL | UTD1050CL | UTD1025DL | UTD1050DL |
| Bandwidth | 25MHz | 50MHz | 25MHz | 50MHz |
| Channels | 1 | 2 | ||
| Sampling rate | 250MS/s | |||
| Rise time | ≤14ns | ≤7ns | ≤14ns | ≤7ns |
| Memory depth | 12kpts | |||
| Vertical scale (V/div) | 5mV/div~20V/div | |||
| Time base scale (s/div) | 10ns/div~50s/div | 5ns/div~50s/div | 10ns/div~50s/div | 5ns/div~50s/div |
| Storage methods | Setup, waveform, bitmap | |||
| Trigger types | Edge, pulse width, video, slope | |||
| Interface | Mini USB | |||
Multimeter Specifications | Range | Accuracy | ||
| DC voltage (V) | 400mV/ 4V/ 40V/ 400V | ±(1%+5) | ||
| AC voltage (V) | 400mV/ 4V/ 40V/ 400V | ±(1.2%+5) | ||
| DC current (A) | 400μA/ 4000μA | ±(1.2%+5) | ||
| 40mA/ 4000mA | ±(1%+5) | |||
| 4A | ±(1.5%+5) | |||
| AC current (A) | 400μA/ 4000μA | ±(2%+5) | ||
| 40mA/ 4000mA | ±(1.5%+5) | |||
| 4A | ±(2.5%+5) | |||
| Resistance (Ω) | 400Ω/4kΩ/40kΩ/400kΩ/4MΩ | ±(1.2%+5) | ||
| 40MΩ | ±(1.5%+5) | |||
| Capacitance (F) | 51.2nF/512nF/5.12μF/51.2μF/100μF | ±(3%+5) | ||
| Display count | 4000 | |||
General Characteristics | ||||
| Power | Li-ion battery: 7.4V 3600mAh; DC adapter: 100V~240V, 50/60Hz input, 9V/4A output | |||
| Display | 3.5 inches 64k TFT LCD, 320 x 240 | |||
| Product color | Red and grey | |||
| Product net weight | 0.9kg | |||
| Product size | 199mm x 118 mm x 49mm | |||
| Standard accessories | Probe x 1 (1x, 10x switchable) (UTD1000CL), power cord, adaptor, Probe x 2 (1x, 10x switchable) (UTD1000DL), USB interface cable, current-to-voltage convertor, PC software CD, test leads | |||
| Standard individual packing | Carton box, carrying bag | |||
| Standard quantity per carton | 2pcs | |||
| Standard carton measurement | 305mm x 190mm x 330mm | |||
| Standard carton gross weight | UTD1000CL: 4.6kg; UTD1000CL: 3.3kg | |||
