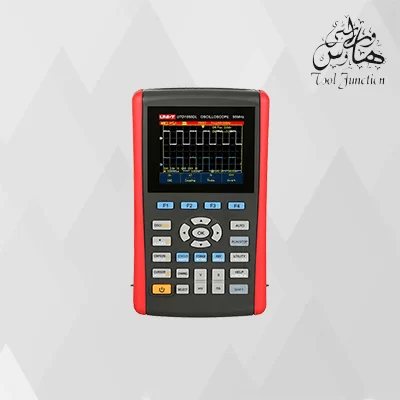

UNI-T Utd1050Dl Handheld Digital Storage Oscilloscope

120,750

UTD1000L series are economical instruments with the functions of oscilloscope and multimeter. They are ergonomic, lightweight, universal instruments designed for engineers.

120,750

Buy Now
Add to cart
Weight1 kg

Basic Features

14 / 100

UTD1000L series are economical instruments with the functions of oscilloscope and multimeter. They are ergonomic, lightweight, universal instruments designed for engineers.

Tech. Spec

14 / 100

Specifications

Model

UTD1050DL

Bandwidth50MHz
Channels2
Sampling rate250MS/s
Rise time≤7ns
Memory depth12kpts
Vertical scale (V/div)5mV/div~20V/div
Time base scale (s/div)5ns/div~50s/div
Storage methodsSetup, waveform, bitmap
Trigger typesEdge, pulse width, video, slope
InterfaceMini USB

Multimeter Specifications

Range

Accuracy

DC voltage (V)400mV/ 4V/ 40V/ 400V±(1%+5)
AC voltage (V)400mV/ 4V/ 40V/ 400V±(1.2%+5)
DC current (A)400μA/ 4000μA±(1.2%+5)
40mA/ 4000mA±(1%+5)
4A±(1.5%+5)
AC current (A)400μA/ 4000μA±(2%+5)
40mA/ 4000mA±(1.5%+5)
4A±(2.5%+5)
Resistance (Ω)400Ω/4kΩ/40kΩ/400kΩ/4MΩ±(1.2%+5)
40MΩ±(1.5%+5)
Capacitance (F)51.2nF/512nF/5.12μF/51.2μF/100μF±(3%+5)
Display count4000

General Characteristics

PowerLi-ion battery: 7.4V 3600mAh; DC adapter: 100V~240V, 50/60Hz input, 9V/4A output
Display3.5 inches 64k TFT LCD, 320 x 240
Product colorRed and grey
Product net weight0.9kg
Product size199mm x 118 mm x 49mm
Standard accessoriesPower cord, adaptor, Probe x 2 (1x, 10x switchable), USB interface cable, current-to-voltage convertor, PC software CD, test leads
Standard individual packingCarton box, carrying bag
Standard quantity per carton2pcs
Standard carton measurement305mm x 190mm x 330mm
Standard carton gross weight3.3kg

General Characteristics

PowerLi-ion battery: 7.4V 3600mAh; DC adapter: 100V~240V, 50/60Hz input, 9V/4A output
Display3.5 inches 64k TFT LCD, 320 x 240
Product colorRed and grey
Product net weight0.9kg
Product size199mm x 118 mm x 49mm
Standard accessoriesPower cord, adaptor, Probe x 2 (1x, 10x switchable) (UTD1000DL), USB interface cable, current-to-voltage convertor, PC software CD, test leads
Standard individual packingCarton box, carrying bag
Standard quantity per carton2pcs
Standard carton measurement305mm x 190mm x 330mm
Standard carton gross weight3.3kg

Models & Comparison

14 / 100



Specifications

Model

UTD1025CL

UTD1050CL

UTD1025DL

UTD1050DL

Bandwidth25MHz50MHz25MHz50MHz
Channels12
Sampling rate250MS/s
Rise time≤14ns≤7ns≤14ns≤7ns
Memory depth12kpts
Vertical scale (V/div)5mV/div~20V/div
Time base scale (s/div)10ns/div~50s/div5ns/div~50s/div10ns/div~50s/div5ns/div~50s/div
Storage methodsSetup, waveform, bitmap
Trigger typesEdge, pulse width, video, slope
InterfaceMini USB

Multimeter Specifications

Range

Accuracy

DC voltage (V)400mV/ 4V/ 40V/ 400V±(1%+5)
AC voltage (V)400mV/ 4V/ 40V/ 400V±(1.2%+5)
DC current (A)400μA/ 4000μA±(1.2%+5)
40mA/ 4000mA±(1%+5)
4A±(1.5%+5)
AC current (A)400μA/ 4000μA±(2%+5)
40mA/ 4000mA±(1.5%+5)
4A±(2.5%+5)
Resistance (Ω)400Ω/4kΩ/40kΩ/400kΩ/4MΩ±(1.2%+5)
40MΩ±(1.5%+5)
Capacitance (F)51.2nF/512nF/5.12μF/51.2μF/100μF±(3%+5)
Display count4000

General Characteristics

PowerLi-ion battery: 7.4V 3600mAh; DC adapter: 100V~240V, 50/60Hz input, 9V/4A output
Display3.5 inches 64k TFT LCD, 320 x 240
Product colorRed and grey
Product net weight0.9kg
Product size199mm x 118 mm x 49mm
Standard accessoriesProbe x 1 (1x, 10x switchable) (UTD1000CL), power cord, adaptor,
Probe x 2 (1x, 10x switchable) (UTD1000DL), USB interface cable,
current-to-voltage convertor, PC software CD, test leads
Standard individual packingCarton box, carrying bag
Standard quantity per carton2pcs
Standard carton measurement305mm x 190mm x 330mm
Standard carton gross weightUTD1000CL: 4.6kg; UTD1000CL: 3.3kg
