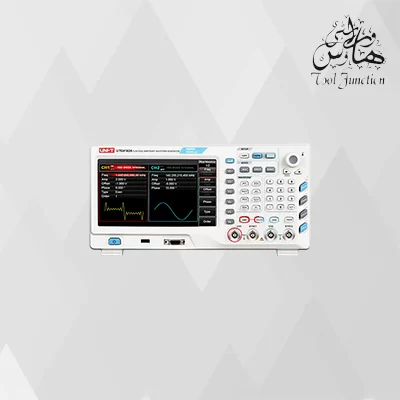

UNI-T Utg4162A Function/Arbitrary Waveform Generator
UNI-T Utg4162A Function/Arbitrary Waveform Generator
₨345,000
UTG4000A series is a multi-functional signal generator combines with function generator, arbitrary waveform generator, pulse generator, harmonic generator, analog/digital modulator, frequency counter and other functions; It has equal performance dual-channel design, making sample rate up to 500MS/s, maximum arbitrary wave length up to 32Mpts. It has 7GB nonvolatile waveform storage, domestically first optional digital signal generator output module, 8 inches wide screen LCD displays, humanized interface design and reasonable function keyboard layout, which give users a more personalized
Buy Now
Add to cart
| Weight | 1.5 kg |
|---|
Features
Rich modulation functions
Rich analog and digital modulation types:
AM, FM, PM, ASK, FSK, PSK, BPSK, QPSK, OSK, PWM, SUM, QAM
Harmonic output function
Up to 16 harmonic output function, with specified order,
amplitude and phase of harmonics, the order of harmonics can be set.
Built-in arbitrary waveform available at any time
Built-in up to 160 arbitrary waveforms,
32Mpts arbitrary waveform memory, 7GB non-volatile waveform storage
Sweep function
Support scanning output from low frequency to high frequency or from
high frequency to low frequency.
scanning types include linear and logarithmic.
Unique digital interface
Optional digital signal output interface: SPI, IIC, UART
Tech. Spec
Specifications | |
Model | UTG4162A |
| Bandwidth | 160MHz |
| Channels | 2 |
| Sampling rate | 500MS/s |
| Waveforms | Sine, square, ramp, harmonic, pulse, noise, DC voltage, arbitrary |
| Working modes | Output on/off, continuous, modulation, sweep, burst |
| Modulations | AM, FM, PM, ASK, FSK, PSK, BPSK, QPSK, OSK, PWM, SUM, QAM |
Frequency Characteristics | |
| Sine | 1μHz~160MHz |
| Square/Pulse | 1μHz~50MHz |
| Slope | 1μHz~4MHz |
| Harmonic | 1μHz~80MHz |
| Noise (-3dB) | 160MHz bandwidth |
| Resolution | 1μHz |
Arbitrary Waveform | |
| Frequency range | 1μHz~40MHz |
| Length | 8~32Mpts |
| Vertical resolution | 16 bits |
| Min rise/fall time (typical: 1Vpp) | ＜5ns |
General Characteristics | |
| Power | 100V~240V ACrms, 50Hz/60Hz |
| Display | 8-inch TFT LCD, WVGA (800 x 480) |
| Product color | White and grey |
| Product net weight | 3.5kg |
| Product size | 336mm x 164mm x 108mm |
| Standard accessories | BNC-BNC cable x 2, USB interface cable, PC software CD, power cord |
| Standard individual packing | Carton box |
| Standard quantity per carton | 1pcs |
| Standard carton measurement | 405mm x 225mm x 265mmv |
| Standard carton gross weight | 4.8kg |
