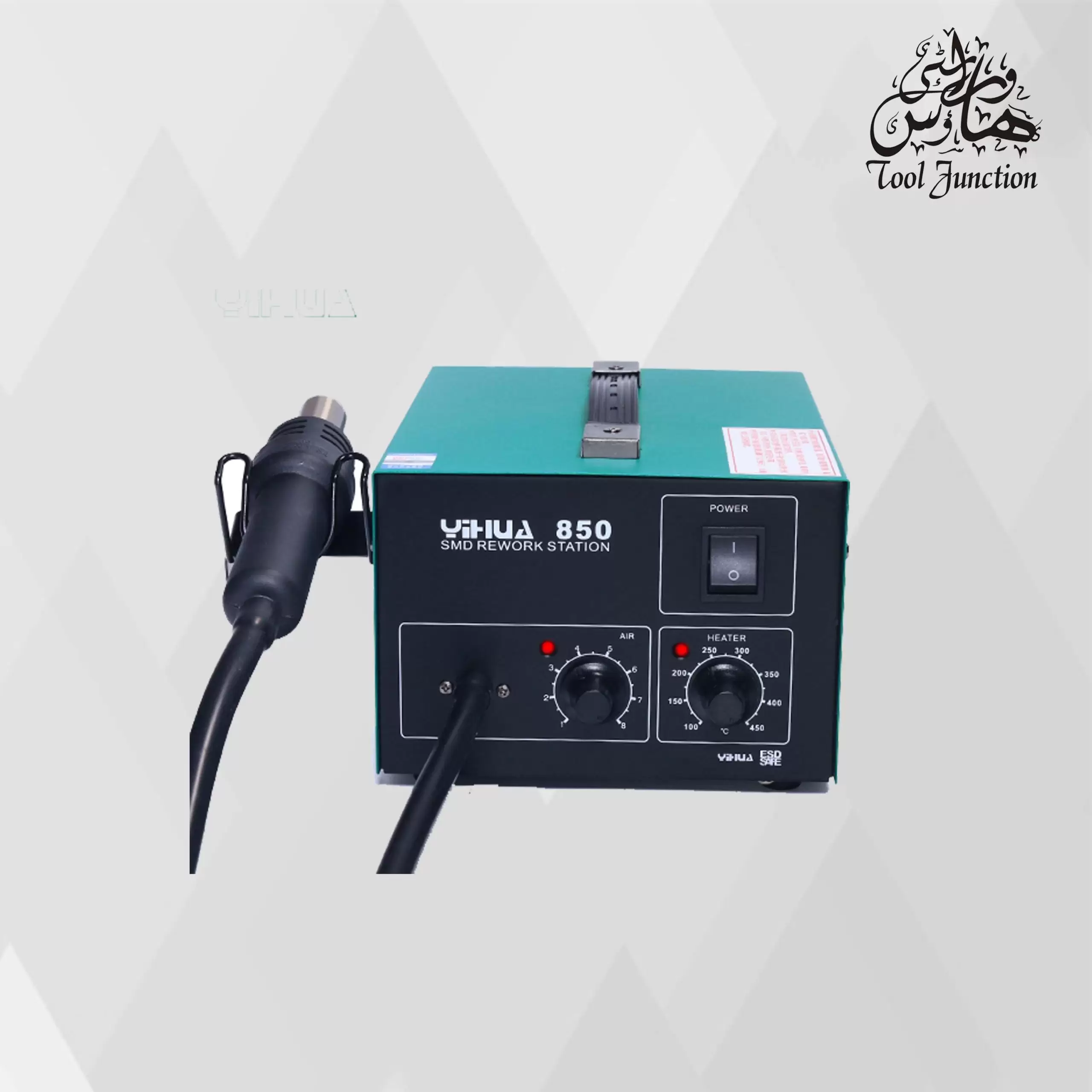

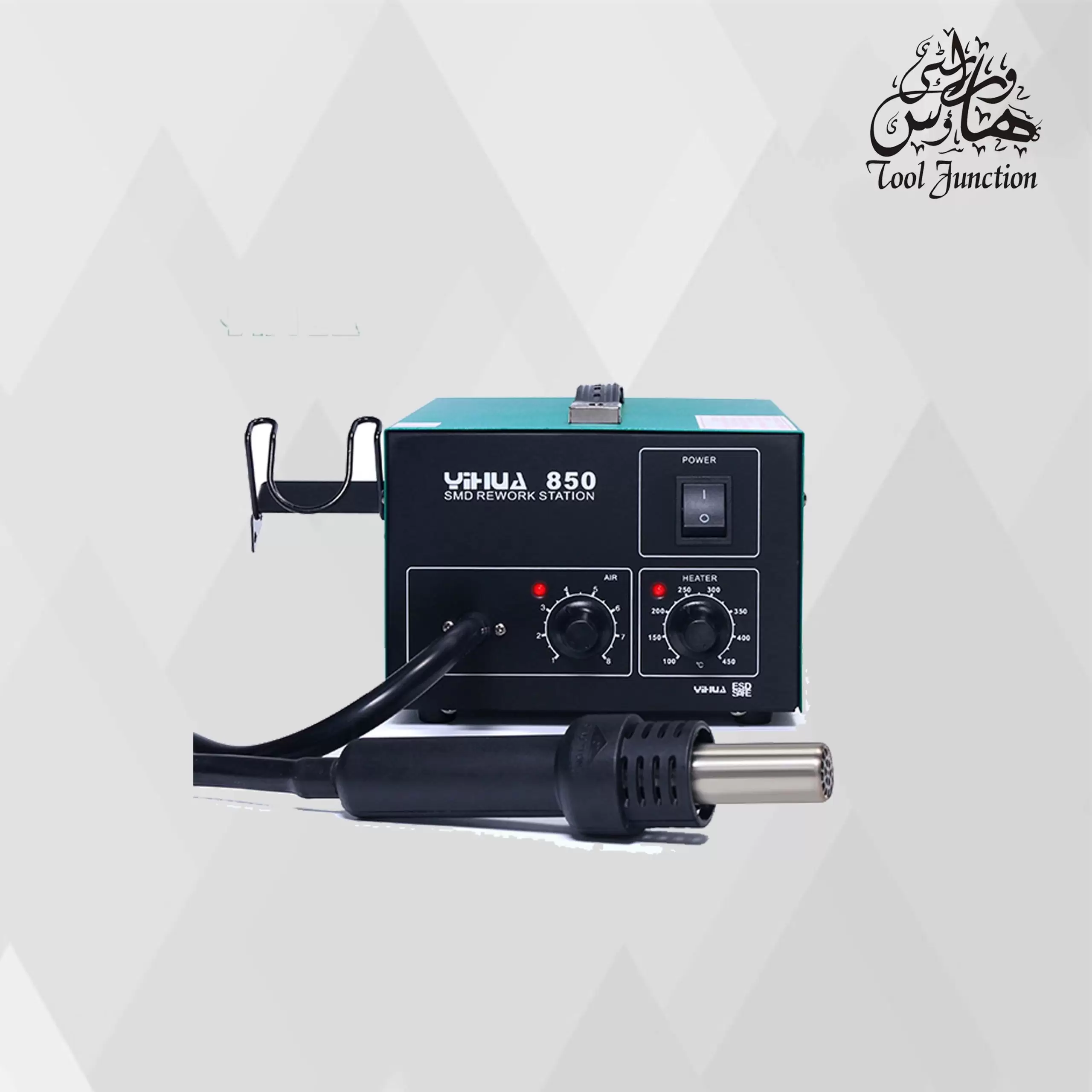

YIHUA 850 SMD REWORK STATION

Sold: 0

4,150

Ships In: 1-3 Days
Delivery Area: Nationwide
Shipped By: Variety House

* main unit + gun + power cord

* guide

* 3 nozzles

4,150

Buy Now
Add to cart

Categories:
14 / 100

Inner box size : 33*27*20.2CM
Outer carton box size: 57*34.8*62.5CM
Q’TY  6PCS/CTN
Goods net weight:  2.97KG/PC
Outer carton weight:  18.1kg/CTN

CHARACTERISTIC

14 / 100

1.Fine- control diaphragm pump is employed for powerful airflows; the smaller the nozzle of the gun, the stronger the airflow.(a) Nozzles with diameters smaller than 5 mm and normal-sized nozzle (8 mm, 10 mm, 12mm) are suitable for use, we do not recommend use with larger nozzles. Since the pressure of the air pump is large, the smaller the nozzle the stronger the force.(b) Characteristics of the diaphragm pump type airflow: large pressure and small volume (the maximum volume is 24 or 28 L/min)(c) Applicable range: The smaller the gun nozzle installed in the machine, the bigger the pressure and stronger the force, suitable for desoldering of single small soldering spots.

2.A cutting-edge ceramic-framed heating core for extremely stable and reliable performance!

3.The air gun handle wire employs a high-temperature silicone wire (undamaged when 300o soldering tip contacts silicone wire for 30 seconds)

PARAMETERS

14 / 100
Power consumption: 600W
Gun temperature: 100-450oC
Gun type: Diaphragm pump
Air flow: 24L/MIN
Gun heater material: Nickel-alloys
Gun heater resistance: 90Ω
Inner box dimension(cm): 32*27*19.8
Outer box dimension(cm): 56*34*60
Outer carton box Q’TY: 6PCS/CTN
Product weight: 2.97KG/PC
