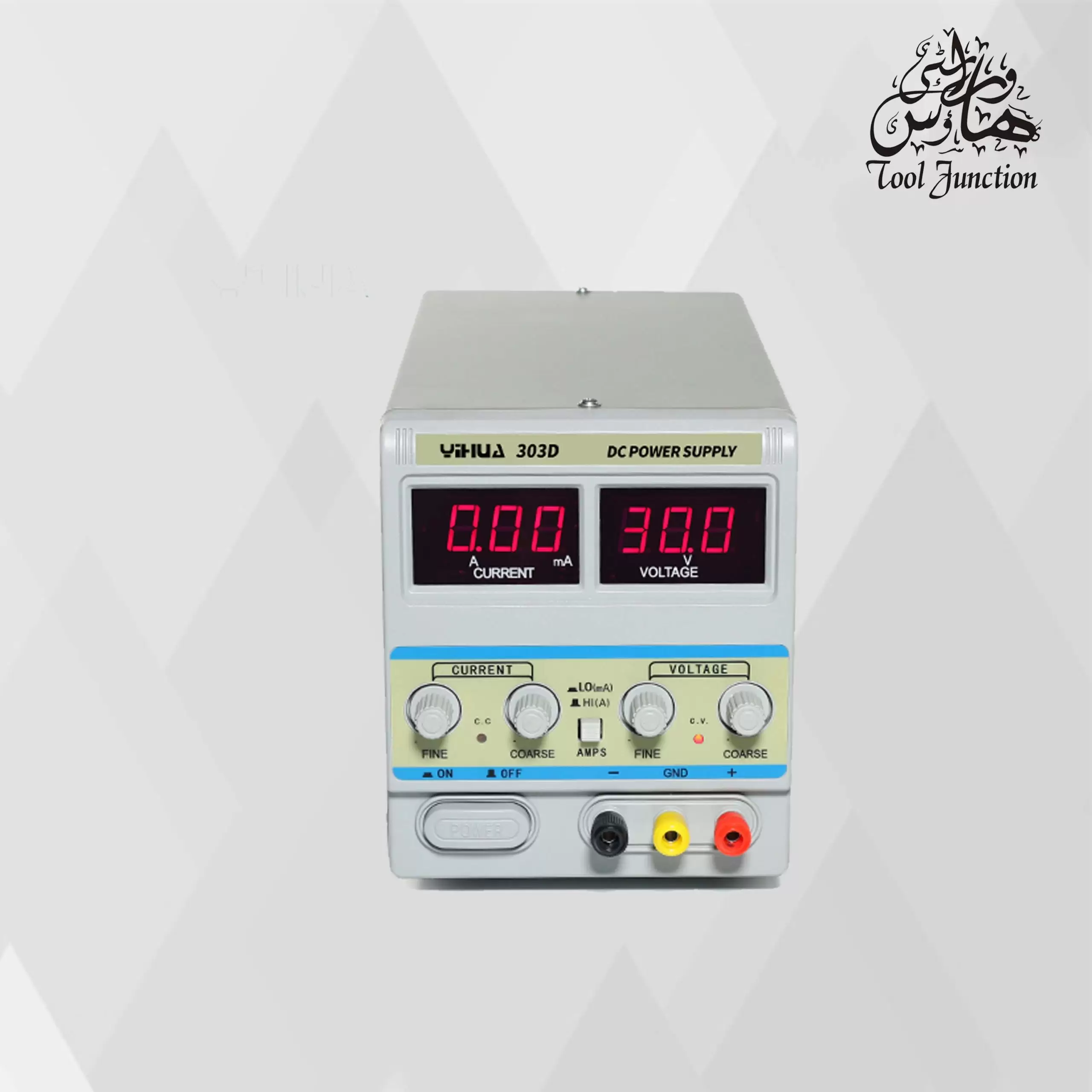

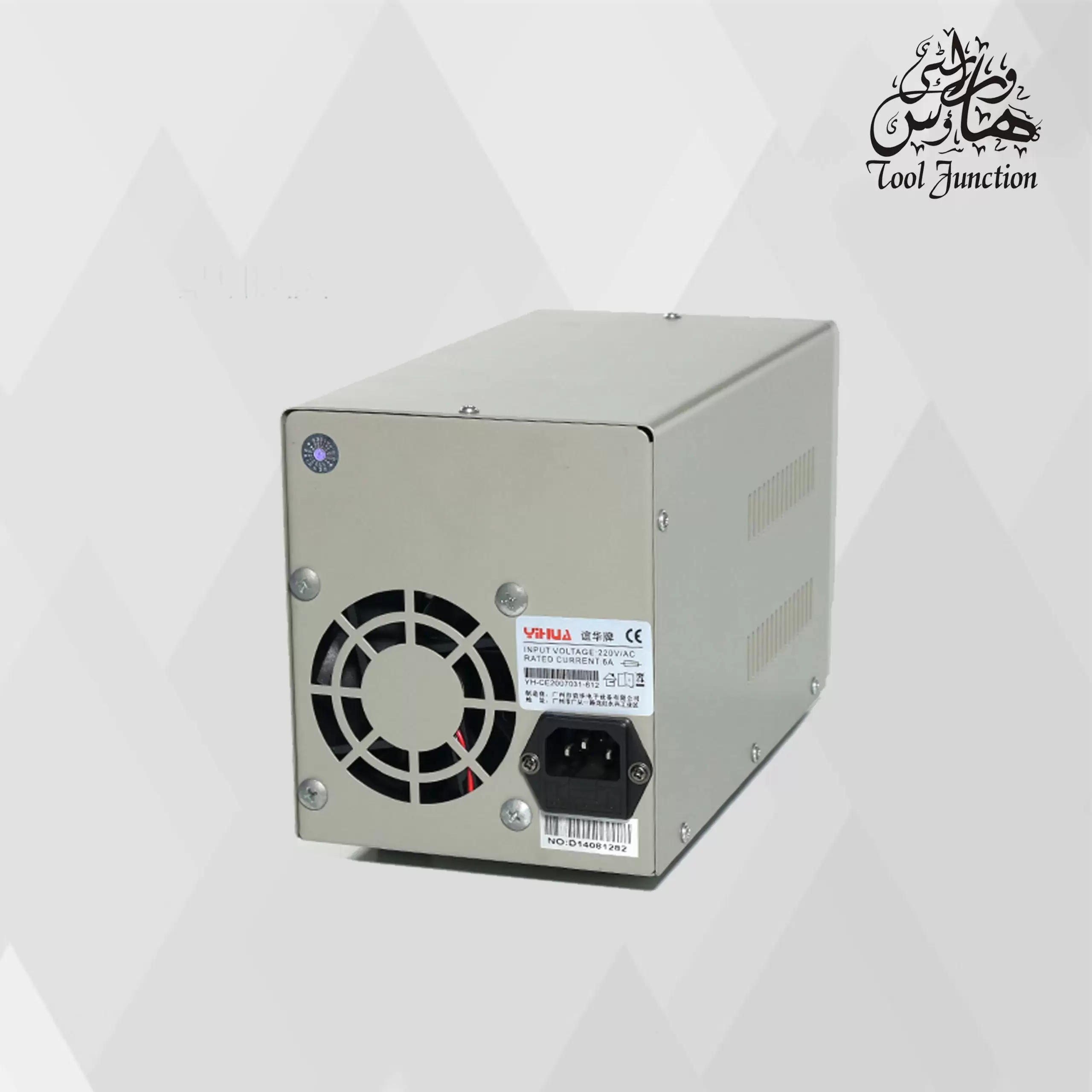

YIHUA 303D DC POWER SUPPLY

Sold: 0

6,200

Ships In: 1-3 Days
Delivery Area: Nationwide
Shipped By: Variety House

Machine :1
Manula :1
Power Cable :1

6,200

Buy Now
Add to cart

Categories:
12 / 100
  • Inner box size                    17.5*31.5*20CM
  • Outer carton box size        37*32.5*42CM
  • Q’TY                                  4PCS/CTN
  • Goods net weight              4.3KG/PC
  • Outer carton weight           17.25KG

CHARACTERISTIC

12 / 100

303D communication maintenance power supply is a single line output of stabilized high accuracy DC stabilized power supply. The output voltage and current can be adjusted continuously within the rated range. The load current has MA conversion with two settings: 0-3A and 0-99 mA. Constant voltage and constant current (CV/CC), automatic switching of working modes. Double digital display shows output voltage and current independently. Several protection functions include current limitation, voltage reduction, short circuit protection, over-temperature protection, etc. The design is applied to production line of the plant, maintenance, laboratories and is also a necessary device for the communication industry.

PARAMETERS

12 / 100
Parameters
Rated voltage AC220V  50HZ
Power of complete machine 140W
Operating environment 0~40℃  relative humidity <80%
Storage Temperature -20~80℃  relative humidity <80%
Dimensions of the machine body 17.5*31.5*20CM
Weight 4.3KG
Performance parameters
Output voltage Adjustable continuously within 0~30V
Output current Adjustable continuously within 0~3A/0-99mA (current limitation adjustment when above 0.2A)
Output power 90W
Source effect 1mV
Load effect ≤0.33%
Ripple noise ≤3mVrms(5Hz ~ 1MHz)/≤3mArms
Display accuracy 0.1V/0.1A/1mA
Protection mode Over current, short circuit, over temperature protection
Dissipation mode air cooling
