- Inner box size 36*17*11.5CM
- Outer carton box size 54.5*33*48.5CM
- Q’TY 12PCS/CTN
- Goods net weight 1.7KG/PC
- Outer carton weight 21.3KG

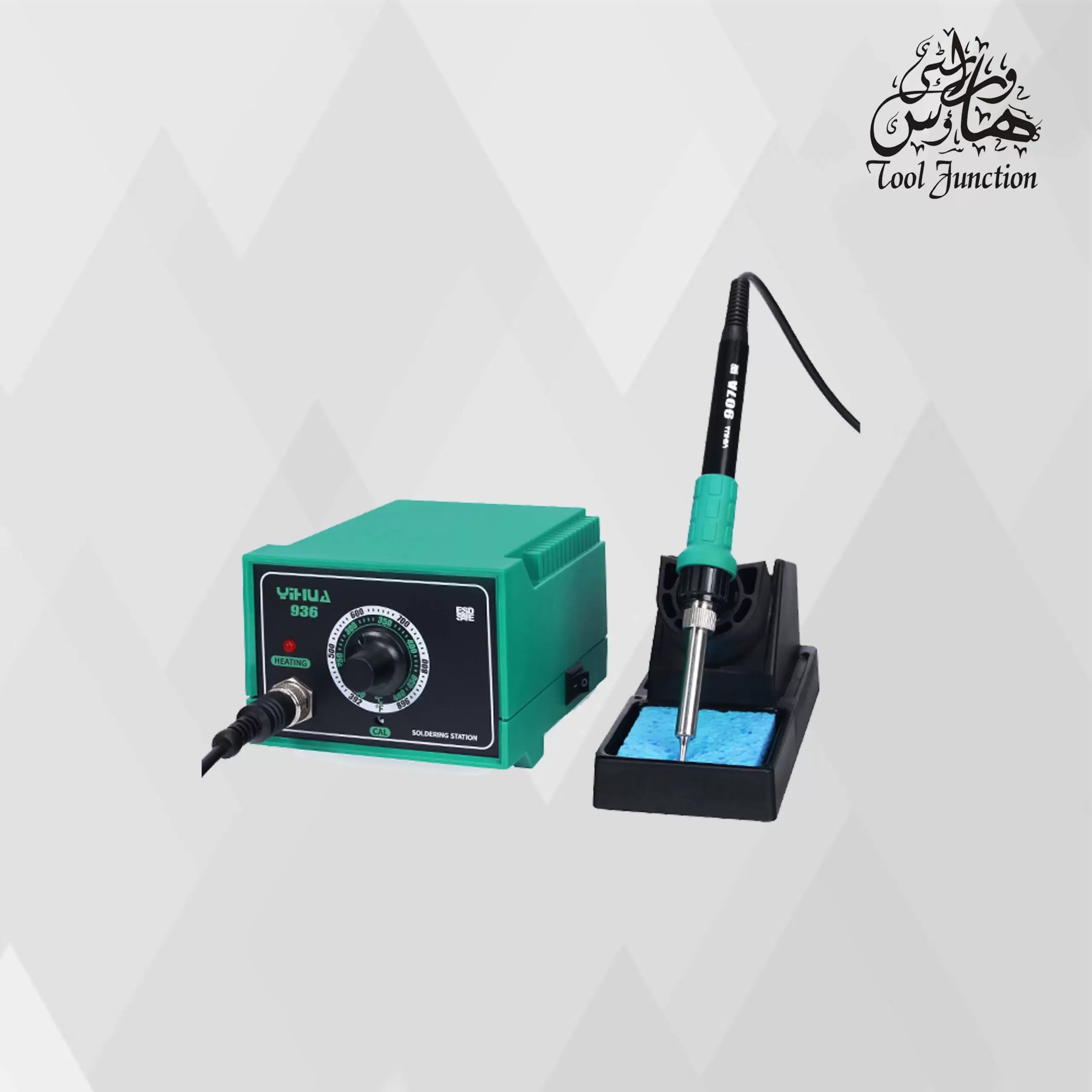

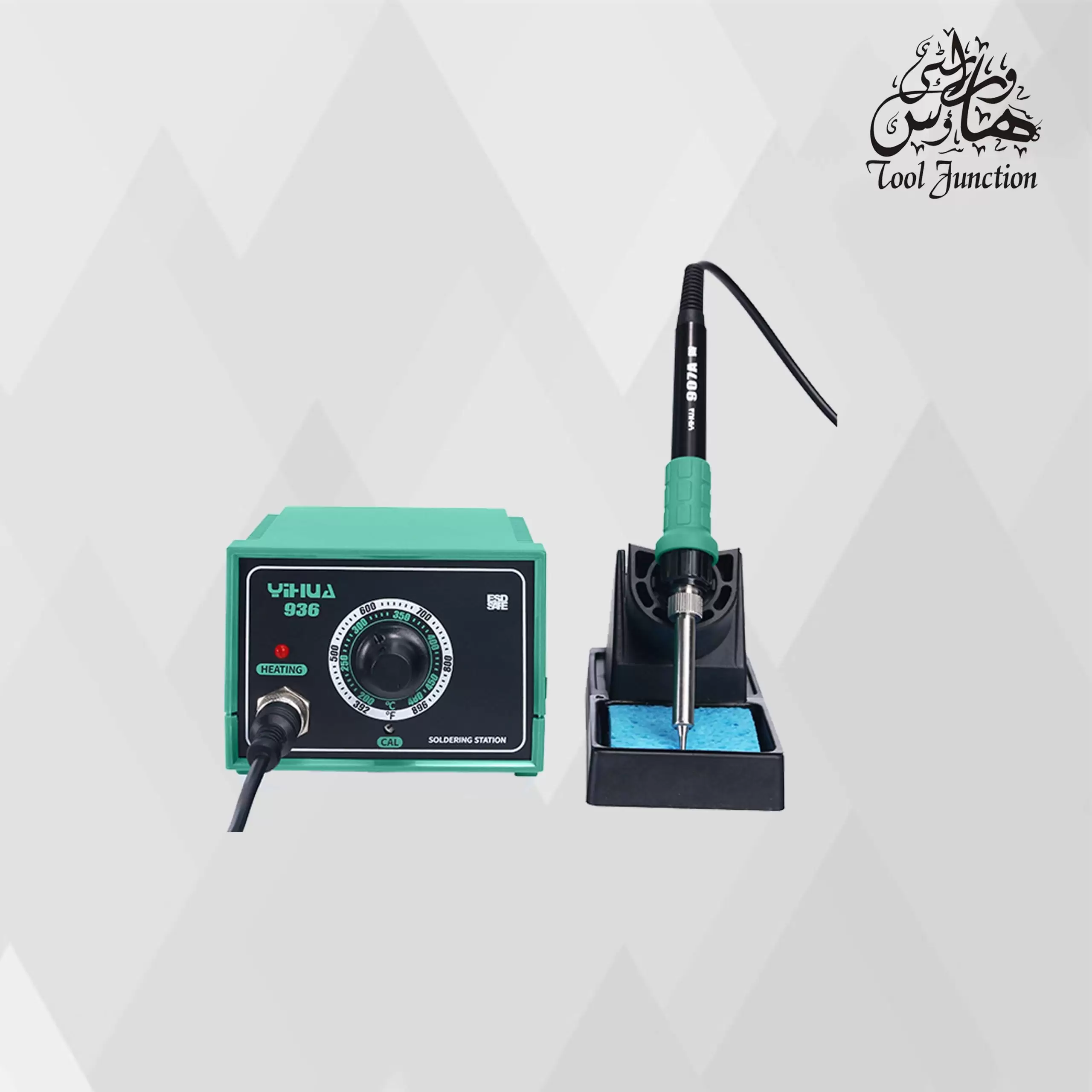

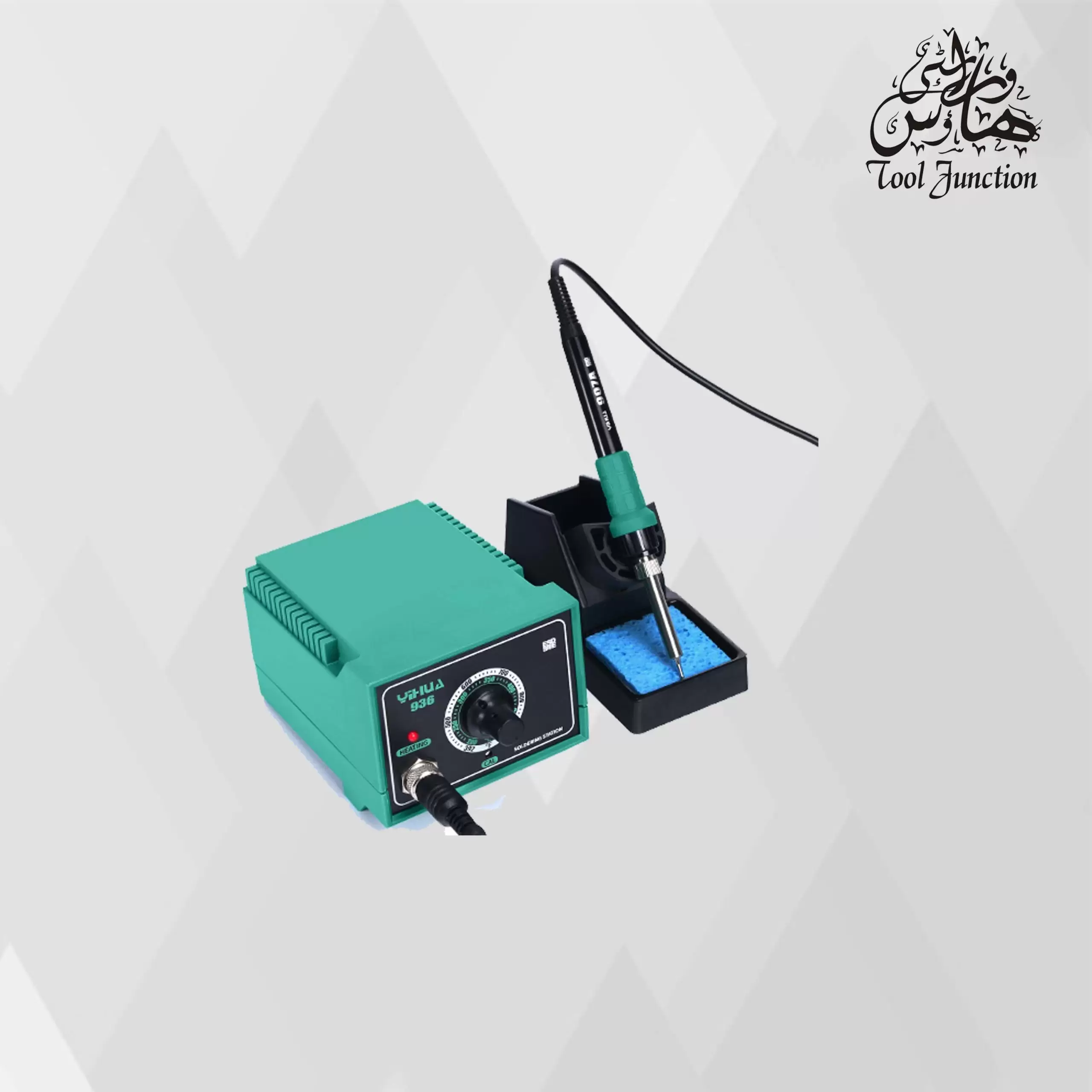

Yihua YH-936 Cell Phone Computer Repair Soldering 40W Iron Rework Soldering Station
Main unit 1set
Soldering iron handle (include iron tips and heater) 1pc
Iron holder 1pc
High temperature resistant sponge 1pc
Manual 1pc
Power plug 1pc
CHARACTERISTIC
1.YIHUA 936 features rapid heating,fast temperature compensation,High-precision and
stable temperature control, this can effectively prevents cold solder joints.
2.An anti-static design effectively prevents damage to delicate components;
3.Our equipment applies the high quality metal heater which will not be twisted off and longer life.
4.Employs new solid-mold manufacturing processes, withstanding voltage and drop damage
PARAMETERS
MODEL | 936 |
Rated Power consumption | 40W |
Temperature Range | 200°C~480°C |
Temperature stability | ±10°C (static) |
Heating elements | Common heater |
Rated voltage | AC 220V±10% 50Hz |
Operating Environment | 0~40°C relative humidity<80% |
Storage Environment | -20°C ~ 80°C relative humidity<80% |
Tip-to-Ground Impedance | <2Ω |
Tip-to-Ground Voltage | <2mV |
Operating voltage | AC 26V±10% 50Hz |
Dimensions | 36*17*11.5CM |
